Xerox WorkCentre 5020 Service Documentation

July, 2007
4-67
WorkCentre 5020
REP 10.3.1
Repairs and Adjustments
Initial Issue
REP 10.3.1 IIT Carriage (SCC)
Parts List on PL 10.3
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the following parts:
• Platen Cover (PL 10.1)
• Control Panel (REP 8.3.1)
2. Remove the IIT Upper Cover (REP 10.2.1).

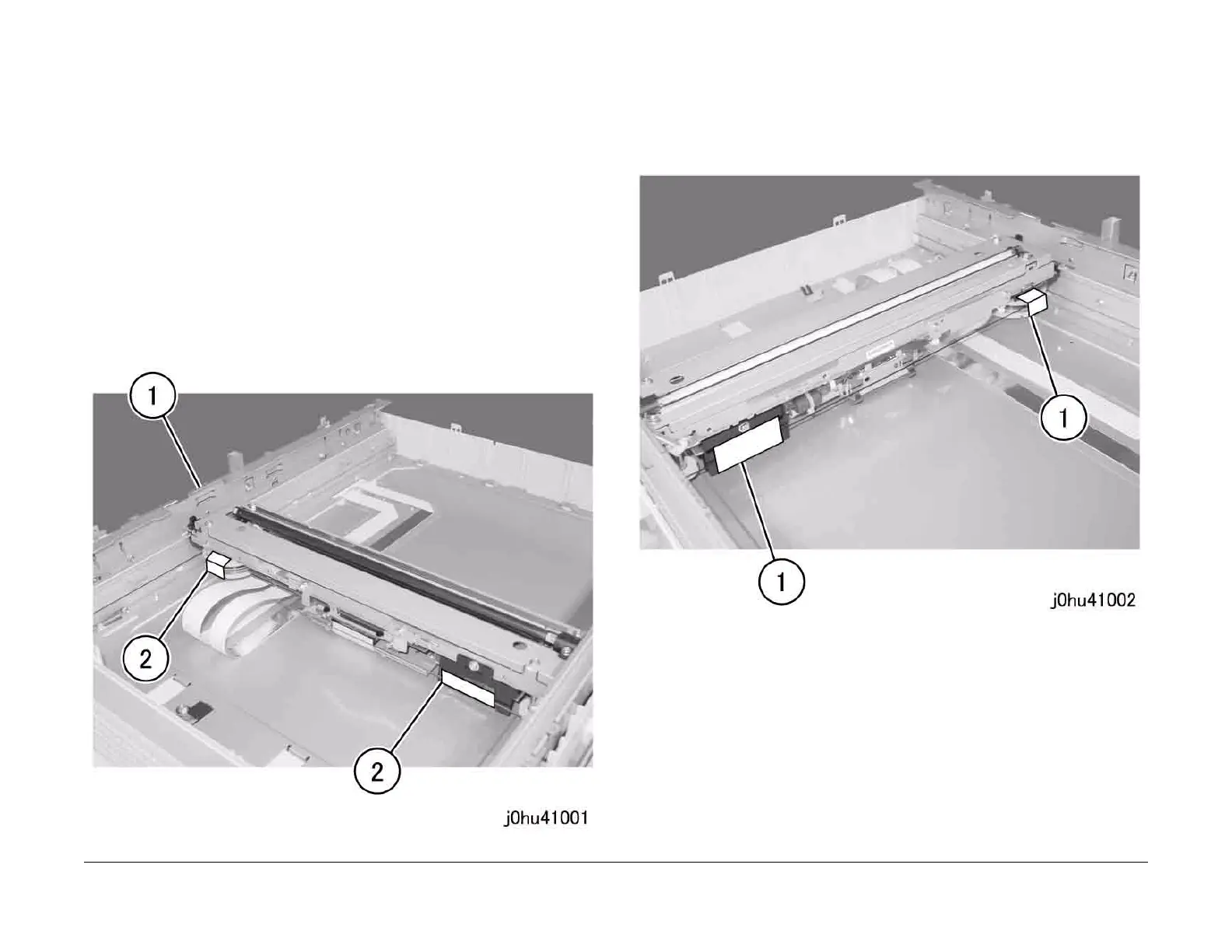

3. At the left side of the IIT Carriage, secure the Carriage Cable with tape so that it does not
come loose (Figure 1).
1 Move the IIT Carriage to the rear notch of the IIT Frame.
2 Secure the Carriage Cable with 2 pieces of tape.
Figure 1
4. At the right side of the IIT Carriage, secure the Carriage Cable with tape so that it does
not come loose (Figure 2).
1 Secure the Carriage Cable with 2 pieces of tape.
Figure 2
