Xerox WorkCentre 5020 - Error Codes: E Series

July, 2007
4-23
WorkCentre 5020
REP 4.2.2, REP 4.3.1
Repairs and Adjustments
Initial Issue
Replacement
1. To install, do the removal steps in reverse order.

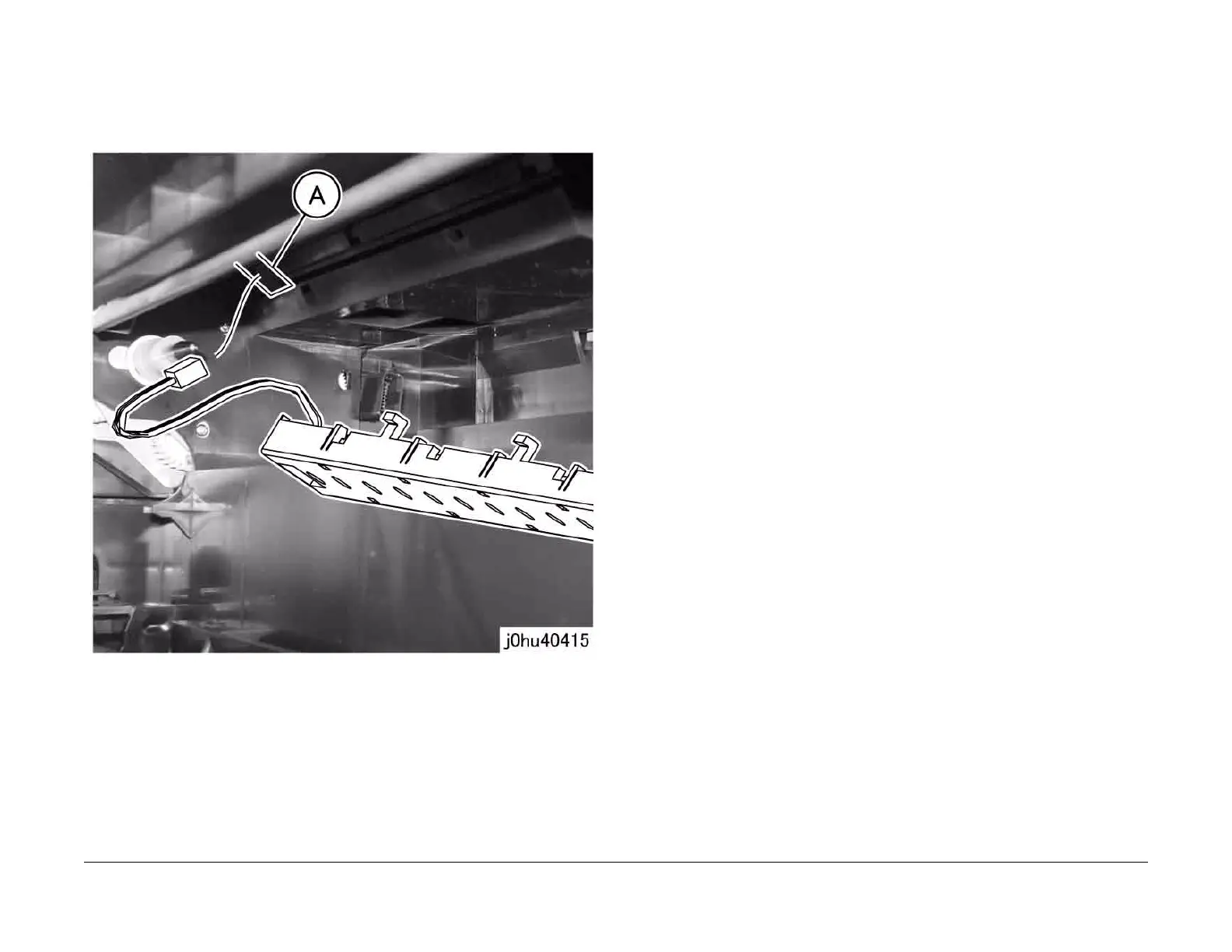

2. Insert the Connector Housing of the Erase Lamp into the square hole in the frame (Figure
3).
A Square hole
Figure 3
REP 4.3.1 Transfer Module
Parts List on PL 4.3
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Drum Cartridge (REP 4.1.1).
2. Remove the Output Tray (REP 9.1.1).
3. Remove the Rear Cover (REP 9.2.1).
4. Remove the Exit Transport (REP 6.1.1).
5. Remove the Fuser (REP 5.1.1).
