Xerox WorkCentre 5020 - Error Codes: H and J Series

July, 2007
4-24
WorkCentre 5020
REP 4.3.1
Initial Issue
Repairs and Adjustments

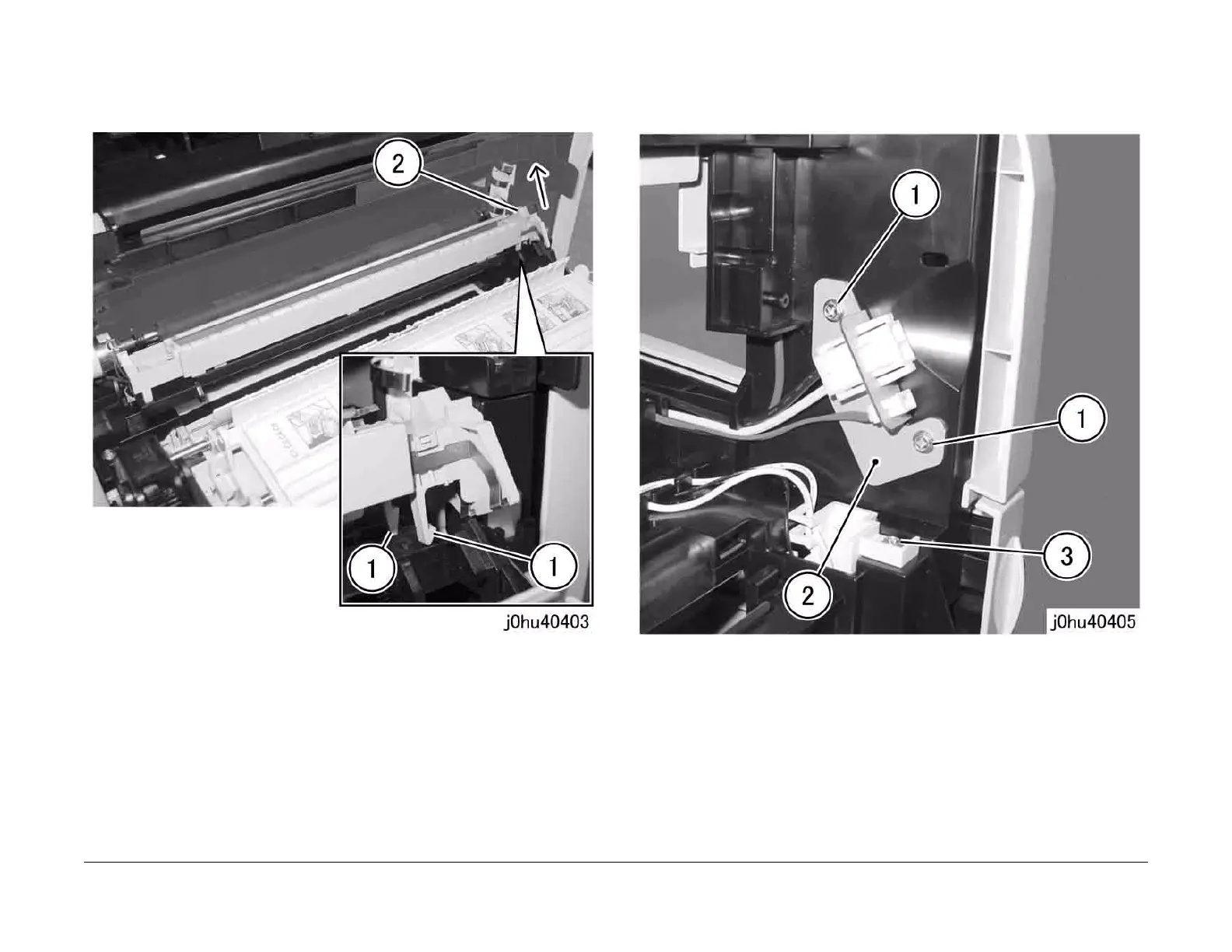

6. Remove the Transfer Corotron Housing (Figure 1).
1 Release the hooks (2).
2 Remove the Transfer Corotron Housing by pulling its front side in the direction of the
arrow.
Figure 1
7. Remove the Tapping Screws that secure the Corotron Block (Figure 2).
1 Remove the Tapping Screws (2).
2 Move the Fuser Connector Bracket.
3 Remove the Tapping Screw.
Figure 2
