REP 4.3.1
Repairs and Adjustments
Initial Issue

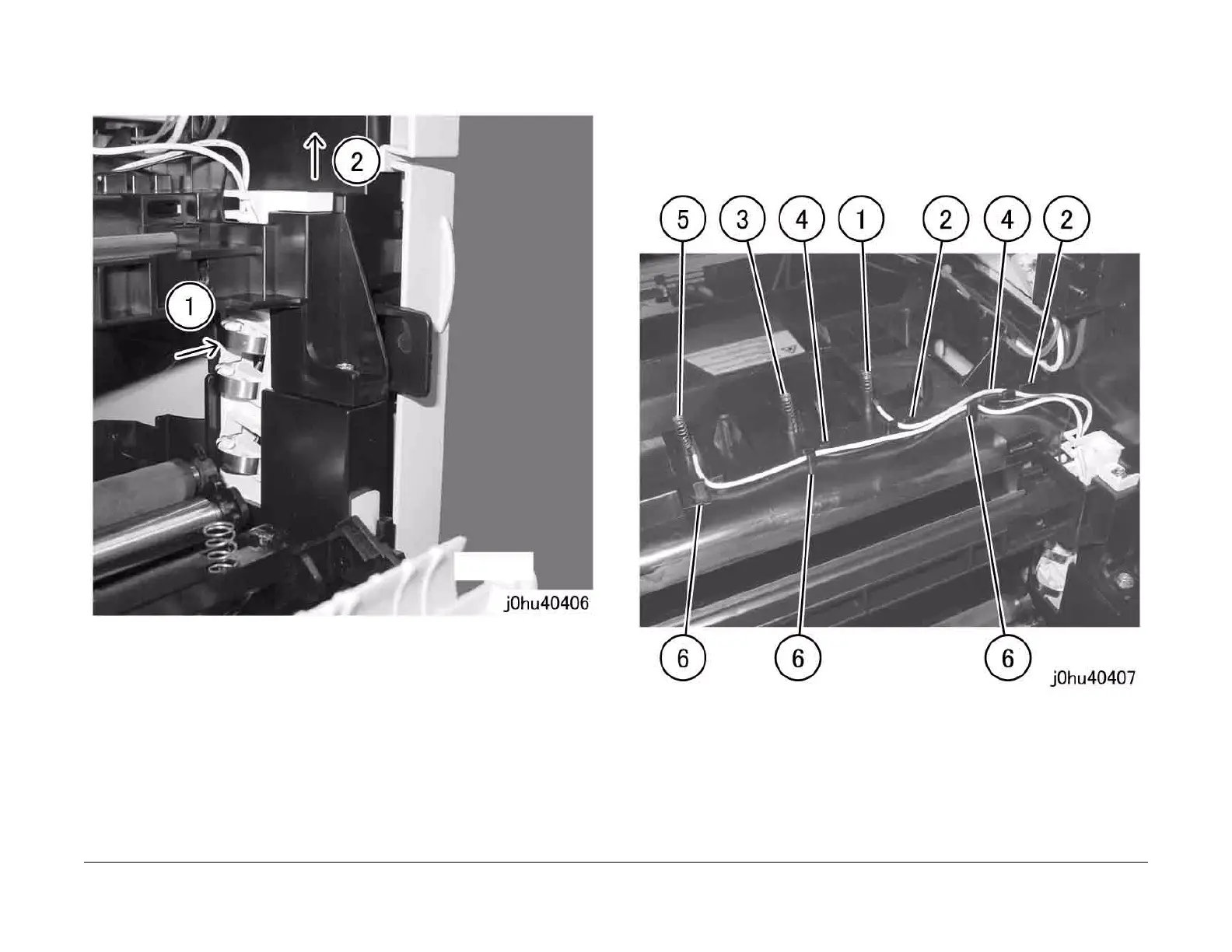

8. Remove the Corotron Block (Figure 3).
1 Press the Spring Plate.
2 Remove the Corotron Block by pulling it in the direction of arrow.
Figure 3
9. Disconnect the Corotron Block cables (Ground/Detack/Transfer) (Figure 4).
1 Disconnect the Ground Cable (white).
2 Remove the Ground Cable (white) from the guides (2).
3 Remove the Detack Cable (black).
4 Remove the Detack Cable (black) from the guides (2).
5 Disconnect the Transfer Cable (white).
6 Remove the Transfer Cable (white) from the guides (3).
Figure 4
