REP 9.2.2 Right Cover
Parts List on PL 9.2
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove the Rear Cover (REP 9.2.1).
2. Open the Front Cover.

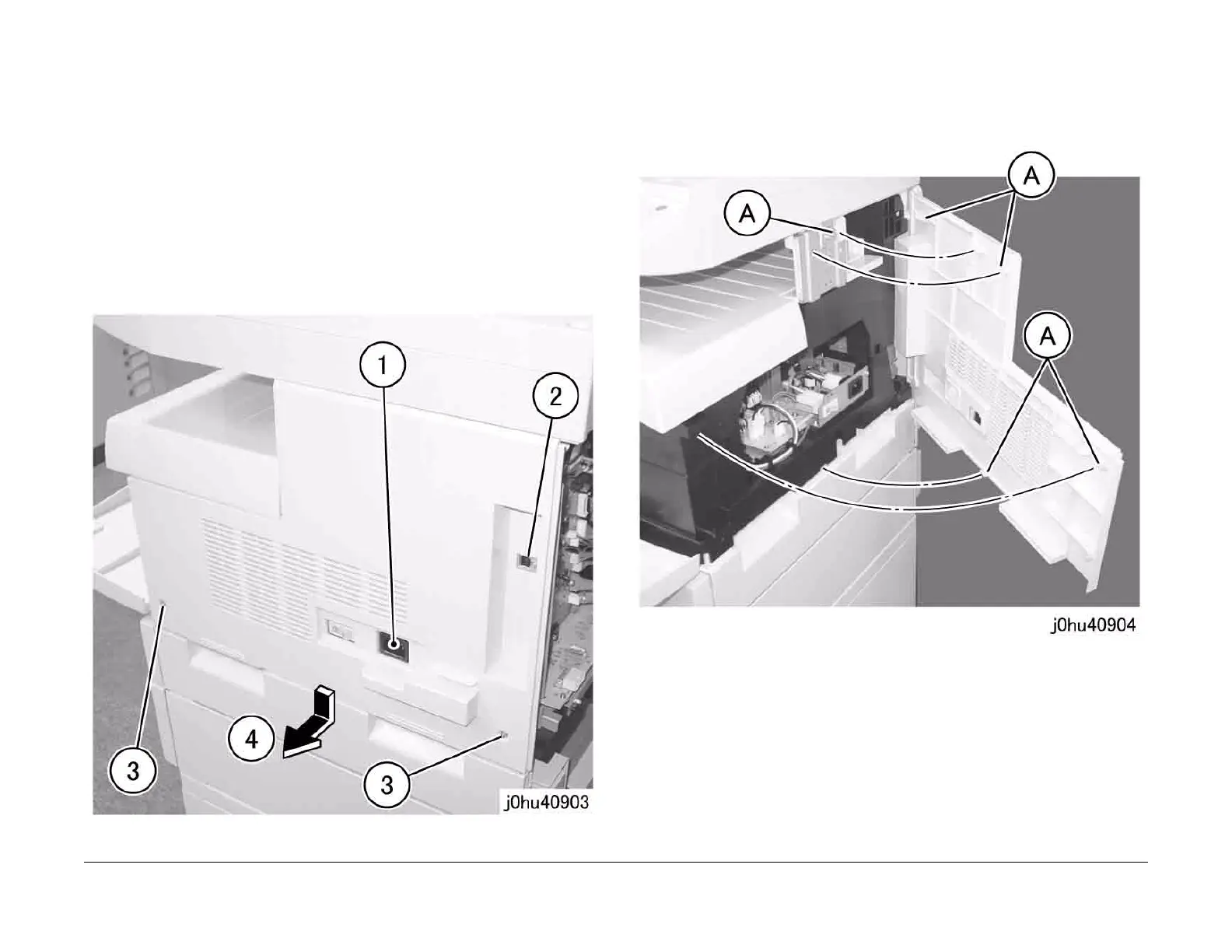

3. Remove the Right Cover (Figure 1).
1 Unplug the Power Cord.
2 Unplug the USB connector.
3 Remove the Tapping Screws (2).
4 Remove the Right Cover by pulling it in the direction of the arrow.
Figure 1
Replacement
1. To install, do the removal steps in reverse order.
2. When installing the Right Cover, insert the tabs (Figure 2).
A Tabs (5)
Figure 2
