Xerox WorkCentre 5020 - PL 2.3 Tray 1 Components (1 of 2)

07/26/2007
5-10
WorkCentre 5020
PL 2.3
Parts List

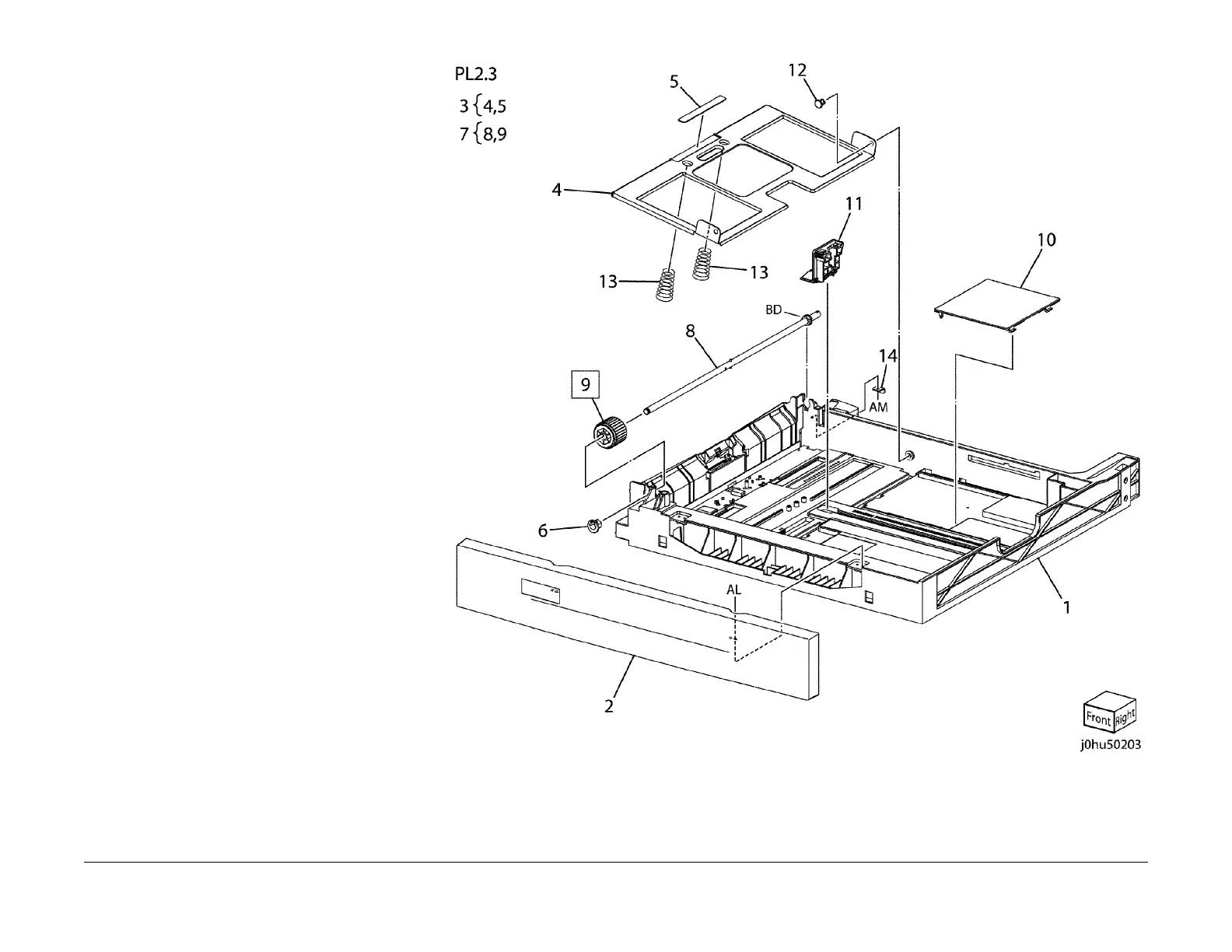

PL 2.3 Tray 1 Components (1 OF 2)
Item Part Description
1 – Tray (Not Spared)
2 – Tray Front Cover (Not Spared)
3 – Bottom Plate Assembly (Not
Spared)
4 – Bottom Plate (P/O Item 3)
5 – Bottom Pad (P/O Item 3)
6 013E25881 Bearing
7 059K33051 Roll And Shaft Assembly
8 – Feed Shaft (P/O Item 7)
9 059K32773 Feed Roll (REP 2.3.1)
10 – Cover (Not Spared)
11 – End Guide (Not Spared)
12 – Pivot (Not Spared)
13 – Spring (Not Spared)
14 – Stopper (Not Spared)
