July, 2007
4-17
WorkCentre 5020
REP 3.1.1
Repairs and Adjustments
Initial Issue
REP 3.1.1 ROS (SCC)
Parts List on PL 3.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.

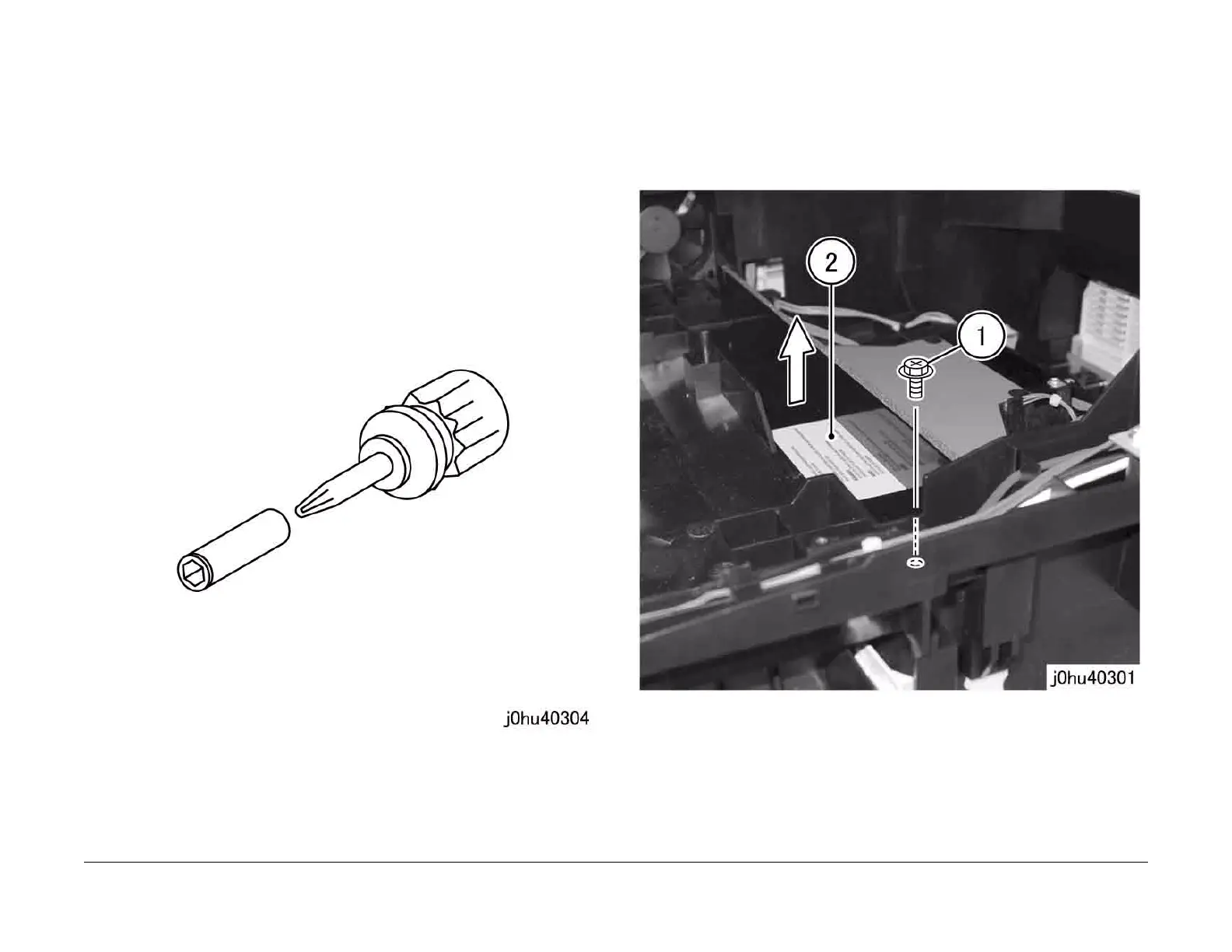

NOTE: Attach the attachment in the ROS Replacement Kit to a Stubby Driver to remove the
screws (Figure 1).
Figure 1
1. Open the Front Cover.
2. Remove the Output Tray (REP 9.1.1).
3. Remove the Rear Cover (REP 9.2.1).
4. Remove the HVPS and Contact Block (REP 8.2.1).
5. Remove the Laser Housing (Figure 2).
1 Remove the Tapping Screw.
2 Remove the Laser Housing.
Figure 2
To Next Page
