Xerox WorkCentre 5020 Service Documentation

July, 2007
4-11
WorkCentre 5020
REP 2.5.1
Repairs and Adjustments
Initial Issue

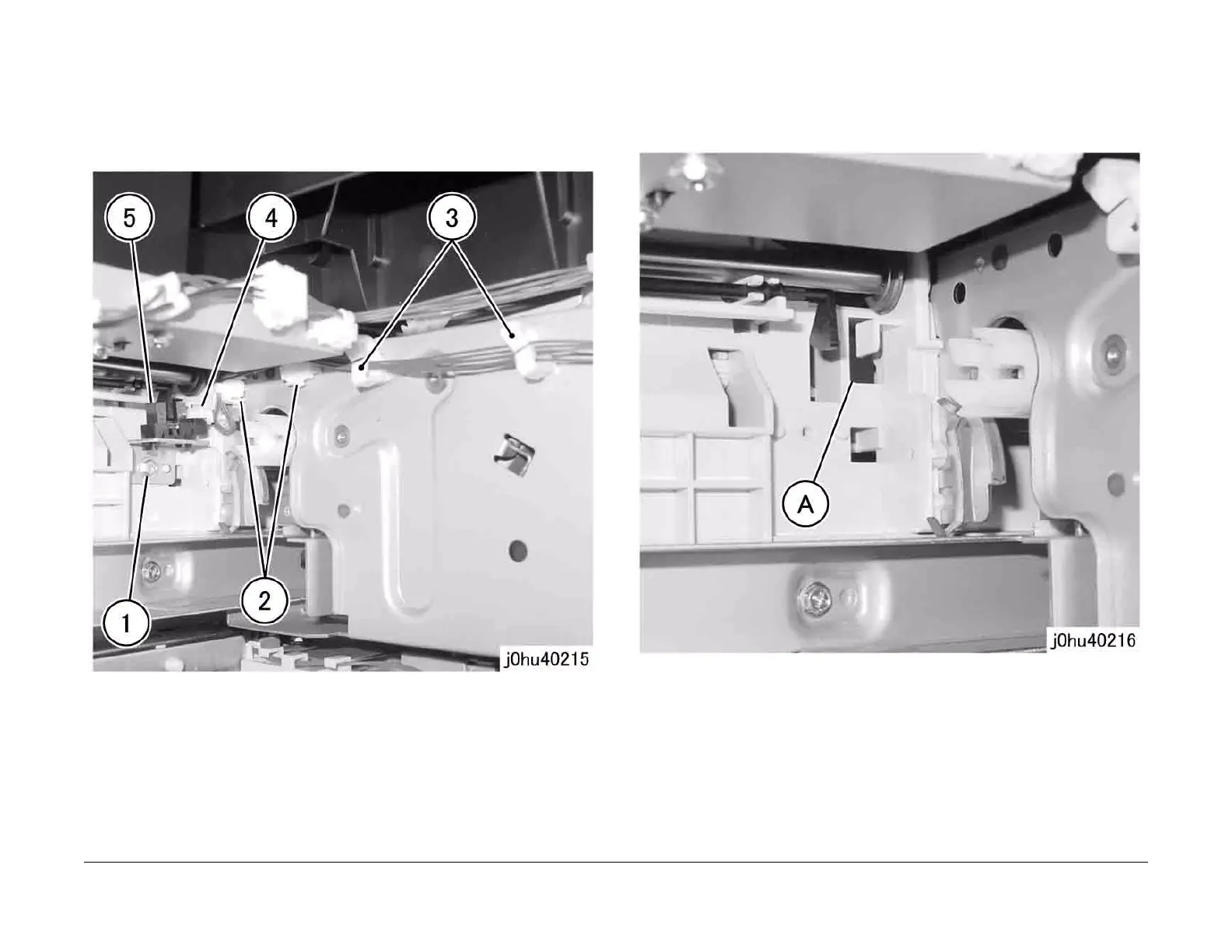

5. Remove the Tray 1 Feed Sensor (Figure 1).
1 Remove the Tapping Screw.
2 Remove the cable bands (2).
3 Release the wire harness from the clamps (2).
4 Move the wire harness toward you and disconnect the connector.
5 Remove the Tray 1 Feed Sensor.
Figure 1
Replacement
1. To install, do the removal steps in reverse order.
2. Insert the Connector Housing of the Tray 1 Interlock Switch into the square hole of the
frame (Figure 2).
A Square hole
Figure 2

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
