Xerox WorkCentre 5020 - Page 131

July, 2007
4-59
WorkCentre 5020
REP 8.4.1
Repairs and Adjustments
Initial Issue

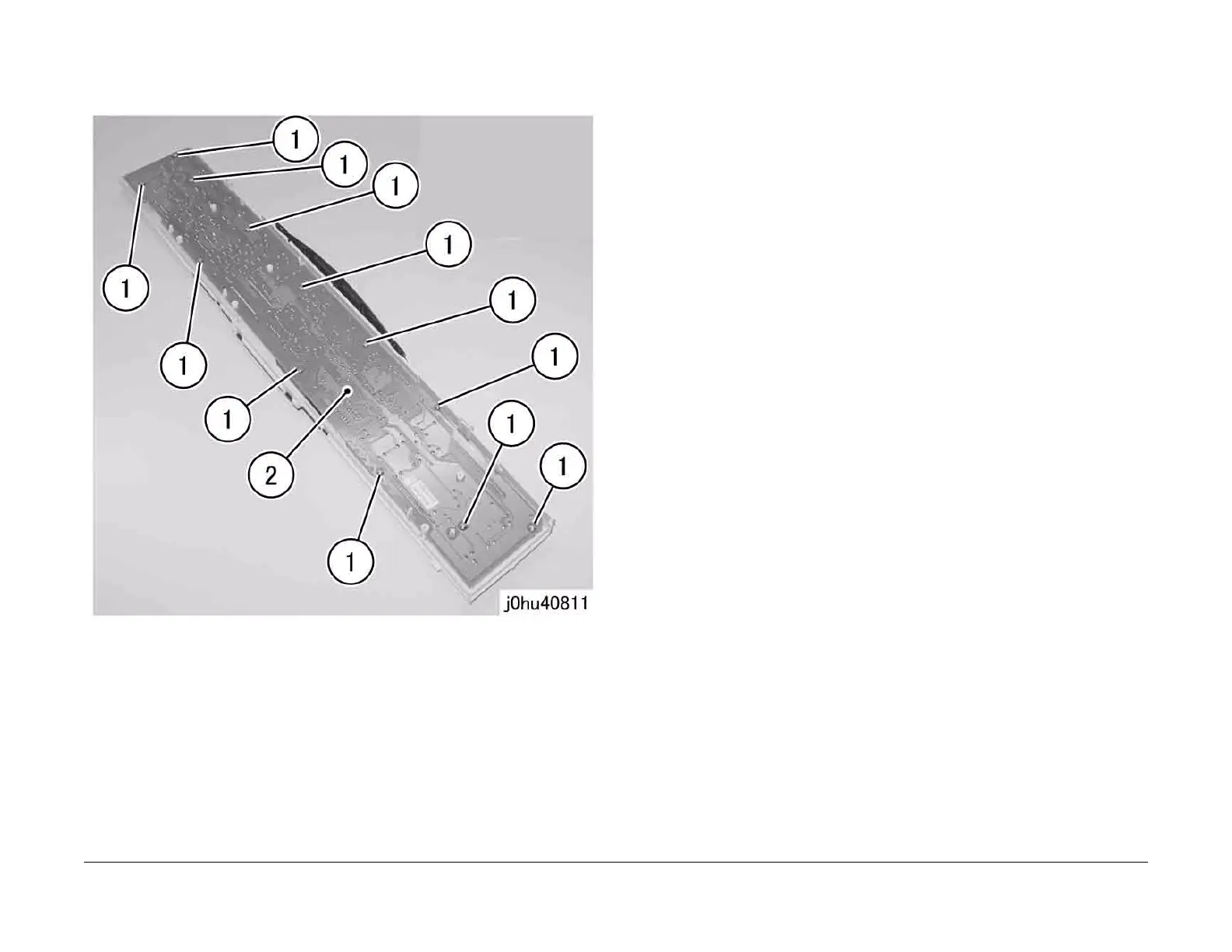

4. Remove the User Interface PWB (Figure 2).
1 Remove the Tapping Screws (12).
2 Remove the User Interface PWB.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
