Xerox WorkCentre 5020 - Page 158

July, 2007
4-86
WorkCentre 5020
REP 11.4.1
Initial Issue
Repairs and Adjustments

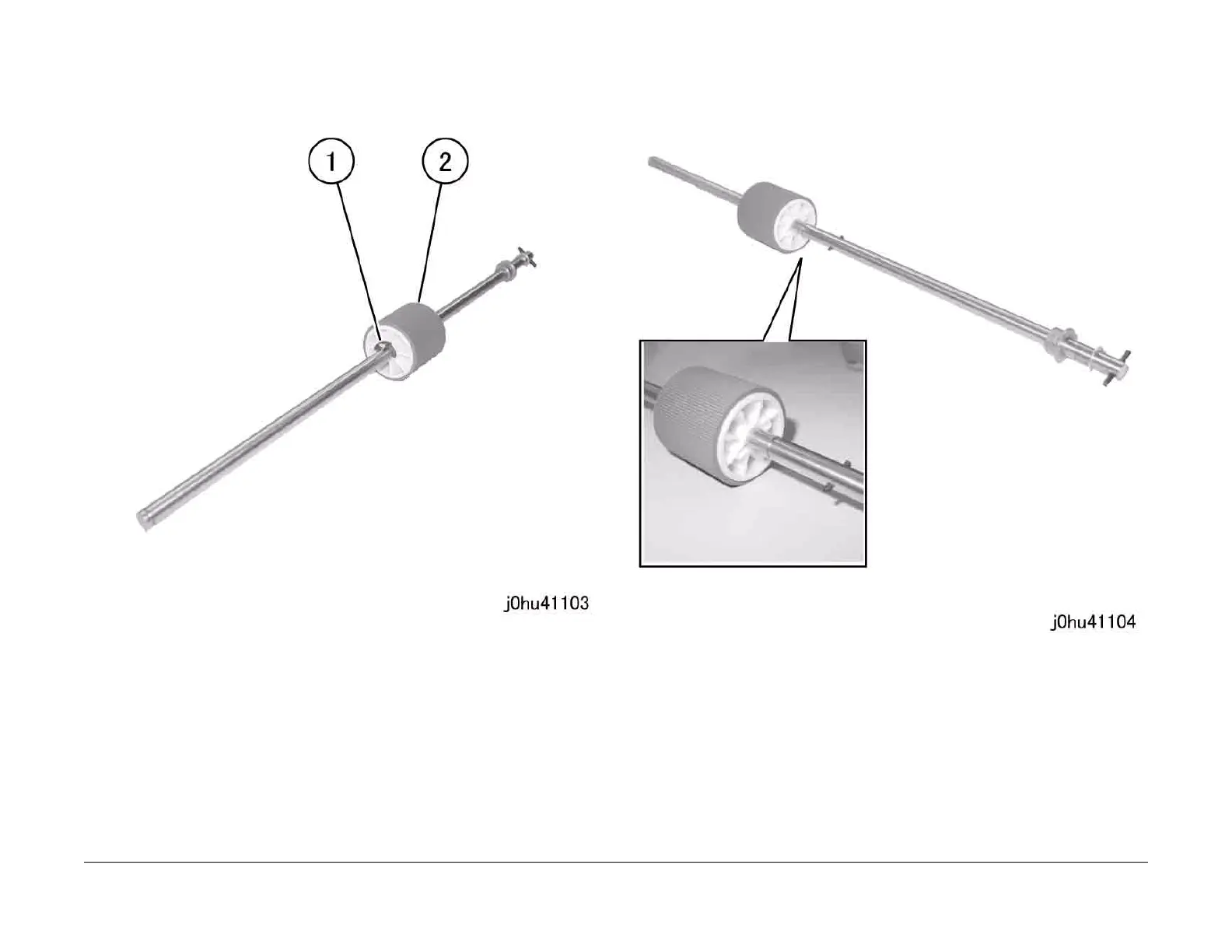

3. Remove the Tray 2 Feed Roll (Figure 2).
1 Remove the KL-Clip.
2 Remove the Tray 2 Feed Roll.
Figure 2
Replacement
1. To install, do the removal steps in reverse order.
2. When installing the Tray 2 Feed Roll, align the pin on the Feed Shaft with the groove in
the Tray 2 Feed Roll (Figure 3).
Figure 3
