WorkCentre 5020
REP 5.1.4
Initial Issue
Repairs and Adjustments
4. Remove the Fuser Roll Retaining Rings and Drive Gear (Figure 4).
1 Remove the Retaining Ring.
2 Remove the Drive Gear.
3 Remove the Retaining Ring from the other end of the Fuser Roll.

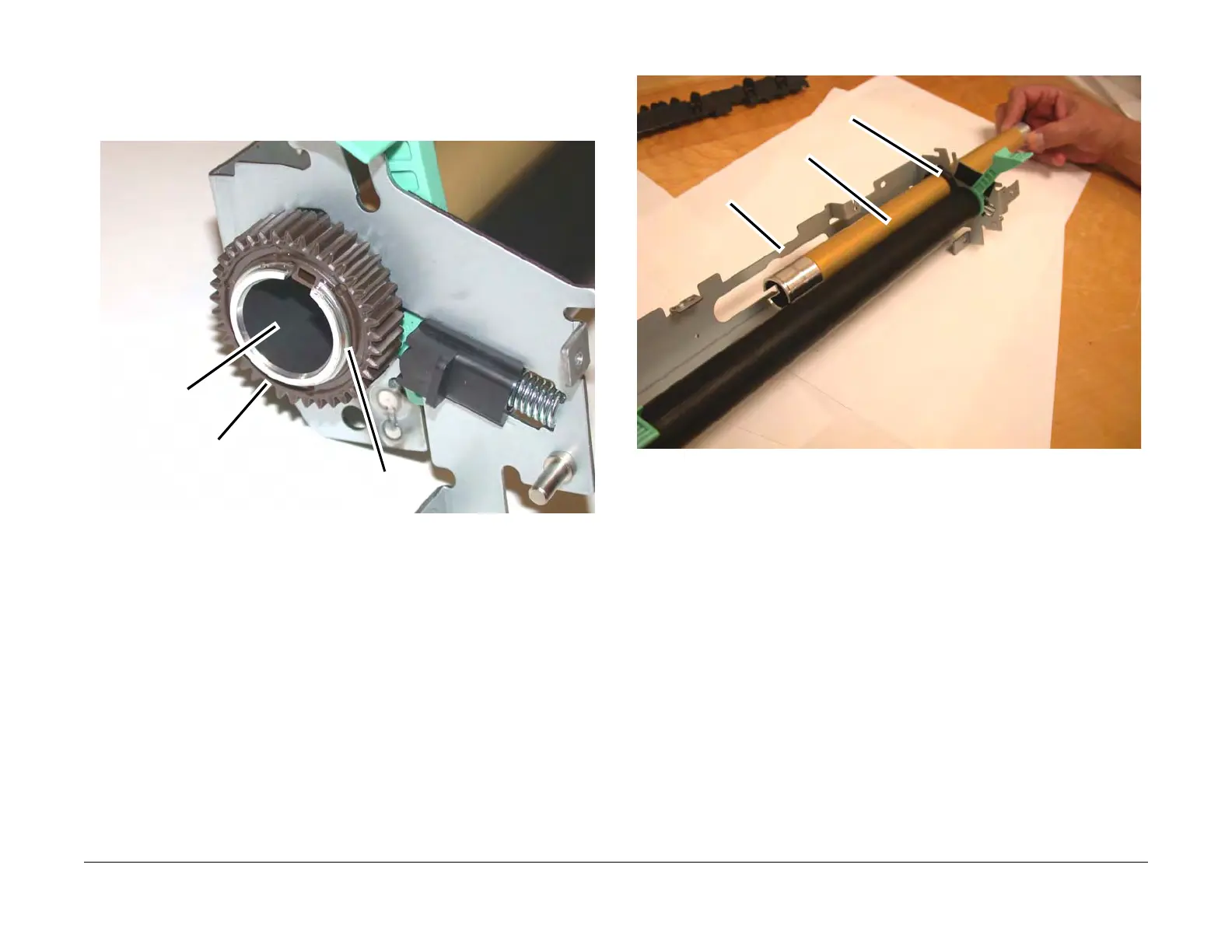

Figure 4 Removing the Retaining Rings and Drive Gear
5. Remove the Fuser Roll by pulling it through the Bushings in the Frame (Figure 5).
Figure 5 Removing the Fuser Roll
Retaining Ring
Drive Gear
Fuser Roll
Bushing
Frame
Fuser Roll
