Xerox WorkCentre 5020 Service Documentation

July, 2007
4-72
WorkCentre 5020
REP 10.3.1
Initial Issue
Repairs and Adjustments
13. Turn the left side of the IIT Carriage face up.

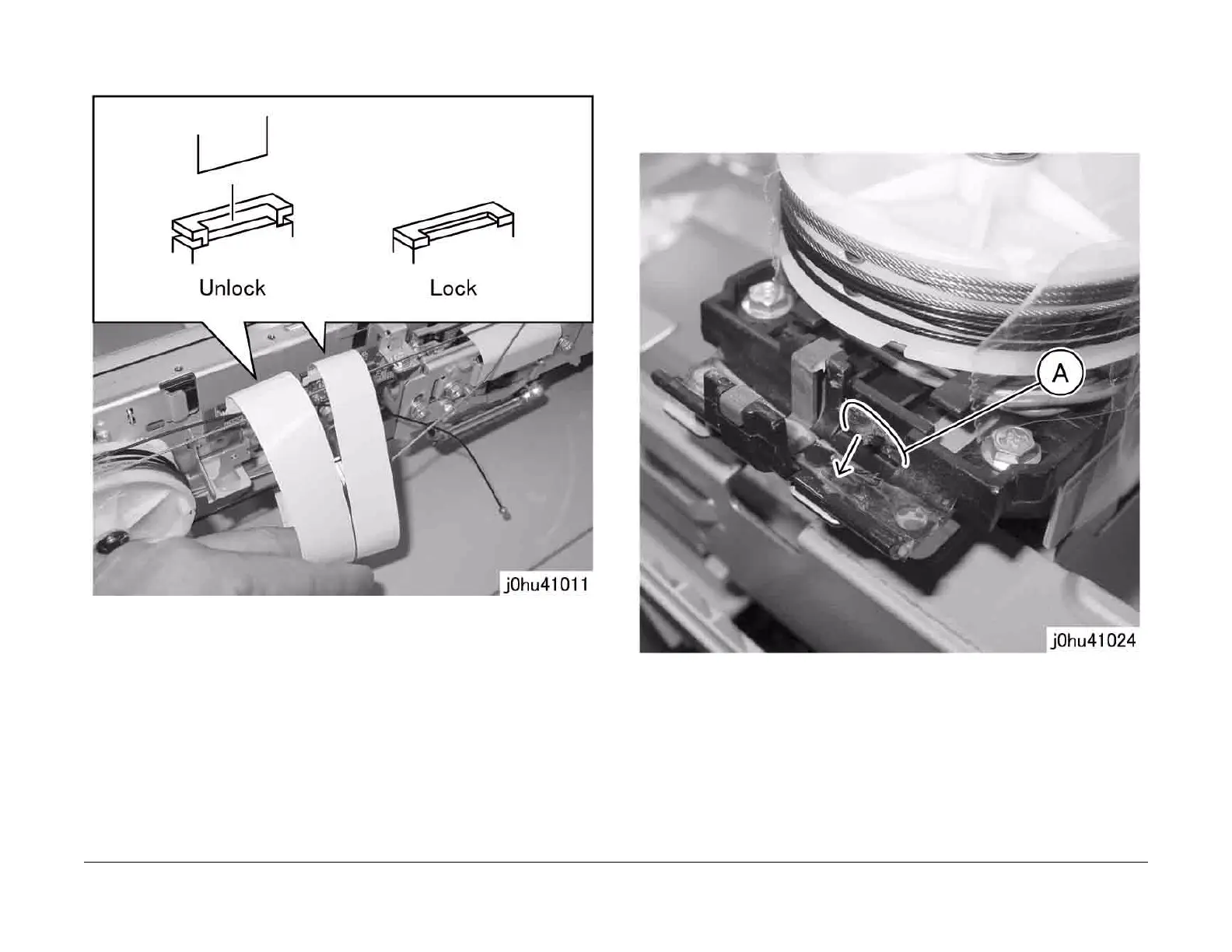

14. Disconnect the Flexible Print Cable connectors (2) (Figure 11).
Figure 11
Replacement
1. To install, do the removal steps in reverse order.
2. Do not allow the Rail Contact of the IIT Carriage to bend in the direction of the arrow
(Figure 12).
A Rail Contact
Figure 12

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
