July, 2007
4-78
WorkCentre 5020
REP 10.7.1
Initial Issue
Repairs and Adjustments

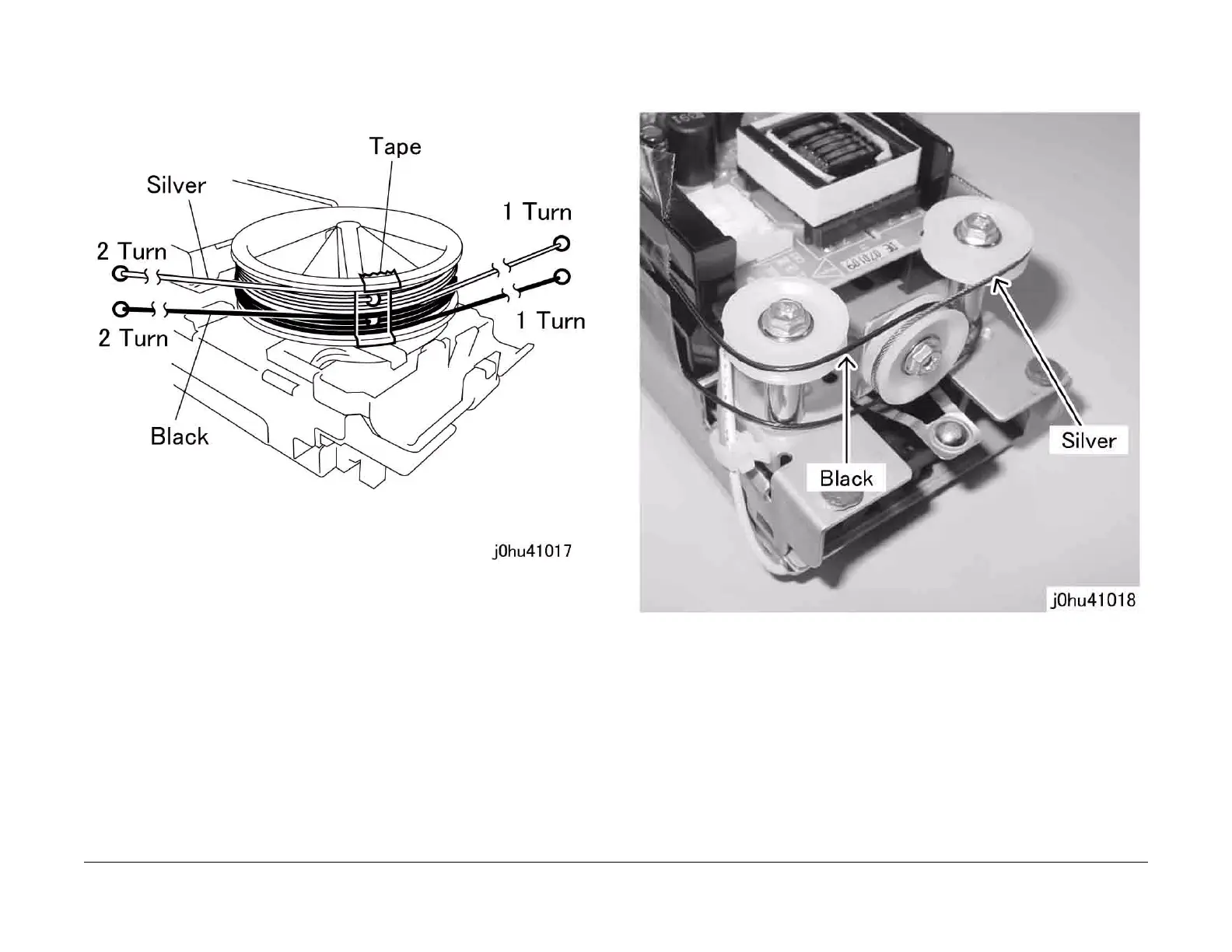

3. Wind the Carriage Cables around the Drum and secure them with tape (Figure 3).
Figure 3
4. Wind the Carriage Cables around the pulleys (Figure 4). See also the Cable Winding
Schematic (Figure 5).
5. Secure the Cables with pieces of tape so that they do not become loose (see Figure 1).
Figure 4
