Xerox WorkCentre 5020 - Page 283

July, 2007
7-21
WorkCentre 5020
Wiring Data
Initial Issue
Figure 1 8.1 Tray 1 Paper Feeding
ABCDEFGHJ
1
2
3
4
5
6
AIOC PWB
PL8.1

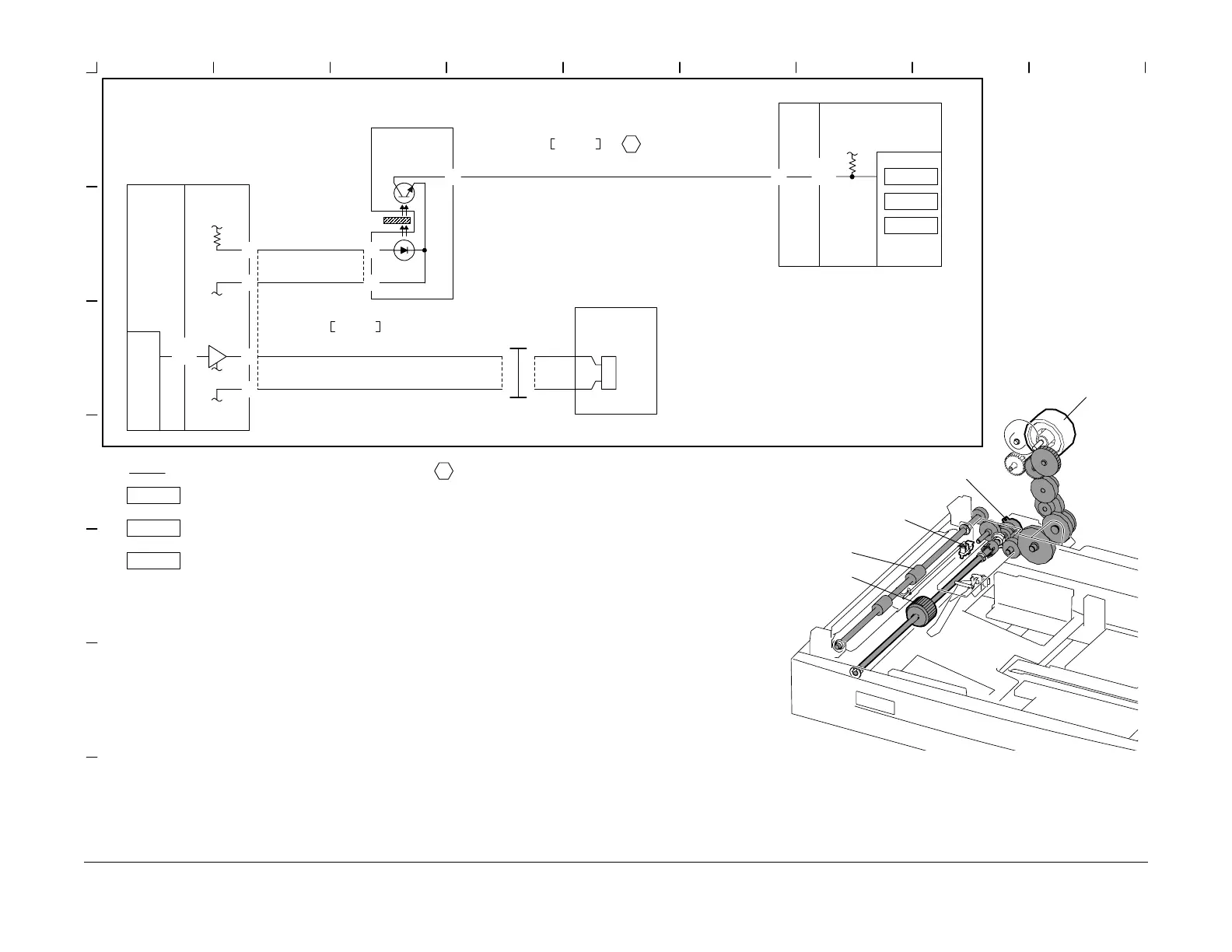

8.1 TRAY1 PAPER FEEDING
LVPS
PL8.1
J501
6
7
TRAY1 FEED
SENSOR
PL2.5
J158
3
2
J158
1
+5VDC
(1.1)
DC COM
(1.1)
LVPS
PL8.1
J501
8
C1-1
+5VDC
P/J407
A20
TRAY1 FEED SENSOR
PAPER SENSED(L) +5VDC
TRAY1 FEED
CLUTCH
PL2.2
1
+24VDC
(1.1)
P202
2
TRAY1 FEED CLUTCH
ON(L) +24VDC
8-7
8-12
Fail Code
C1-1
Tray1 Feed Sensor on JAM
TRAY1 FEED SENSOR
TRAY1 FEED CLUTCH
BLU BLU
BLU BLU
AIOC PWB
PL8.1
2
J202
1
1 2
DC COM
P/J407
A18
IOT Motor
BLU BLU
BLU
BLU
BLU
BLU
C2-2
C2-2
Tray1 Feed Sensor on JAM from STM Feed
Take Away Roll 1
Tray 1 Feed Roll
C8-1
C8-1
Tray1 Feed Sensor Static JAM
The H/L level is displayed on the UI display
1
1
