Xerox WorkCentre 5020 - Page 291

July, 2007
7-29
WorkCentre 5020
Wiring Data
Initial Issue

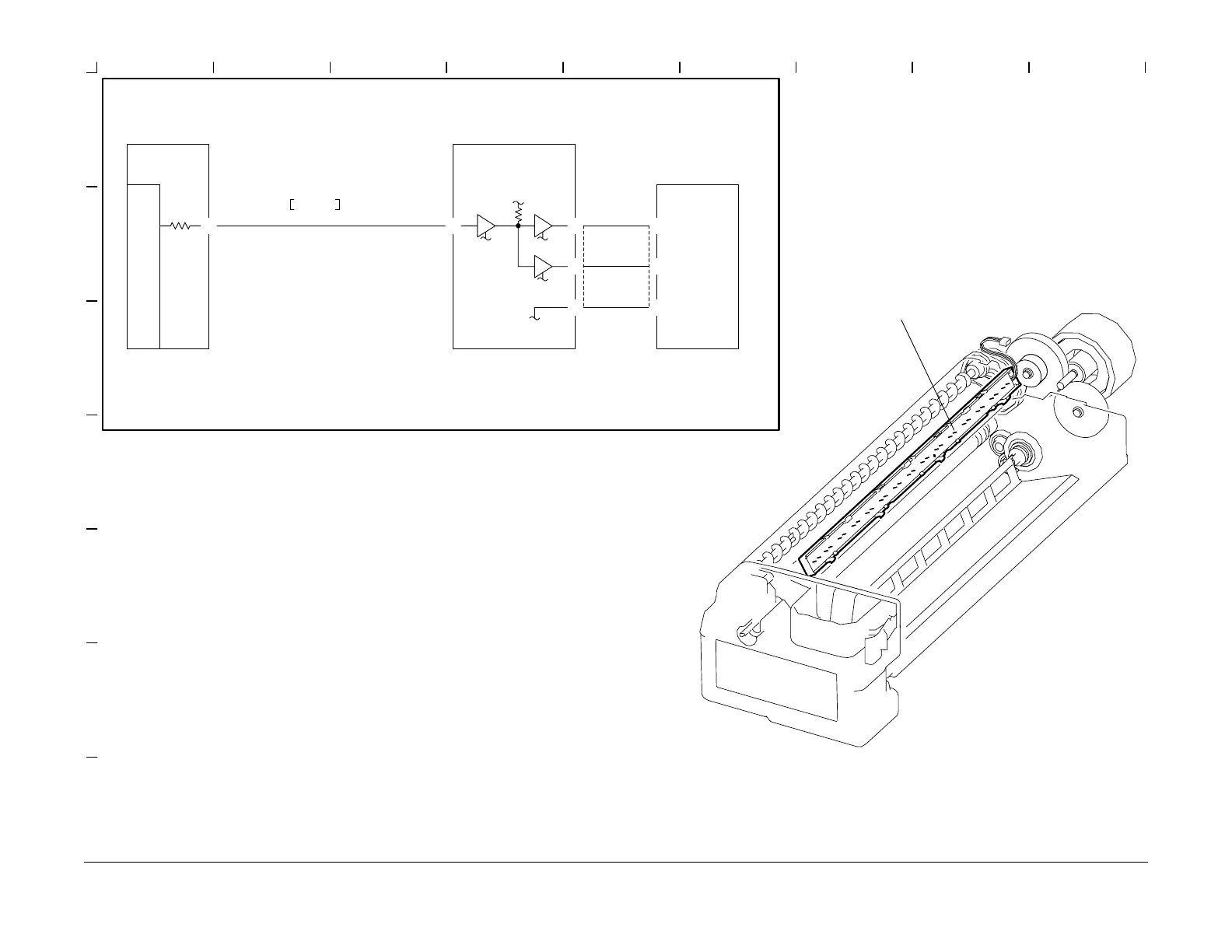

Figure 3 9.3 Erase Lamp
ABCDEFGHJ
1
2
3
4
5
6
9.3 ERASE LAMP
AIOC PWB
PL8.1
HVPS PWB
PL8.2
J406
6
J520
6
J521
1
3
2
DC COM DC COM
DC COM
+24VDC
INTLK
+24VDC
(9.1)
ERASE LAMP
PL4.2
ERASE LAMP ON(L) +5VDC
ERASE LAMP
9-6
BLU BLU BLU
BLU
BLU
J210
1
3
2
