Xerox WorkCentre 5020 Service Documentation

July, 2007
7-32
WorkCentre 5020
Initial Issue

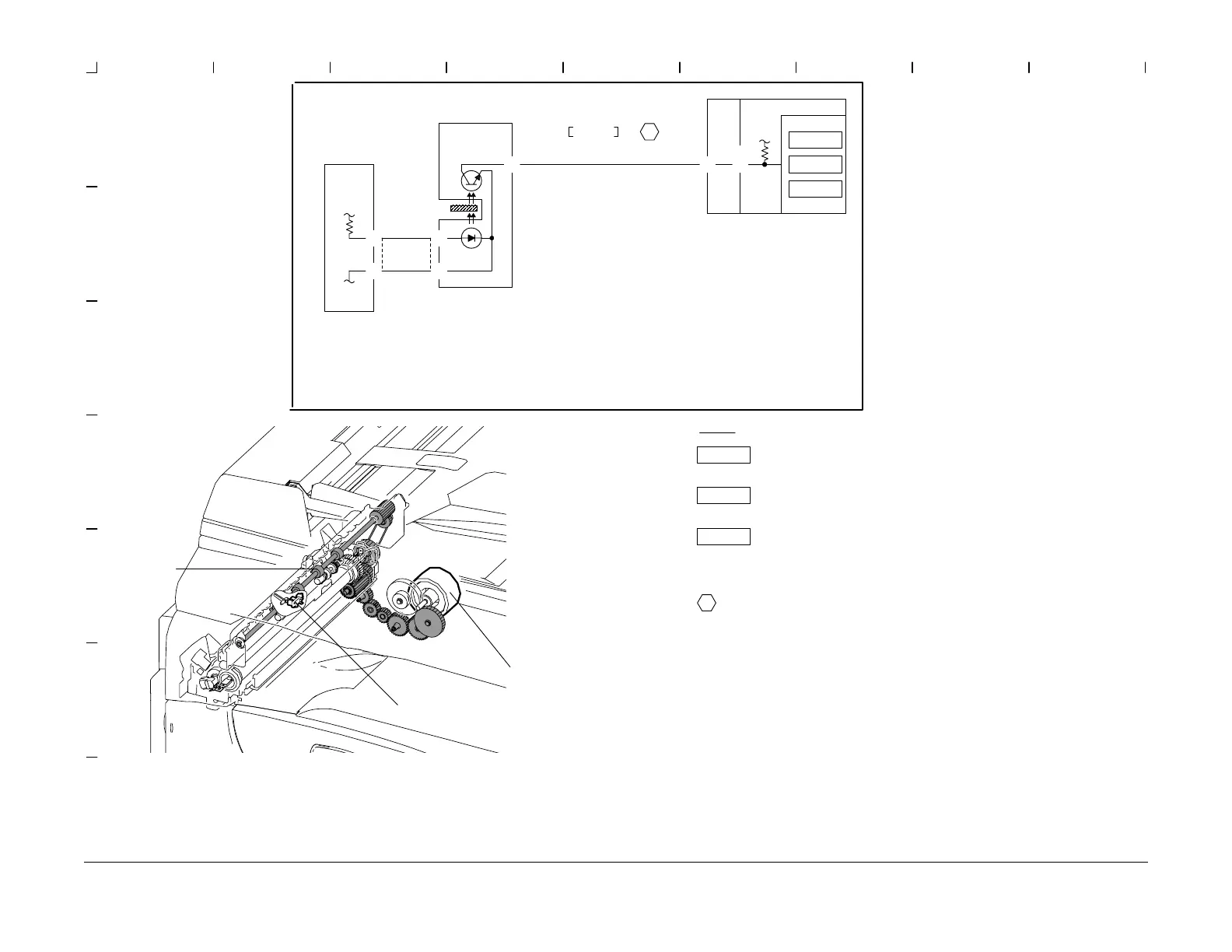

Wiring Data
Figure 2 10.2 Exit
ABCDEFGHJ
1
2
3
4
5
6
LVPS
PL8.1
AIOC PWB
PL8.1
10.2 EXIT
LVPS
PL8.1
J505
1
2
FUSER EXIT
SENSOR
PL6.3
J153
3
2
J153
1
+5VDC
DC COM
(1.1)
J505
3
E1-2
+5VDC
FUSER EXIT SENSOR
PAPER SENSED(L) +5VDC
E3-1
10-23
Fail Code
BLU
BLU
BLU
BLU
BLU BLU
P/J407
A3
E3-6
E1-2
E3-1
E3-6
Fuser Exit Sensor on JAM
Fuser Exit Sensor off JAM
Fuser Exit Sensor Static JAM
Simplex Transport:
Exit Roll is driven by IOT Motor.
IOT Motor
FUSER EXIT SENSOR
Exit Roll
1
The H/L level is displayed
on the UI display
1

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
