7-36
WorkCentre 5020
Initial Issue
Wiring Data
LENS ASSEMBLY

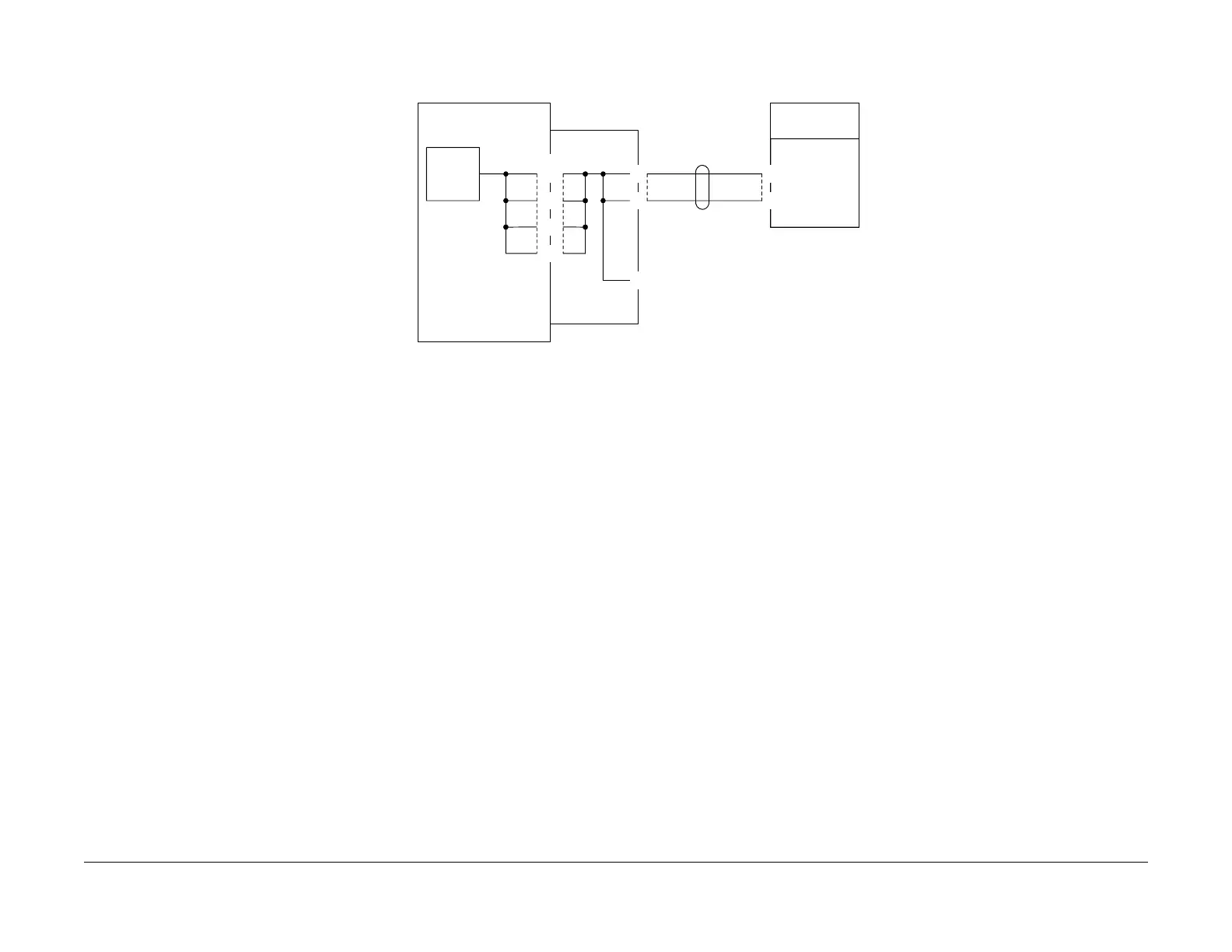

7.2.3 WIRE NET +3.3VDC
LOW VOLTAGE
POWER SUPPLY
+3.3VDC
AIOC PWB
A16
A17
B16
B17
J409
4
5
J414
B6
IIT PWB
J721
18
17
P/J407
FLAT
CABLE
