6-62
E
LOWR
SHIMMING (REGULAR ROTATION MODELS)
(FOR WORLDWIDE)
(5) Calculate the pinion shim thickness
(T3).

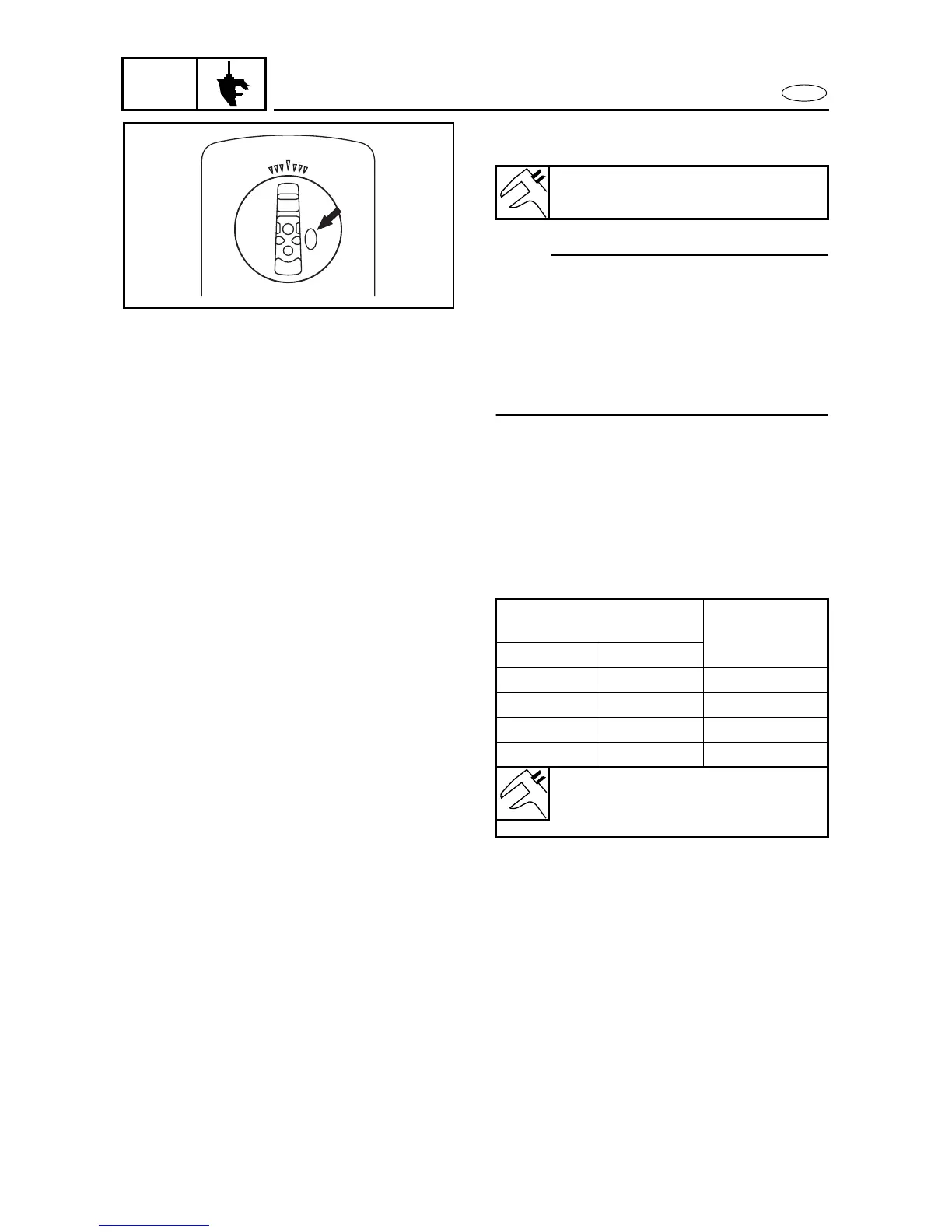

NOTE:
“P” is the deviation of the lower case
dimension from standard. It is stamped on
the trim tab mounting surface of the lower
case in 0.01-mm units. If the “P” mark is
missing or unreadable, assume a “P” value
of “0”, and check the backlash when the
unit is assembled.
Example:
If M3 is “46.85 mm”, M4 is “15.12 mm” and
P is “–5”, then
T3 = 62.5 + (–5)/100 – 46.85 – 15.12 mm
= 62.5 – 0.05 – 46.85 – 15.12 mm
= 0.48 mm
(6) Select the pinion shim(s) (T3).
Pinion shim thickness (T3) =
62.5 + P/100 – M3 – M4
Calculated numeral
at 1/100th place
Rounded
numeral
More than or less
0.00 0.02 0.00
0.02 0.05 0.02
0.05 0.08 0.05
0.08 0.10 0.08
Available shim thickness
0.10, 0.12, 0.15, 0.18, 0.30, 0.40
and 0.50 mm
6880
F+5
R-1
P+2
