Yamaha F115A - Page 512

7-17
BRKT
E

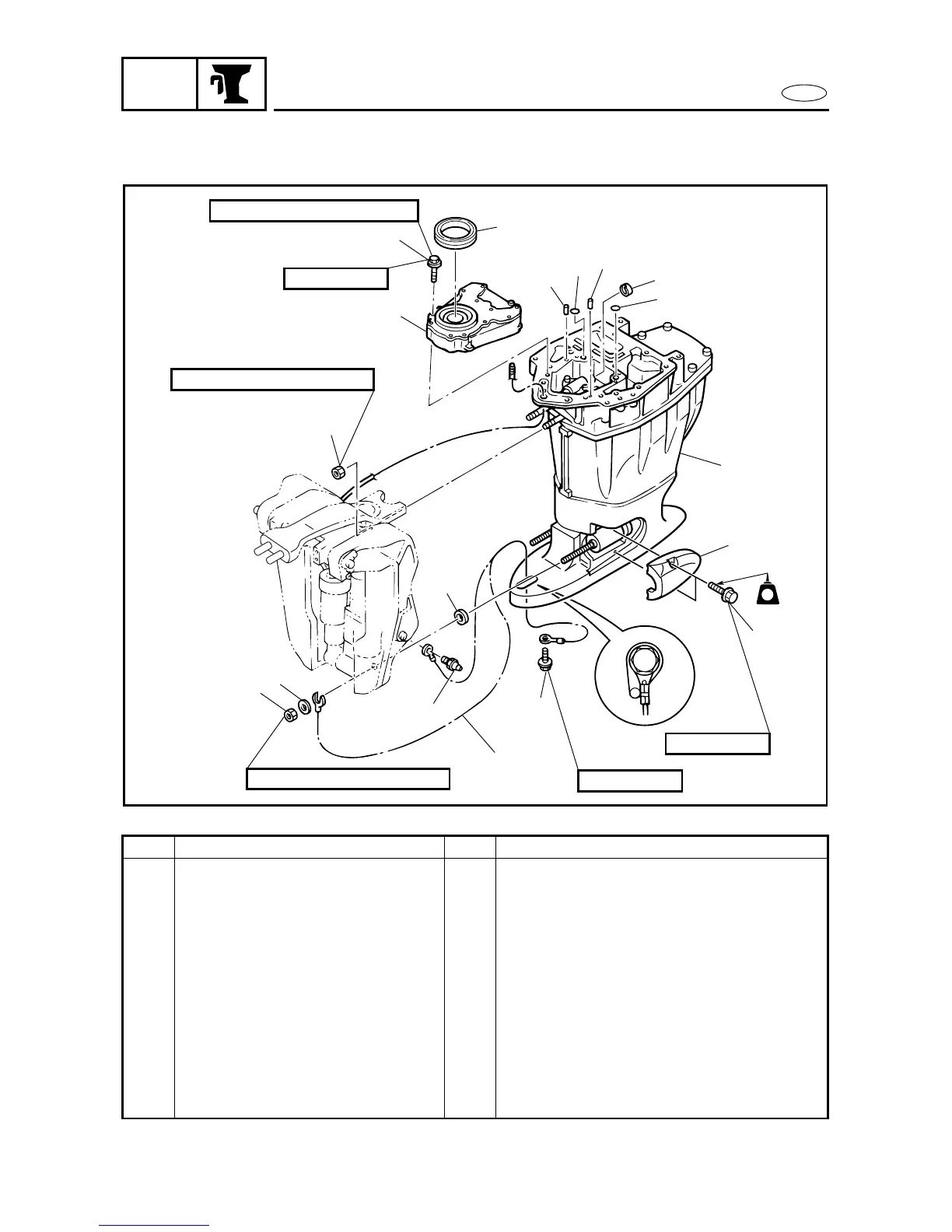

UPPER CASE ASSEMBLY
7
Order Job/Part Q’ty Remarks
7 Lower mount cover 2
8 Grease nipple 1
9 Bolt 1
10 Damper 2
11 Nut 2
12 Nut 2
13 Washer 2
14 Ground lead 1
15 Washer 2
16 Upper case assembly 1
For installation, reverse the removal
procedure.
1
2
5
4
4
3
11
12
13
15
8
9
16
7
6
6 × 45 mm
6 × 10 mm
10 × 40 mm
53 Nm (5.3 m • kgf, 38 ft • Ib)
73 Nm (7.3 m • kgf, 53 ft • Ib)
11 Nm (1.1 m • kgf, 8.0 ft • Ib)
