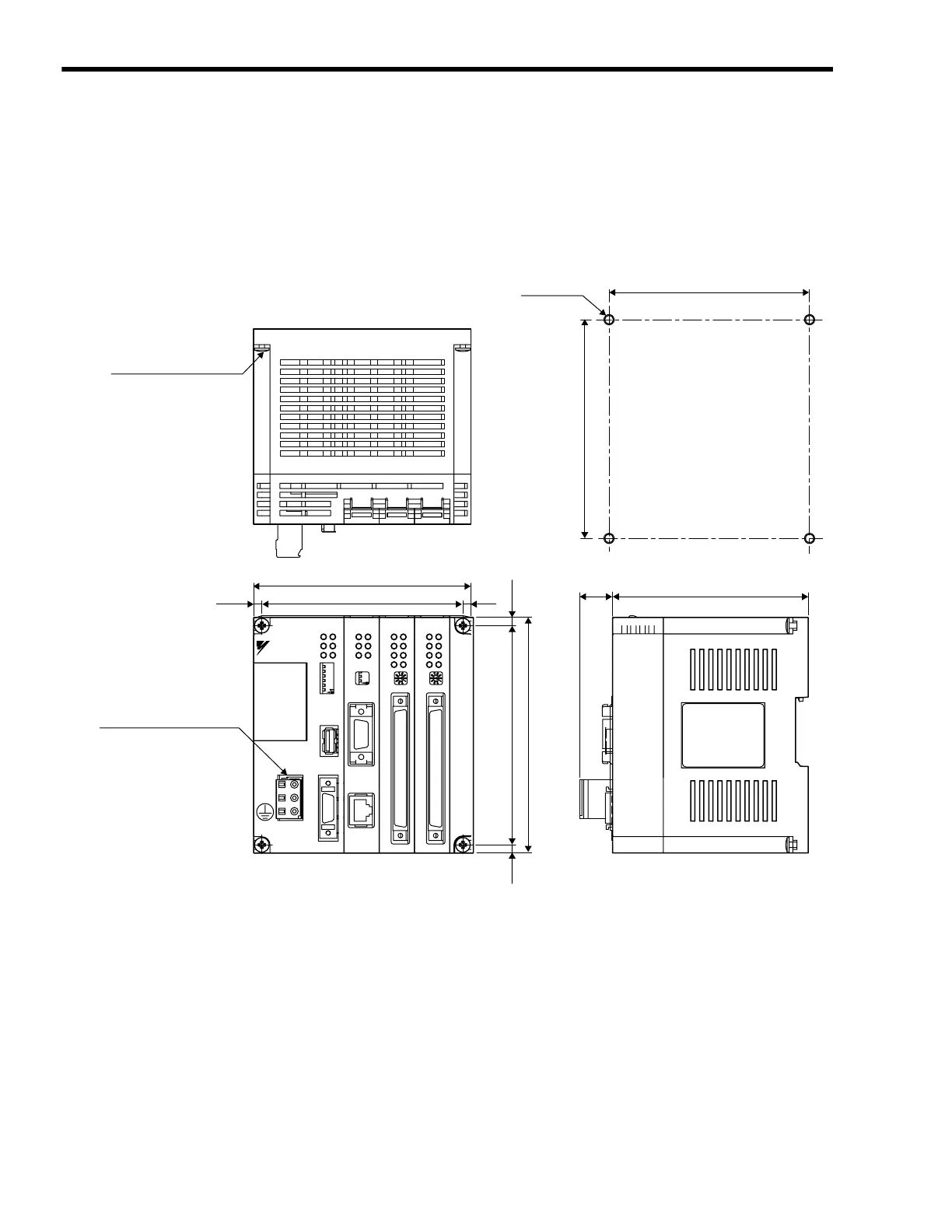

3.6 Dimensional Drawings
This section shows the dimensional drawings of the Basic Module and Optional Modules.
3.6.1 Basic Module

A 721-203/026-000 Cable Connector is mounted to the POWER connector.

Accessory: Operation lever type 231-131
The operation lever is used when connecting wires to the cable connector.

Different Optional Modules are inserted into the slots for each product model.
218IF-01
ERR
COL
RX
RUN
STRX
TX
INIT
TEST
OFF ON
PORT
10Base-T
LIO-01
LD5
LD6
LD7
LD8LD4
LD3
LD2
LD1
MODE
I/O
LIO-01
LD5
LD6
LD7
LD8LD4
LD3
LD2
LD1
MODE
I/O
RUN
ERR
BAT
SW1
OFF
RDY
ALM
TX
STOP
SUP
INIT
CNFG
MON
TEST
ON
BATTERY
CPU I/O
POWER
DC 0V
DC24V
(4.5)
130 1214.5
(18)
108
120
111
4.5
(4.5)
111±0.2
121±0.2
Panel Cutout Dimensions
Four-M4 tap
M4 mounting screws (4)
Cable connector (3P)
721-203/026-000
M-I/II
MP2300
YASKAWA
Unit: mm
