4.2
Basic Module Connections
4-15

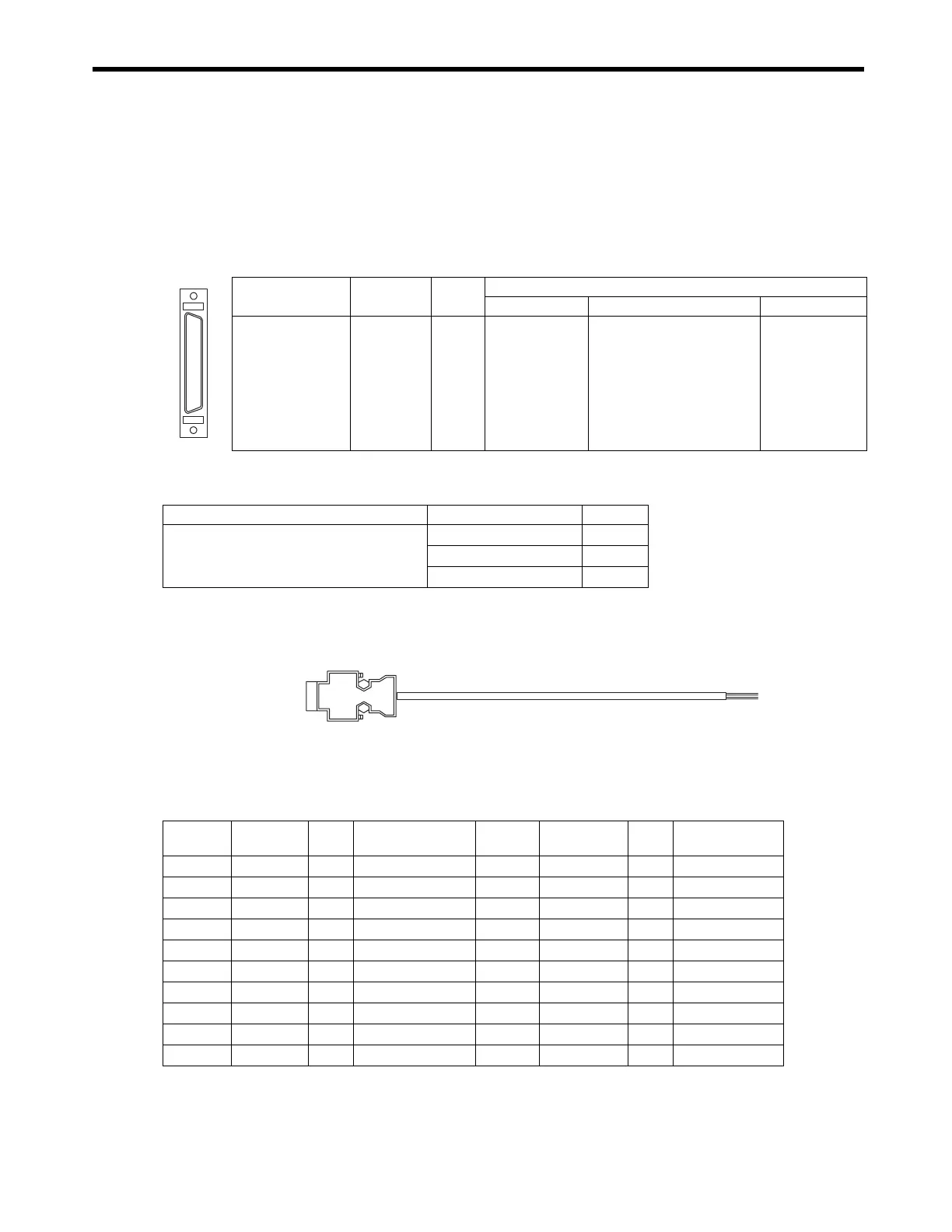

4.2.4 CPU I/O Connectors
CPU I/O connector is used to connect the MP2300 and external I/O signals.
( 1 ) Specifications
External input: 8 points; External output: 4 points
( 2 ) Cables
( 3 ) External Appearance of I/O Cable
JEPMC-W2060-

( 4 ) Connector Pin Arrangement
The following table shows the connector pin arrangement.

P: Power input; I: Input signal; O: Open-collector output
Name
Connector
Name
No. of
Pins
Connector Model
Module Cable Manufacturer
I/O Connector
CPU I/O
20
10220-52A2JL
• 1020-3000VE Connector
• 10320-52F0-008 Shell
Sumitomo 3M
Name Model Number Length
I/O Cable (loose wires
)
JEPMC-W2060-A5
0.5 m
JEPMC-W2060-01
1 m
JEPMC-W2060-03
3 m
Pin
Number
Signal
Name
I/O Remarks
Pin
Number
Signal Name I/O Remarks
1
DI_COM P
Input common 11
DI_COM P
Input common
2
DI_00 I
Input 00 12
DI_04 I
Input 04
3
DI_01 I
Input 01 13
DI_05 I
Input 05
4
DI_02 I
Input 02 14
DI_05 I
Input 06
5
DI_03 I
Input 03 15
DI_07 I
Input 07
6
−
16
−
7
−
17
DO_24V P
+24 V input
8
DO_COM P
Output common 18
DO_COM P
Output common
9
DO_00 O
Output 00 19
DO_02 O
Output 02
10
DO_01 O
Output 01 20
DO_03 O
Output 03
