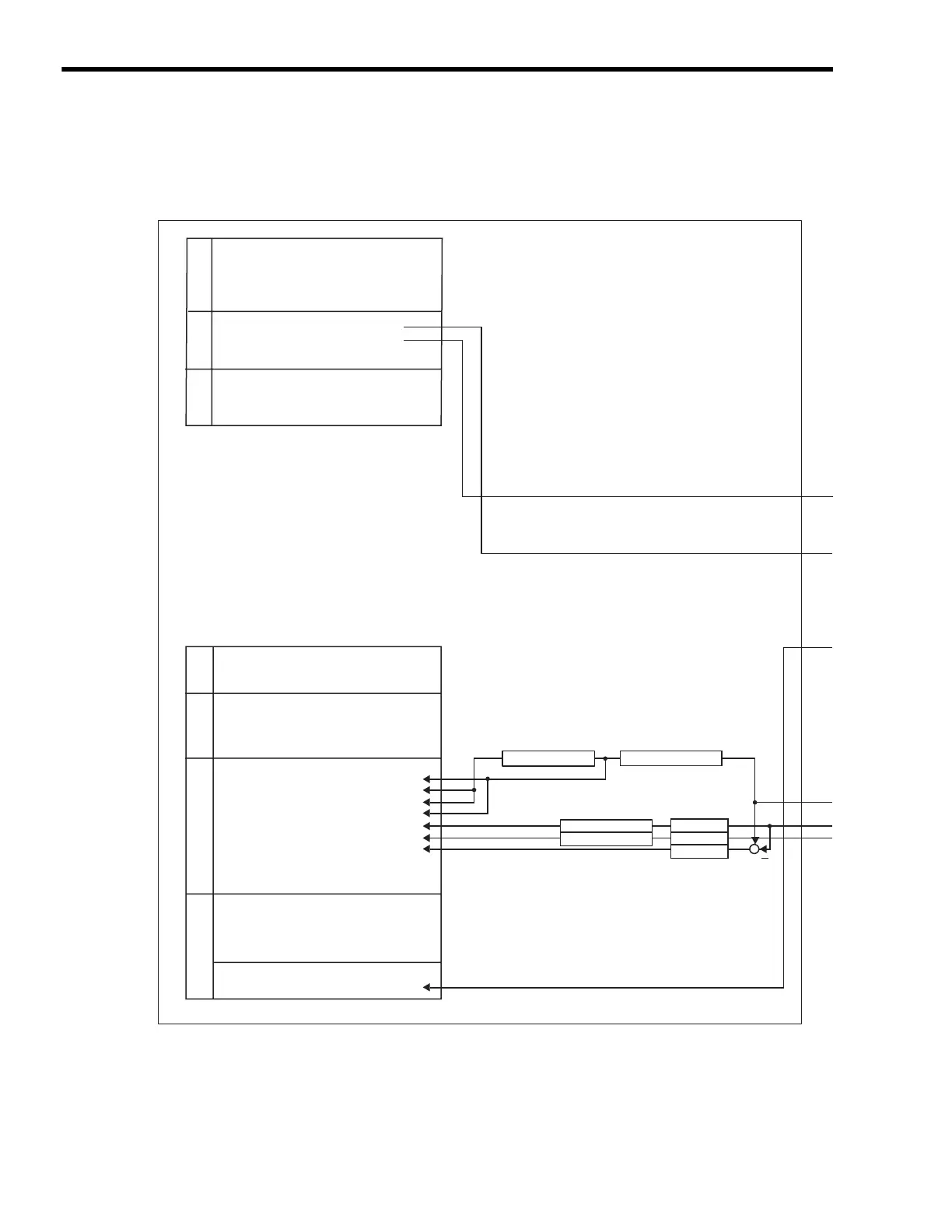

Control Block Diagram for Torque Control
8-12
8.3.2 Control Block Diagram for Torque Control
MP2300
SVB
OW00 RUN Commands
OW03 Function 1
OW08 Motion Command
OW09 Motion Command Options
OW0A Motion Subcommand
OL0C Torque Reference
OL0E
Speed Limit at Torque Reference
OL48 Zero Point Offset
OL4A Work Coordinate System Offset
OL4C Preset Data of POSMAX Turn
IW00 Drive Status
IL02 Warning
IL04 Alarm
IW08 Servo Command Type Response
IW09 Servo Module Command Status
IW0A Motion Subcommand Response Code
IW0B Motion Subcommand Status
IW0C Position Management Status
IL0E
Machine Coordinate Target Position (TPOS)
IL10 Target Position (CPOS)
IL12
Machine Coordinate System Position (MPOS)
IL14
32-bit Coordinate System Position (DPOS)
IL16
Machine Coordinate Feedback Position (APOS)
IL18
Machine Coordinate Latch Position (LPOS)
IL1A Position Error (PERR)
IL1C Target Position Difference Monitor
IL1E POSMAX Number of Turns
IL20 Speed Reference Output Monitor
IW2C Network Servo Status
IW2D Servo Alarm Code
IW2E Network Servo I/O Monitor
IW2F
Network Servo User Monitor Information
IW30 Servo User Monitor 2
IL40 Feedback Speed
IL42 Torque (Thrust) Reference Monitor
POSMAX processing
Follow-up processing
Electronic gear
POSMAX processing
Electronic gear
POSMAX processing
Electronic gear
+
Run Settings
Torque
Reference
Coordinates
Run
Information
Motion Command
Information
Position Information
SERVOPACK
Information
