YASKAWA JEPMC-MP2300-Y Series User Manual

3
Module Specifications
3.5.2
217IF-01 Module
3-54
3.5.2 217IF-01 Module

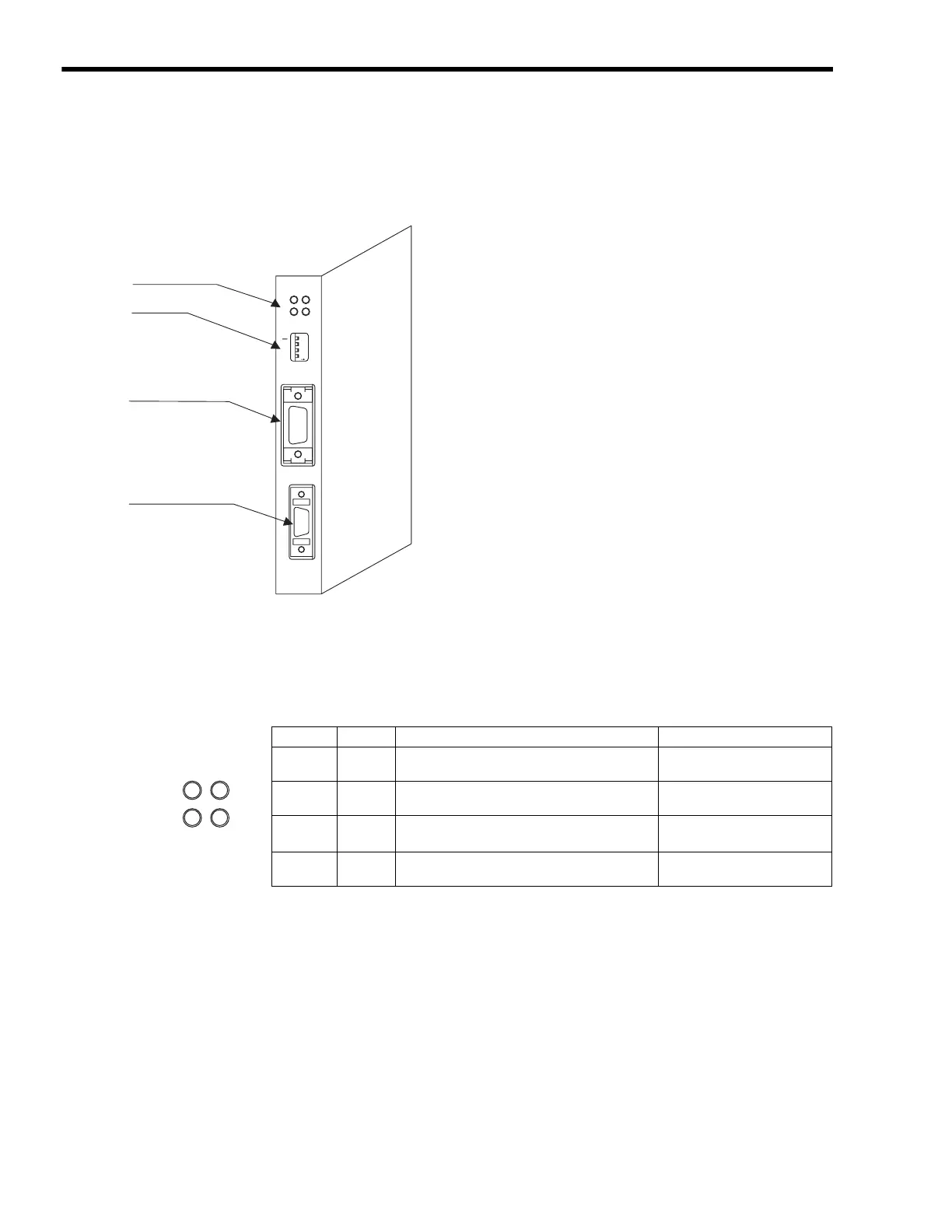

( 1 ) External Appearance and Outline of Functions
( 2 ) LED Indicators and Switch Settings
[ a ] Indicators
The following table shows the 217IF-01 Module status when each LED indicator is lit or unlit.
The 217IF-01 Module has RS-232C and RS422/485 serial
interfaces mounted in it. Personal computers, HMI devices, and
controllers manufactured by other companies can be connected
to the 217IF-01 Module via the PORT or RS422/485
connectors. For details, refer to the MP2300 Machine
Controller Communication Module User’s Manual (Manual
No. SIEPC8807004

).
(RS422/485)
Serial connector
ON
LED indicators
Serial connector
(RS-232C)
Switch
217IF-01
ERR
TRXSTRX
RUN
TEST
INIT
485
ONOFF
PORT
RS422/485
Indicator Color Status When Lit Status When Unlit
RUN Green
Normal operation Error occurrence
ERR Red
Malfunction (lights/blinks) Normal operation
STRX Green
Transmitting or receiving RS-232C (PORT)
data
No data being transmitted or
received
TRX Green
Transmitting RS-422/485 (RS422/485) data No data being transmitted
ERR
TRXSTRX
RUN
