YASKAWA JEPMC-MP2300-Y Series User Manual

4
Mounting and Wiring
4.4.2
LIO-04/LIO-05 Module Connections
4-34

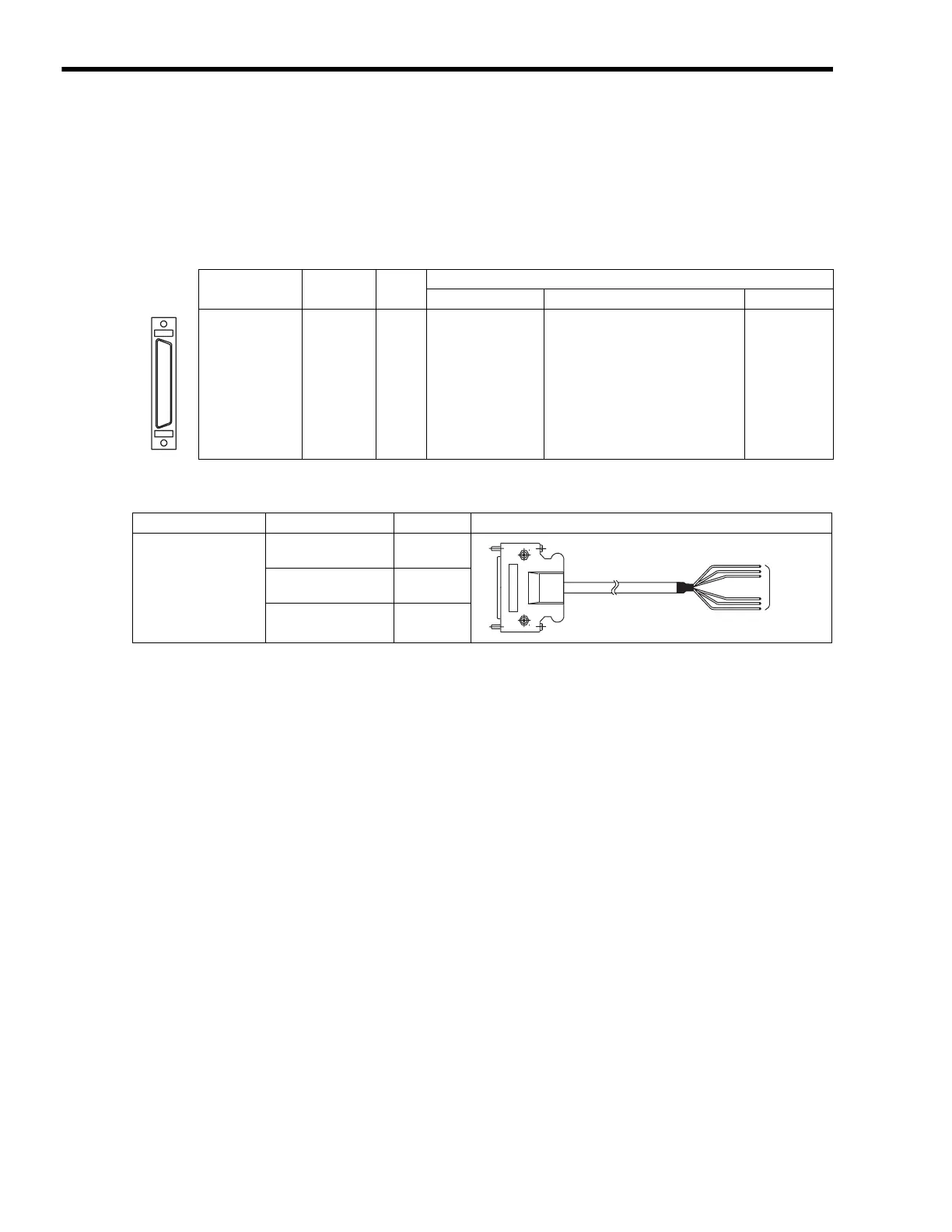

4.4.2 LIO-04/LIO-05 Module Connections
( 1 ) Connector Specifications
Connects external I/O signals and pulse input signals.
External input: 32 point, External output: 32 point
( 2 ) Standard Cable Model and External Appearance
Name
Connector
Name
No. of
Pins
Connector Model
Module Side Cable Side Manufacturer
External I/O
Connector
CN1/ CN2
50
10250-52A2JL
・
Connector
10150-3000VE
・
Shell
10350-52A0-008
(screw locking) or
10350-52F0-008
(one-touch locking)
Sumitomo
3M
Corporation
Name Model Length
External Appearance (JEPMC-6060-

)
Cable for LIO-04/
LIO-05 Modules
JEPMC-W6060-05 0.5 m
JEPMC-W6060-10 1 m
JEPMC-W6060-30 3 m
50-core
Loose wires
