11.2
Precautions When Setting or Changing User Definition Files and Scan Times
11-7

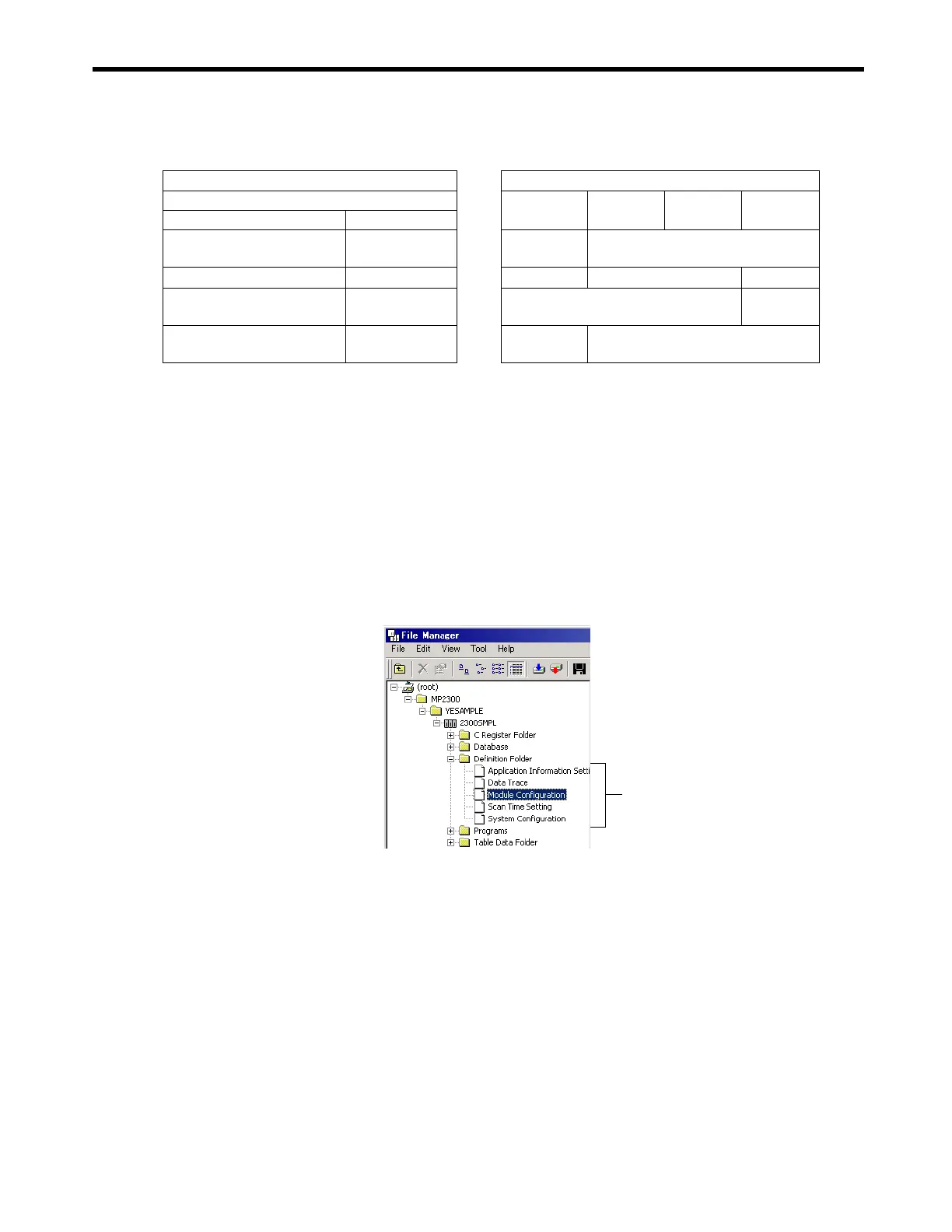

[ b ] SERVOPACK Parameters (2)

The above set values are written to the SERVOPACK’s RAM.
11.2 Precautions When Setting or Changing User Definition Files and
Scan Times
This section describes precautions for setting or changing user definition files and for setting the scan
times.
11.2.1 Setting or Changing User Definition Files
User definition files must be saved to flash memory (Save & Save to Flash).
Use the MPE720 to set or change a user definition file. Be sure to save the results to flash memory. If
data is not saved to flash memory, the settings and changes will be lost when the power supply to the
MP2300 is turned OFF and ON.
11.2.2 Setting or Changing Module Configuration Definition Files
Observe the following precautions when setting or changing module configuration definition files.
• Always check to make sure that the mounted Module is the one that is defined.
• Be sure to save any new settings or changes to flash memory.
• After the settings or changes have been completed, turn the power supply to the MP2300
OFF and ON.
MP2300
SERVOPACK
SERVOPACK Parameters
SGD-N,
SGDB-N
SGDH +
NS100
SGDH +
NS115
SGDS
Name Setting
Excessive Position Error
Area
65535
→
Cn-001E
－
Overflow Level 32767
→
－
Pn505
－
Excessive Position Error
Alarm Detection Level
2
30
-1
→
－
Pn520
Excessive Position Error
Warning Detection Level
100
→
－
Pn51E
User Definition Files
