YASKAWA JEPMC-MP2300-Y Series User Manual

5.5
Definition Data Refreshed by Self-configuration and Allocation Examples
5-43

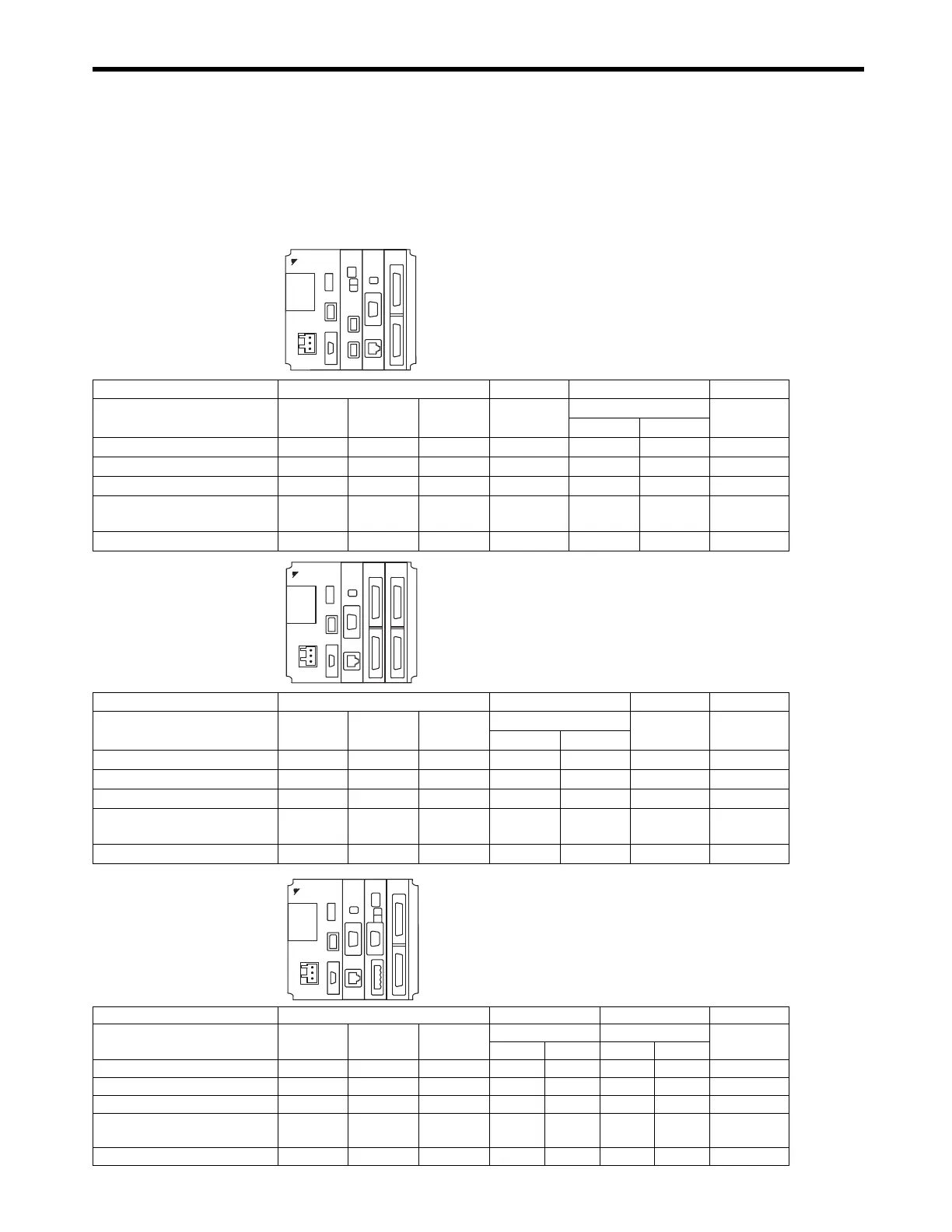

5.5.11 Examples of Register Allocation by Self-configuration
Module configuration definition examples when self-configuration is executed are shown below.

The configuration definitions shown below are only examples. The configuration definition differs
depending on Optional Module model, number of mounted modules, and module mounted slot
numbers.
MP2300
YASKAWA
218IF
-01
LIO-04
SVB
-01
■
Configuration Example 1:
SVB-01, 218IF-01, and LIO-04
Slot No. 00 01 02 03
Module Name
MP2300
I/O
MP2300
SVB
MP2300
SVR
SVB-01
218IF-01
LIO-04
217IF 218IF
Circuit Number
－
01 02 03 01 01
－
I/O Leading Register Number 0000 0010
－
0410
－－
0420
I/O End Register Number 0001 040F
－
080F
－－
0421
Motion Leading Register
Number
－
8000 8800 9000
－－－
Motion End Register Number
－
87FF 8FFF 97FF
－－－
■
Configuration Example 2:
218IF-01, LIO-04, and LIO-04
MP2300
YASKAWA
218IF
-01
LIO-04 LIO-04
Slot No. 00 01 02 03
Module Name
MP2300
I/O
MP2300
SVB
MP2300
SVR
218IF-01
LIO-04 LIO-04
217IF 218IF
Circuit Number
－
01 02 01 01
－－
I/O Leading Register Number 0000 0010
－－－
0410 0420
I/O End Register Number 0001 040F
－－－
0411 0421
Motion Leading Register
Number
－
8000 8800
－－－ －
Motion End Register Number
－
87FF 8FFF
－－－ －
■
Configuration Example 3:
218IF-01, 260IF-01, and LIO-04
MP2300
YASKAWA
218IF
-01
260IF
-01
LIO-04
Slot No. 00 01 02 03
Module Name
MP2300
I/O
MP2300
SVB
MP2300
SVR
218IF-01 260IF-01
LIO-04
217IF 218IF 217IF 260IF
Circuit Number
－
01 02 01 01 02 01
－
I/O Leading Register Number 0000 0010
－ －－－
0410 0810
I/O End Register Number 0001 040F
－ －－－
080F 0811
Motion Leading Register
Number
－
8000 8800
－－－－－
Motion End Register Number
－
87FF 8FFF
－－－－－
