2.1
Model System Startup Procedure
2-19

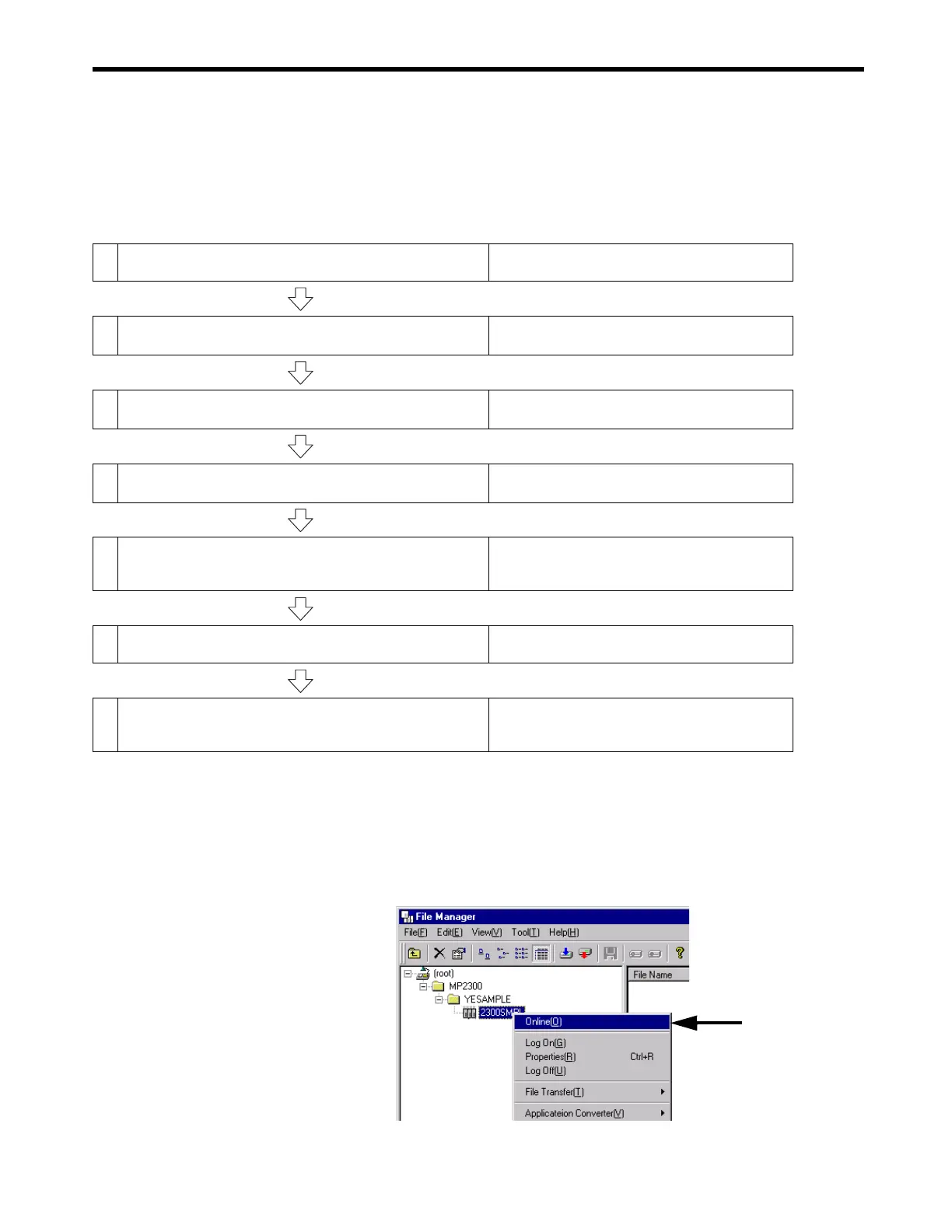

2.1.6 Reading Sample Programs and Setting and Saving Parameters
This section use sample programs to explain how to log on after being connected to the MP2300,
transfer programs, set motion fixed parameters, and log off. The following flowchart outlines the
order of the explanations.
( 1 ) Logging On Online
Use the following procedure to connect to the MP2300 and log on online to the MPE720 to transfer
programs.
1.
Right-click on the Controller Folder that has been created and select Online from the
pop-up menu that is displayed.
A confirmation dialog box will be displayed. Click the Ye s Button to switch to online mode.

The communication mode cannot be changed while logging on to the Controller folder is
1.
Log On Online
Connect to MP2300 and log on to MPE720.
→
2.1.6 ( 1 ) Logging On Online on page 2-19
2.
Load Sample Programs
Load sample programs from MPE720 system CD-ROM.
→
2.1.6 ( 2 ) Loading the Sample Programs on page
2-23
3.
Transfer Individual Sample Programs
Select a sample program to be transferred and transfer to MP2300.
→
2.1.6 ( 3 ) Transfer Individual Programs on page
2-25
4.
Set the Motion Fixed Parameters
Set the motion fixed parameters to match the sample program.
→
2.1.6 ( 4 ) Set and Save Motion Fixed Parameters
on page 2-28
5.
Adjust the Servo and Save the SERVOPACK Parameters
Make Servo adjustments and save the SERVOPACK parameters for
each axis.
→
2.1.6 ( 5 ) Making Servo Adjustments and Saving
SERVOPACK Parameters on page 2-30
6.
Save to Flash Memory
Save the sample program to the MP2300 flash memory.
→
2.1.6 ( 6 ) Saving to Flash Memory on page 2-31
7.
Transfer All Files to Hard Disk
Save the MP2300 data in the hard disk of the personal computer for
backup.
→
2.1.6 ( 7 ) Dumping All Data on page 2-33
To Next Page
