3.4.3 LIO-04/LIO-05 Modules
( 1 ) Outline of Functions
The LIO-04/LIO-05 Module is equipped with the following digital I/O functions.
LIO-04: 32 digital inputs (DI) and 32 digital outputs (DO) (sink mode output)
LIO-05: 32 digital inputs (DI) and 32 digital outputs (DO) (source mode output)

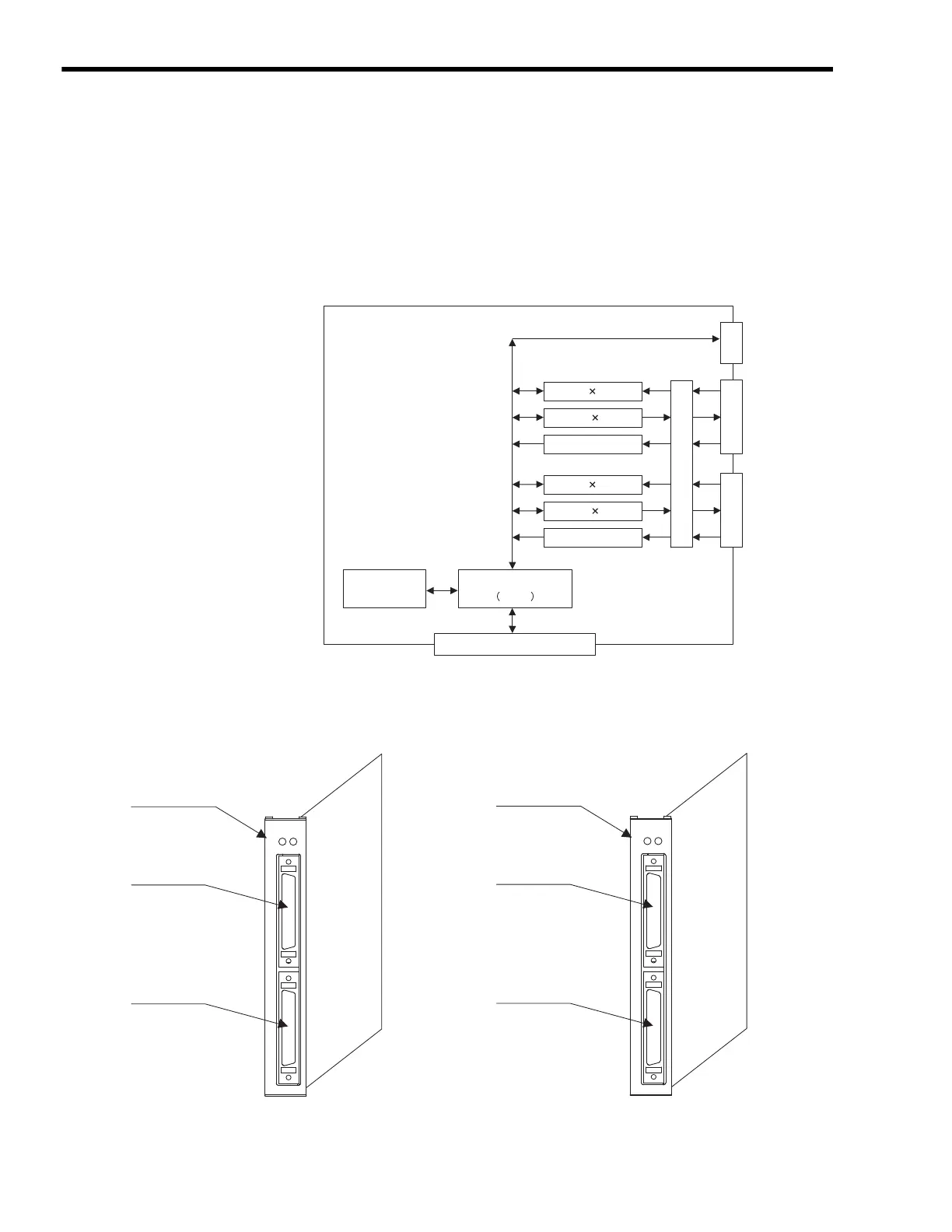

The following diagram outlines the functions of LIO-04/LIO-05 Module.
( 2 ) External Appearance and LED Indicators
[ a ] LIO-04 Module External Appearance
　　　　　　
[ b ] LIO-05 Module External Appearance
BUS interface
FPGA
ID register
MOD register
BUS connector CN3
Photocoupler
LED
DI 16
DO 16
Fuse blowout
detection
CN1
DI 16
DO 16
Fuse blowout
detection
CN2
LED indicators
I/O connector 1
I/O connector 2
LIO-04
FURUN
CN1
CN2
LED indicators
I/O connector 1
I/O connector 2
LIO-05
FURUN
CN1
CN2
