YASKAWA JEPMC-MP2300-Y Series User Manual

4
Mounting and Wiring
4.5.2
217IF-01 Module
4-64
4.5.2 217IF-01 Module
( 1 ) Connectors

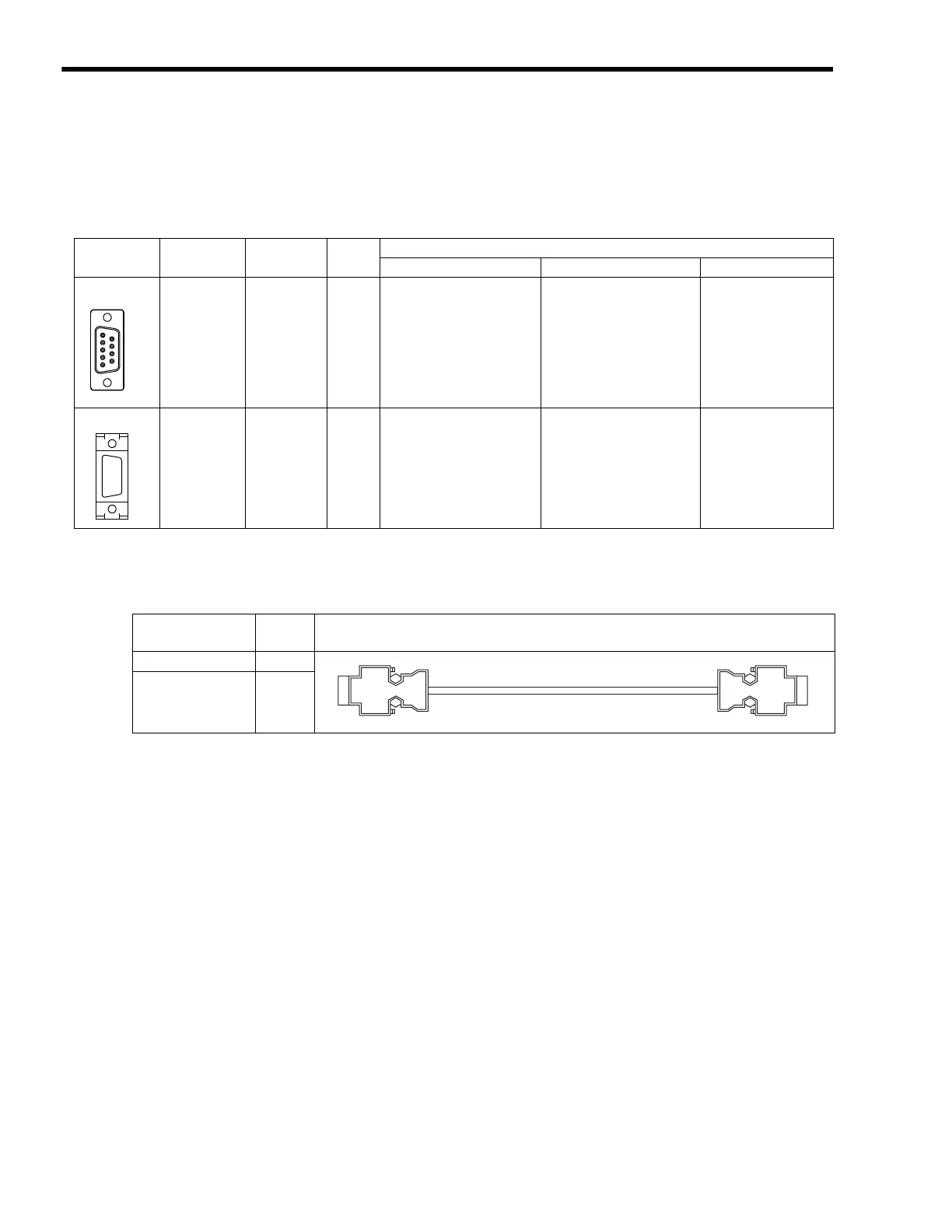

The following diagram shows the 217IF-01 Module connectors.
( 2 ) Cables
■
RS-232C Cable
■
RS422/485 Cable
The standard cables for RS422/485 are not available. Assemble the cable using the connector speci-
fied in (1) and a commercially available cable.
Connector Name
Connector
Name
No. of
Pins
Connector Model
Module Cable Manufacturer
RS-232C PORT 9
17LE-13090-27(D2BC)
9-pin D-sub
female connector
17JE-23090-02 (D8B)
9-pin D-sub
male connector
DDK Ltd.
RS422/485
port
RS422/
485
14
10214-52A2JL connector
10114-3000VE connector
10314-52A0-008 shell
Sumitomo 3M
Limited.
PORT
RS422/485
Model Number Length
(JEPMC-W5311-

)
JEPMC-W5311-03 2.5 m
JEPMC-W5311-15 15 m
