4
Mounting and Wiring
4.1.1
Mounting MP2300
4-2
4.1 Handling MP2300
4.1.1 Mounting MP2300
There are two methods for mounting MP2300.
• Using screws
• Using DIN rail

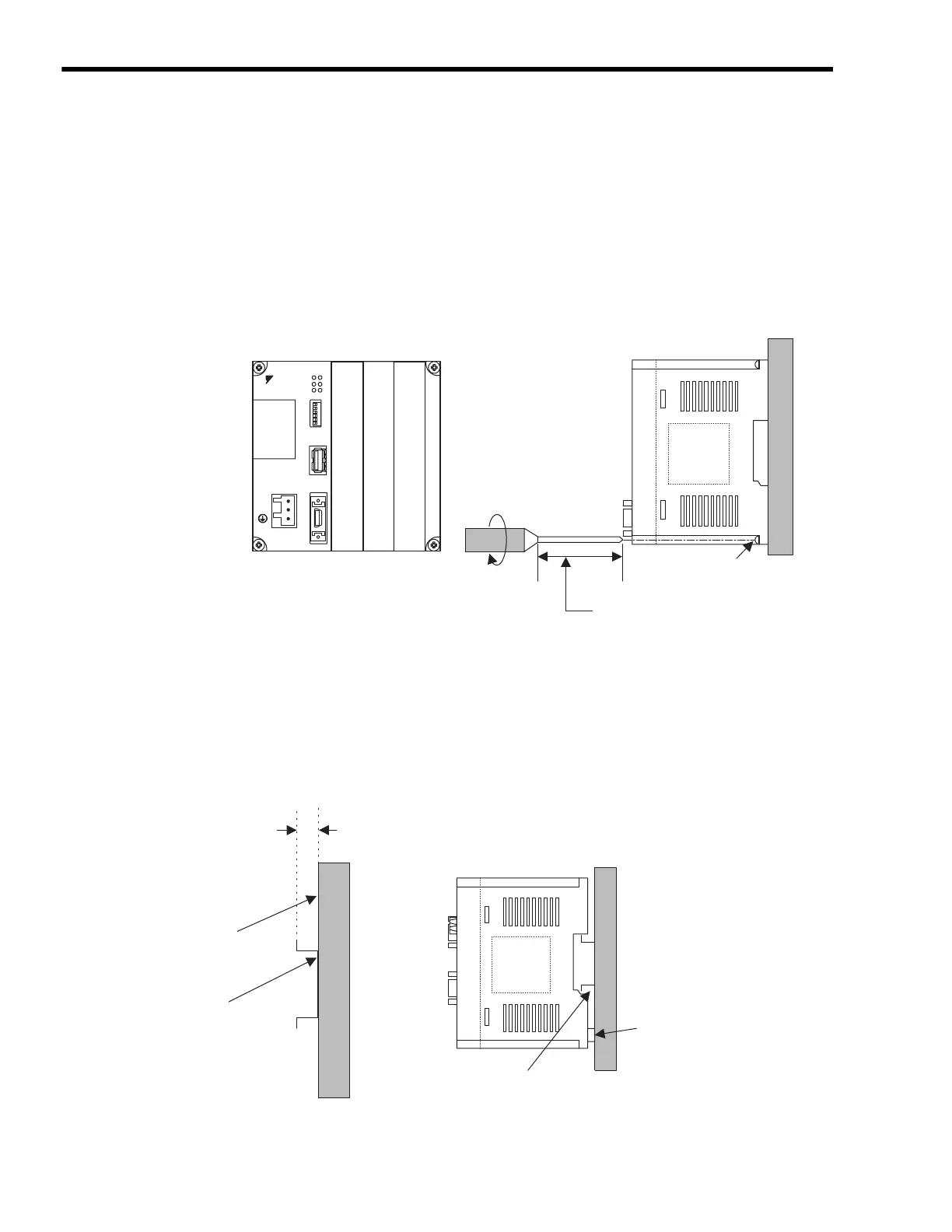

( 1 ) Screw Mounting
Place the MP2300 against the mounting base and tighten the
four
mounting screws
.
( 2 ) DIN Rail Mounting
[ a ] DIN Rails and Spacer
Two types of DIN rails are available: with 7-mm or 10-mm gap from the mounting base as shown in
the following diagram. If mounting a MP2300 using DIN rail with 10 mm gap, install a spacer on the
rear of the MP2300 near the bottom to protect the MP2300 from vibration and shock.

The parts for mounting the MP2300 to the DIN rail are sold separately. Purchase the following
product when using DIN rail.
Product name: DIN Rail Mounting Parts
Model No.: JEPMC-OP300
Mounting screw
(M4 Phillips screw)
Use a screwdriver with a blade
length of 10 cm or more.
Note: Mount the MP2300 verticall
y
on the wall, as shown in the above dia
g
ram.
DC24V
DC 0V
MP2300
YASKAWA
TEST
Option
Option
RDY
ALM
TX
RUN
ERR
BAT
MON
CNFG
INT
SUP
STOP
SW1
OFF ON
BATTERY
CPU I/O
Option
M-I/II
Mounting base
DIN rail
Gap from mounting base: 7.0 mm or 10.0 mm
DIN rail
Space
r
For a 10-mm gap
