YASKAWA JEPMC-MP2300-Y Series User Manual

4
Mounting and Wiring
4.5.1
218IF-01 Module
4-60
4.5 Communication Module (Optional) Connections
4.5.1 218IF-01 Module

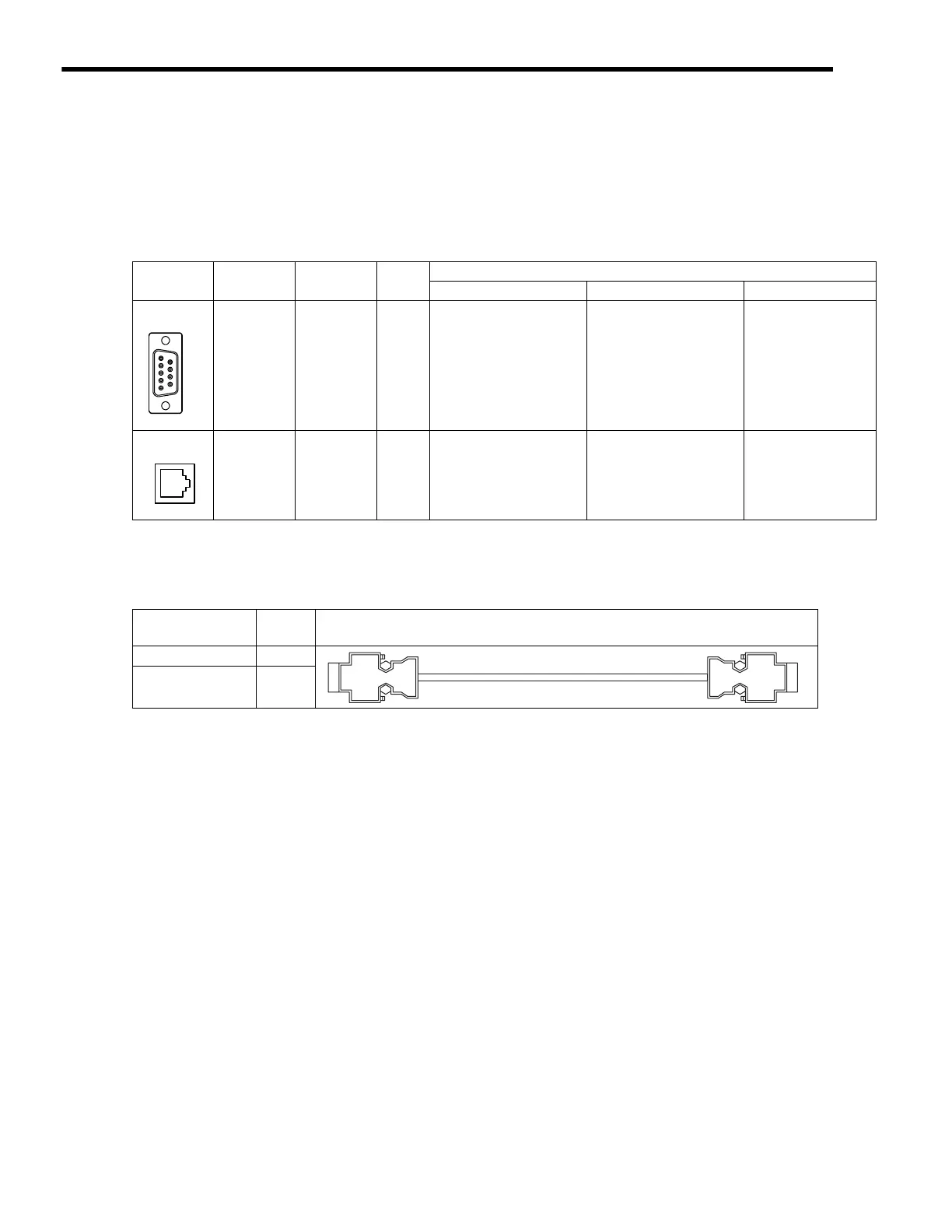

( 1 ) Connector Specifications
( 2 ) Cables
■
RS-232C Cable
■
Ethernet Cable
The standard cables for Ethernet are not available. Use 10Base-T cross or straight cables.
Connector Name
Connector
Name
No. of
Pins
Connector Model
Module Cable Manufacturer
RS-232C PORT 9
17LE-13090-27(D2BC)
9-pin D-sub
female connector
17JE-23090-02
(
D8B)
9-pin D-sub
male connector
DDK Ltd.
Ethernet 10Base-T 8
555153-1
10Base-T
Ethernet connector
(modular jack)
−
Tyco Electronics
AMP K.K.
PORT
10Base-T
Model Number Length
Appearance
(JEPMC-W5311-

)
JEPMC-W5311-03 2.5 m
JEPMC-W5311-15 15 m
