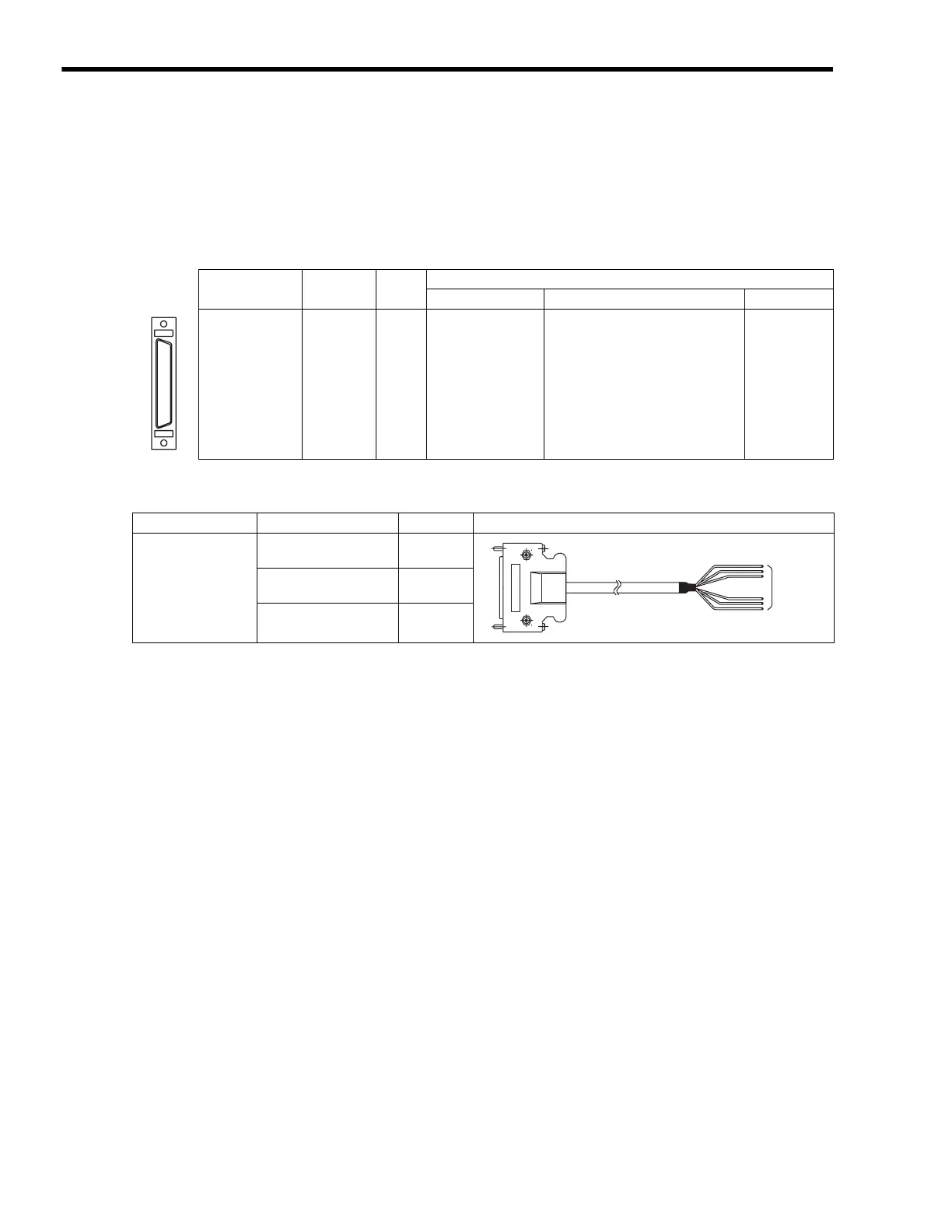

4.4.3 DO-01 Module Connections
( 1 ) Connector Specifications
Connects the DO-01 Module to external output signals.
External outputs: 64 points
( 2 ) Standard Cable Model and External Appearance
Name
Connector
Name
No of
Pins
Connector Model
Module Side Cable Side Manufacturer
External I/O
Connector
CN1/CN2
50
10250-52A2JL
・
Connector
10150-3000VE
・
Shell
10350-52A0-008
(Screw locking), or
10350-52F0-008
(One-touch locking)
Sumitomo
3M
Corporation
Name Model Length
External Appearance (JEPMC-W6060-

)
Cables for DO-01
Modules
JEPMC-W6060-05 0.5 m
JEPMC-W6060-10 1.0 m
JEPMC-W6060-30 3.0 m
50-core
Loose wires
