YASKAWA JEPMC-MP2300-Y Series User Manual

4
Mounting and Wiring
4.3.2
SVA-01 Module Connections
4-22

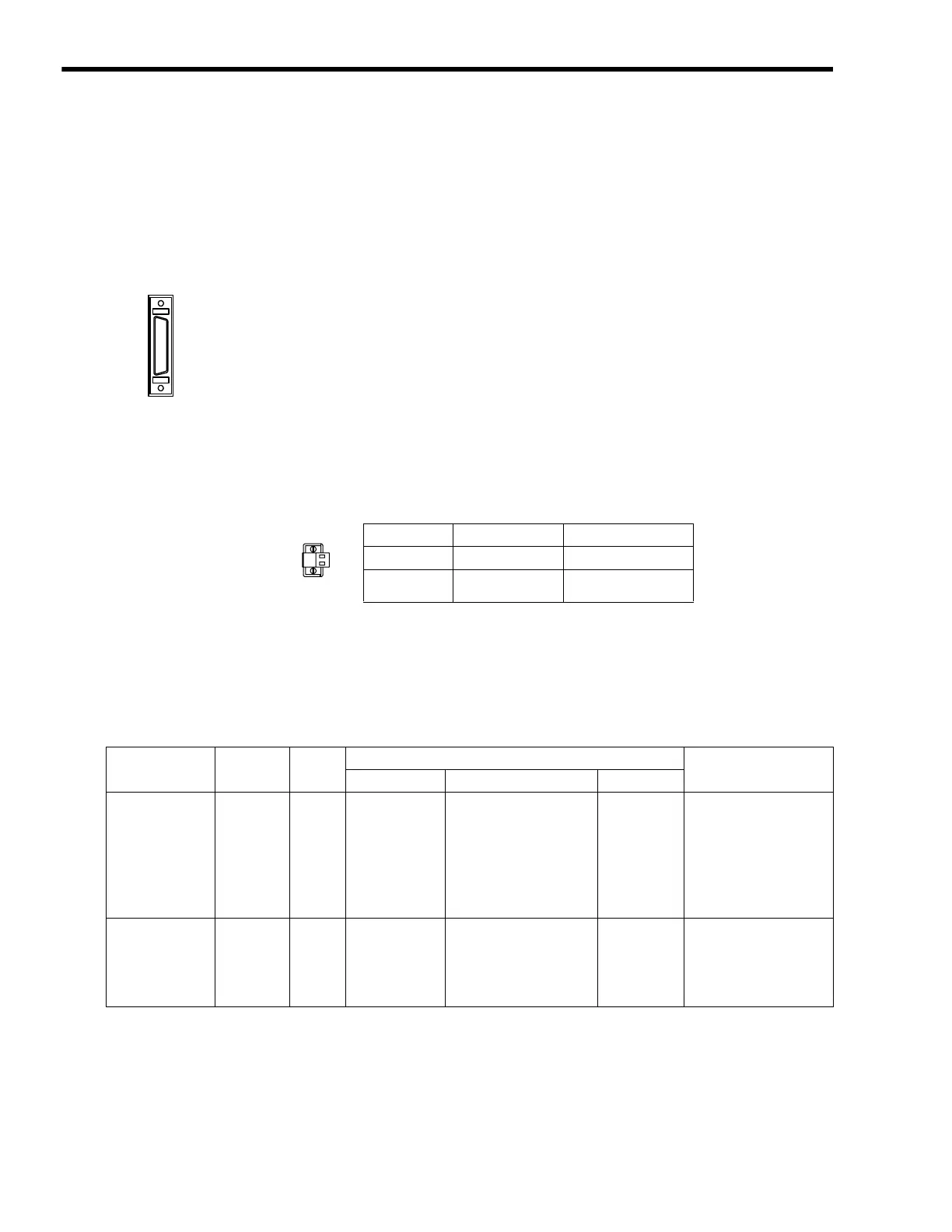

4.3.2 SVA-01 Module Connections
The Servo interface connectors connect the SVA-01 Module to analog Servos.
( 1 ) Connectors
[ a ] Servo Interface Connectors (CN1 and CN2)
[ b ] 24-V Input Connector (CN3)
This connector connects the SVA-01 Module to +24 VDC as a Servo I/O power supply.
A screw terminal connector is used (BL3.5/2F-AU manufactured by Weidmuller).
* Refer to 2.2.3 (1) (d) Connection Procedure for 24-V Input Cable of Machine Controller
MP220/MP2300 Motion Module User’s Manual (Manual No. SIEP C880700 16

) for infor-
mation on how to connect the 24-V input cable.
[ c ] Connector Specifications
The following table shows the connector specifications
.
These connectors connect the SVA-01 Module to two SERVOPACKs.
They are connected using the following standard cable.
• JEPMC-W2040-

(For SGDH, SGDM, and SGDS SERVOPACKs)

The user must provide cables for SGDA and SGDB SERVOPACKs.
Pin No. Signal Name Name
2 24V +24 VDC input
10V 0 V
DC IN
ON
+24V
Name
Connector
Name
No. of
Pins
Connector Model
Cable Model Numbers
Module Side Cable Side Manufacturer
Servo Interface
Connector 1 and
Connector 2
CN1
CN2
36
10236-52A2JL
• Connector body:
10136-3000VE
• Shell:
10336-52A0-008
(Screw locking)
10336-52F0-008
(One-touch locking)
3M
JEPMC-W2040-

(For the SGDH, SGDM,
and SGDS
SERVOPACKs)
24-V Input
Connector
CN3
2
−
• BL3.5/2F-AU
Weidmuller
The CN3 connector is
included with the SVA-
01 Module, but a cable is
not included. The user
must connect the cable.
