Module Specifications
3.4.1
LIO-01/LIO-02 Modules
3-24
3.4 I/O Modules (Optional)
The I/O Modules that can be mounted to the MP2300 are LIO-01, LIO-02, LIO-04, LIO-05, DO-01
and AI-01 Modules.
3.4.1 LIO-01/LIO-02 Modules
( 1 ) Outline of Functions
The LIO-01 and LIO-02 Modules have digital I/O and pulse counter functions. There are 16 digital
inputs (DI) and 16 digital outputs (DO) (LIO-01: sink mode outputs, LIO-02: source mode outputs)
for the digital I/O function. There is also 1 pulse input (PI) channel for the pulse counter function. I/
O is refreshed on a fixed cycle for the digital I/O and pulse counter functions, occurring every

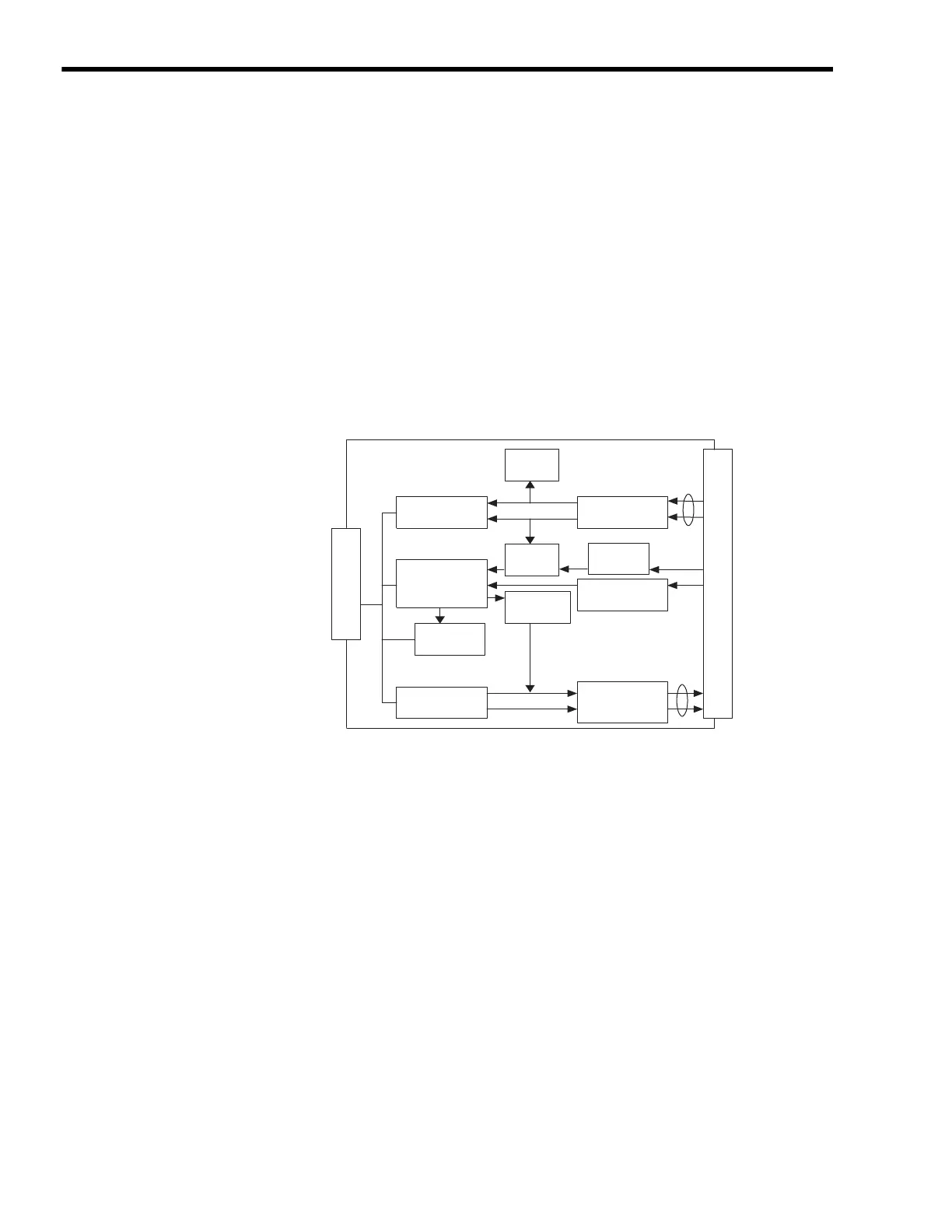

MP2300 high-speed and low-speed scan. The following diagram gives an outline of the LIO-01 and
LIO-02 Module functions.
Output processing
Coincidence
output
Pulse input
processing
Latch
input
Input processing
Input port
(Isolated DI)
(Isolated DI)
5-V differential
A/B input
System bus
Interrupt
input
Coincidence
interrupt
Output port
(Sink mode output)
5-V/12-V
Z input
16 points
16 points
I/O connector
DI-00
DI-01
DO-00
