2
System Startup and Sample Programs
2.1.6
Reading Sample Programs and Setting and Saving Parameters
2-20
performed when using MPE720. If a Cannot change to CPU while logged on message is
displayed when Online is selected, refer to 2.1.6 ( 9 ) Logging Off on page 2-35 and log off
from the Controller folder.
2.

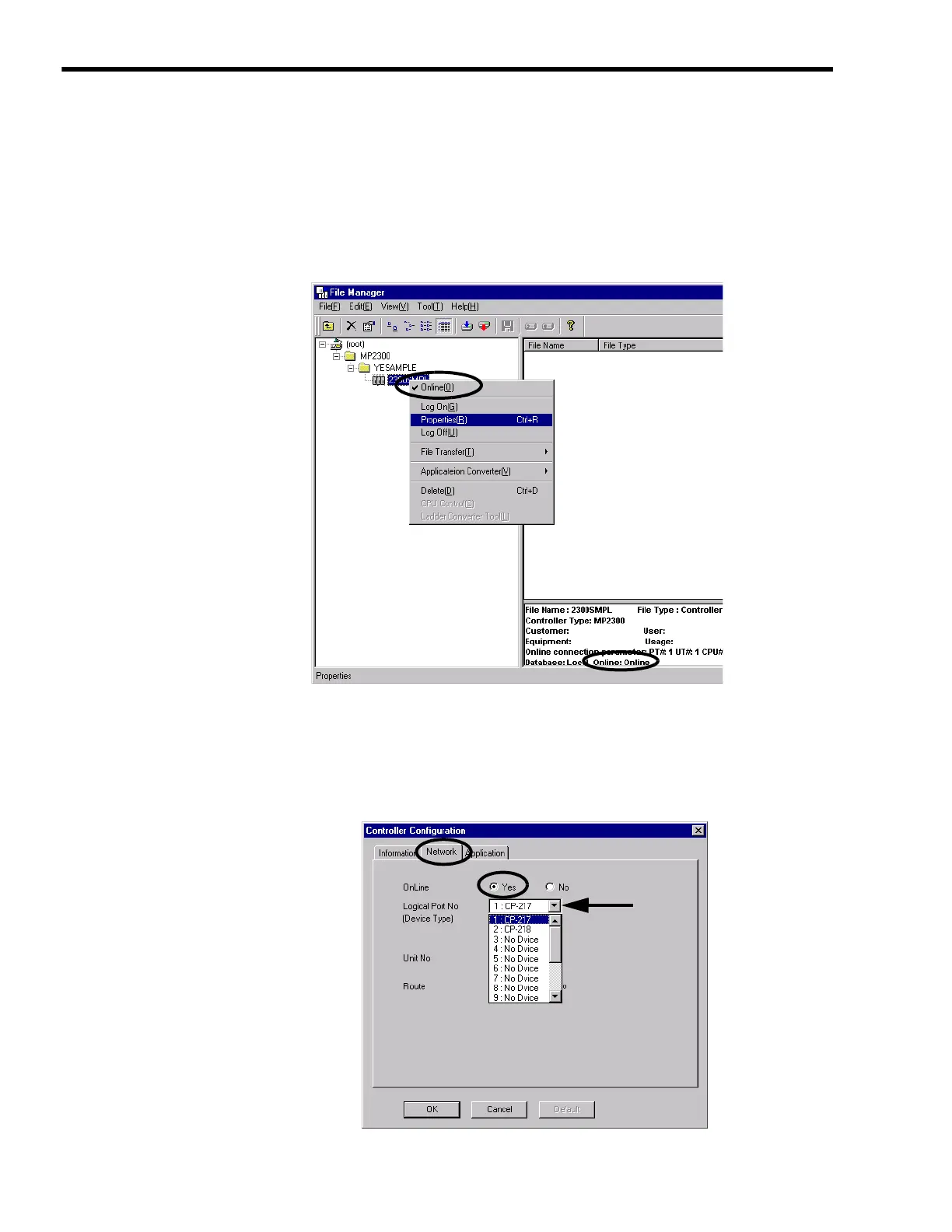

Right-click on the Controller Folder that was selected in step 1 and select Properties
from the pop-up menu that is displayed. Check that a check mark appears to the left of
Online and Online is displayed in the data area at the bottom right of the window.
The Controller Configuration Dialog Box will appear.
3.
Select the Network Tab Page and check that OnLine is set to Yes. Under Logical Port
No. (Device Type), select the logical port number to be used, from the logical ports set
using the communication process. The contents displayed on the tab page changes
according to the selected port number.

CP217 represents the RS-232C connection (serial port), and CP218 represents the Ethernet
connection.
To Next Page
