YASKAWA JEPMC-MP2300-Y Series User Manual

4.1
Handling MP2300
4-7

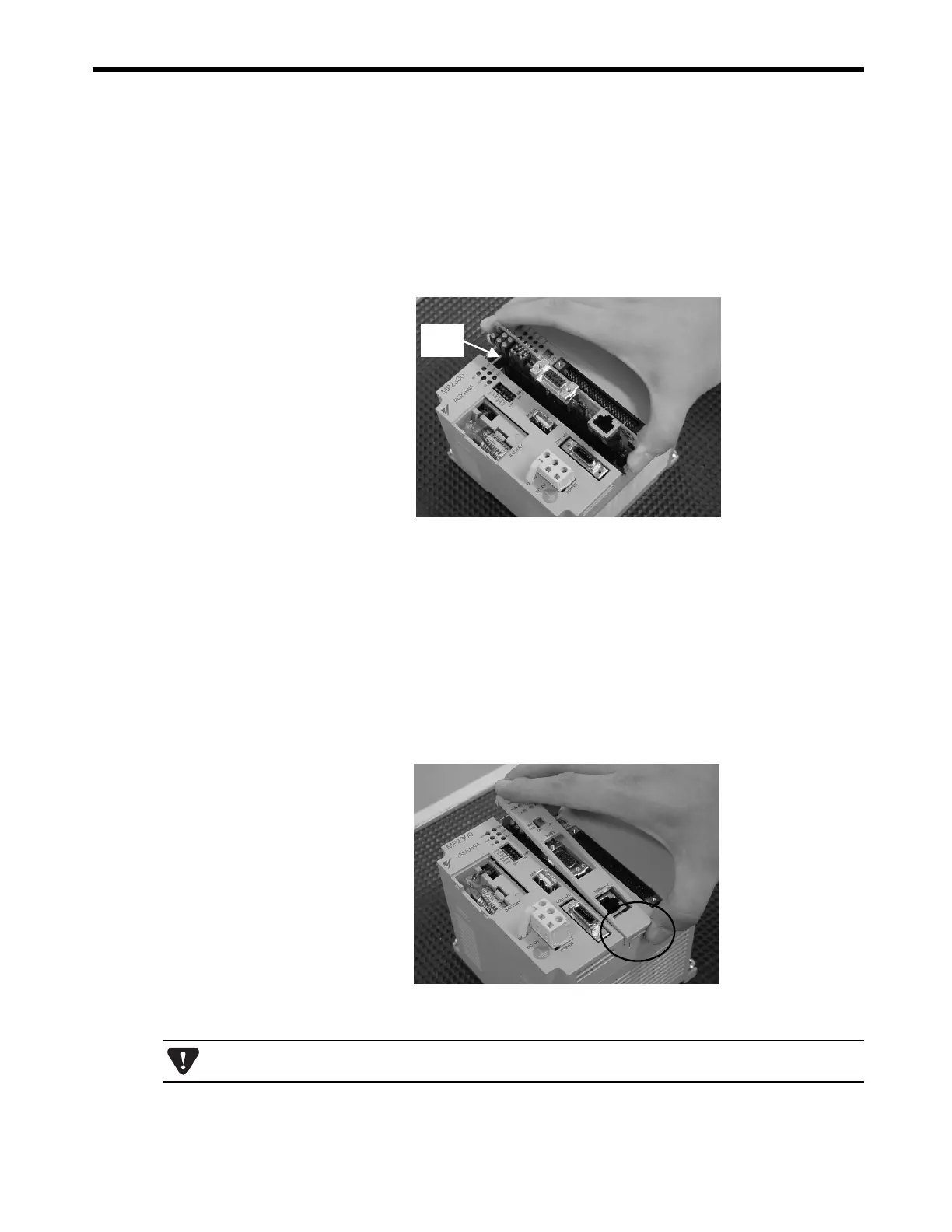

( 3 ) Installing Optional Modules
1.
Insert Optional Modules.
Hold the top and bottom of the Module to be installed, line up the Module on the left-side guide
rail inside the Option Slot, and then insert it straight.

The FG bar on the inside bottom of the Unit Case may be damaged if the Module is not
inserted straight.
2.
Mount on to the mounting base.
Once the Optional Module has been completely inserted, place your hand on the front face of
the Optional Module and push hard until the Optional Module has been inserted into the
mounting base connectors. The front face of the Optional Module and the hook will be aligned
when the Optional Module has been installed properly.
3.
Install the panel of the Optional Module.
Place the hole on the bottom of the
panel of the Optional Module
onto the hook on the bottom
of the MP2300. Next, hook the hole at the top of the
panel of the Optional Module
onto the
hook at the top of the MP2300.
This completes the Optional Module mounting procedure.
Guide
rail

Always cover the empty slots with covers (Option: JEPMC-OP2300).
