YASKAWA JEPMC-MP2300-Y Series User Manual

4
Mounting and Wiring
4.3.2
SVA-01 Module Connections
4-24
( 2 ) Cable Specifications and Connections
[ a ] Cables
The following standard cables are available for use with the SVA-01 Module. These cables are
used to connect the SVA-01 Module to SERVOPACKs, overtravel limit switches, and other
machines.
[ b ] SERVOPACK Connection Cable JEPMC-W2040-


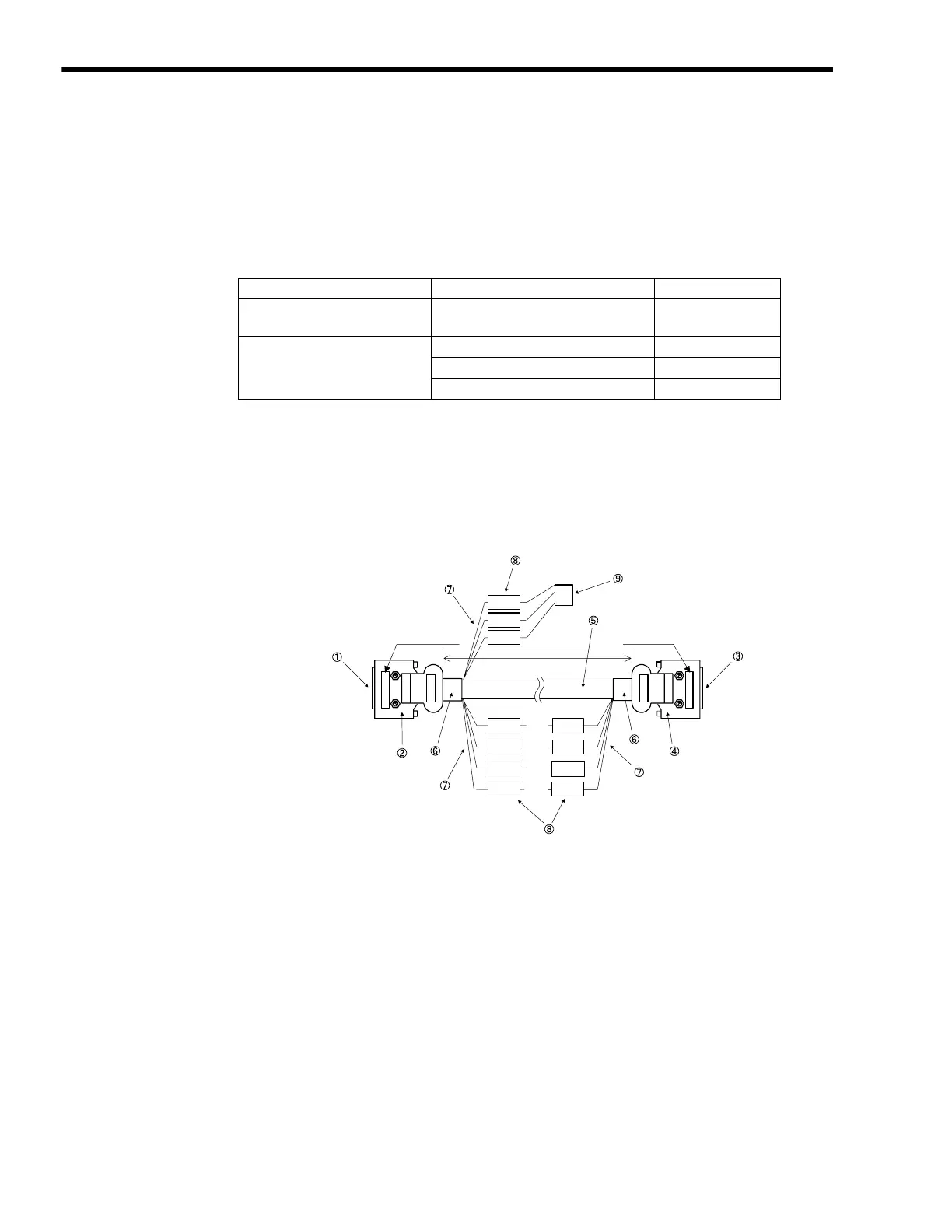

The external appearance, specifications and connections diagram of the standard cable JEPMC-
W2040-

for SGDM, SGDH, SGDS-

01

, and SGDS-

02

SERVOPACKs are
shown below.
■
External Appearance
Applicable SERVOPACKs Model Length
SGDA-S,
SGD
B
-
No standard cable is available.
－
SGDM, SGDH,
SGD
S-

01
，
SGDS-

02

JEPMC-W2040-A5
0.5 m
JEPMC-W2040-01
1.0 m
JEPMC-W2040-03
3.0 m
L
OTF
OTR
EXT
BAT 0
BAT
NP:SERVOPACKNP:SVA
/B RK +
GND
AI _2
AI _1
ZERO /BRK -
