LIO-04/LIO-05 Module Connections
4-38
( 5 ) LIO-05 Module Connector Pin Arrangement

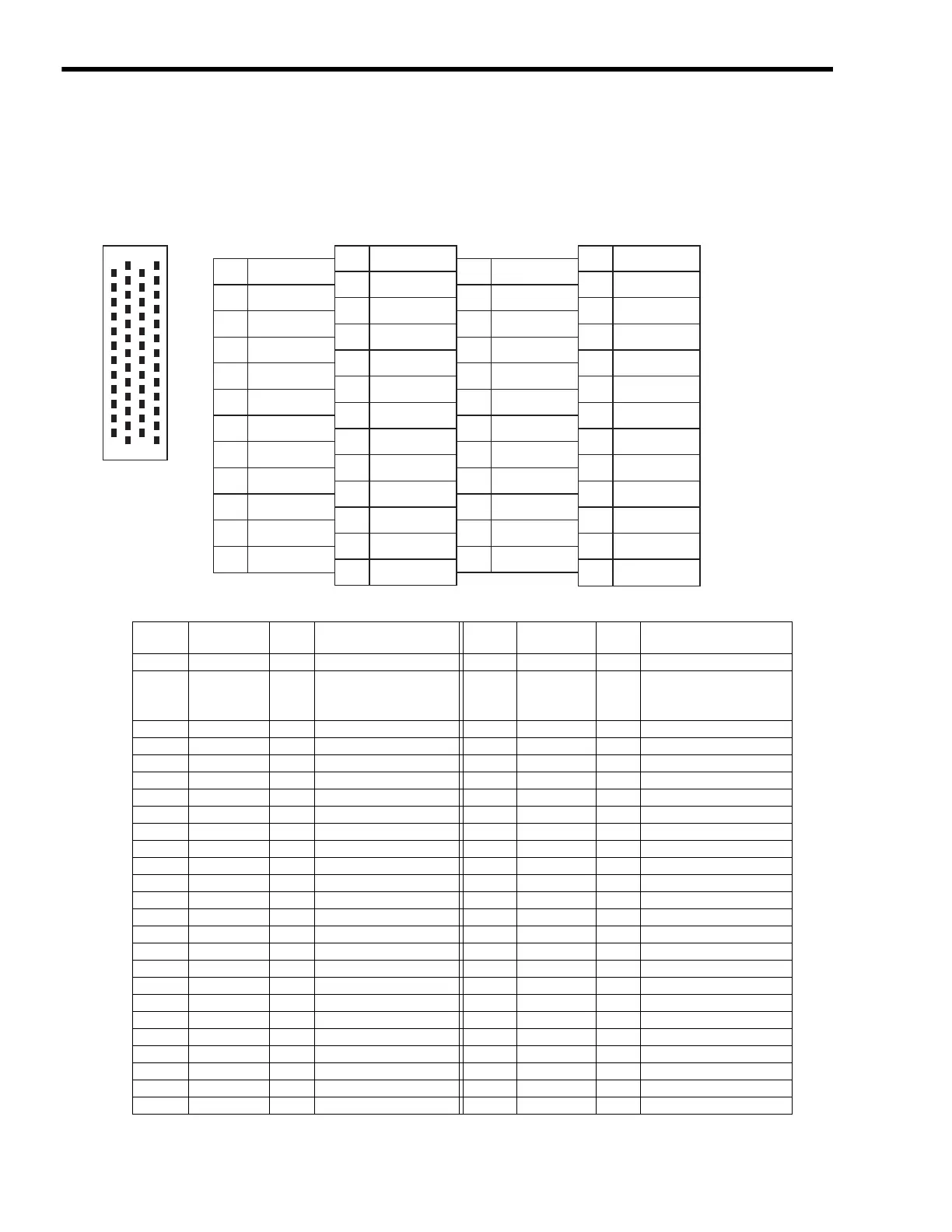

The LIO-05 Module Connector (CN1 and CN2) pin arrangements are shown below.
â–
CN1 Connector Pin Arrangement
â–
CN1 Connector Details

P: Power supply input, I: Input signal, O: Open collector output
1
3
5
7
9
11
13
15
17
19
21
23
25
DICOM_1
DI_02
DI_06
DI_08
DI_12
DO_02
+24V_1
DO_06
DO_08
DO_12
26
28
30
32
34
36
38
40
42
44
46
48
50
DI_03
DI_07
DI_09
DI_13
DO_03
+24V_1
DO_07
DO_09
OV_2
DO_13
27
29
31
33
35
37
39
41
43
45
47
49
DI_01
DI_05
DI_11
DI_15
DO_01
OV_1
DO_05
DO_11
+24V_2
DO_15
50
49
25
24
26
27
1
2
Pin Arrangement Viewing from Wiring Side
2
4
6
8
10
12
14
16
18
20
22
24
DI_00
DI_04
DICOM_2
DI_10
DI_14
DO_00
DO_04
DO_10
+24V_2
DO_14
Pin No.
Signal
Name
I/O Remarks Pin No.
Signal
Name
I/O Remarks
1DICOM_1 I Input common 1 26
2 DI_00 I
Digital input 0
(shared with interrupt
input)
27 DI_01 I
Digital input 1
(shared with interrupt
input)
3 DI_02 I Digital input 2 28 DI_03 I Digital input 3
4 DI_04 I Digital input 4 29 DI_05 I Digital input 5
5 DI_06 I Digital input 6 30 DI_07 I Digital input 7
6DICOM_2 P Input common 2 31
7 DI_08 I Digital input 8 32 DI_09 I Digital input 9
8 DI_10 I Digital input 10 33 DI_11 I Digital input 11
9 DI_12 I Digital input 12 34 DI_13 I Digital input 13
10 DI_14 I Digital input 14 35 DI_15 I Digital input 15
11 36
12 DO_00 O Digital output 0 37 DO_01 O Digital output 1
13 DO_02 O Digital output 2 38 DO_03 O Digital output 3
14 39 OV_1 O Common ground 1
15 +24V_1 P 24-V power supply 1 40 +24V_1 P 24-V power supply 1
16 DO_04 O Digital output 4 41 DO_05 O Digital output 5
17 DO_06 O Digital output 6 42 DO_07 O Digital output 7
18 43 O
19 DO_08 O Digital output 8 44 DO_09 O Digital output 9
20 DO_10 O Digital output 10 45 DO_11 O Digital output 11
21 46 OV_2 O Common ground 2
22 +24V_2 P 24-V power supply 2 47 +24V_2 P 24-V power supply 2
23 DO_12 O Digital output 12 48 DO_13 O Digital output 13
24 DO_14 O Digital output 14 49 DO_15 O Digital output 15
25 50
