DO-01 Module Connections
4-48
( 4 ) Connector Pin Arrangement
The DO-01 Module Connector (CN1 and CN2) pin arrangement is shown below.
â–

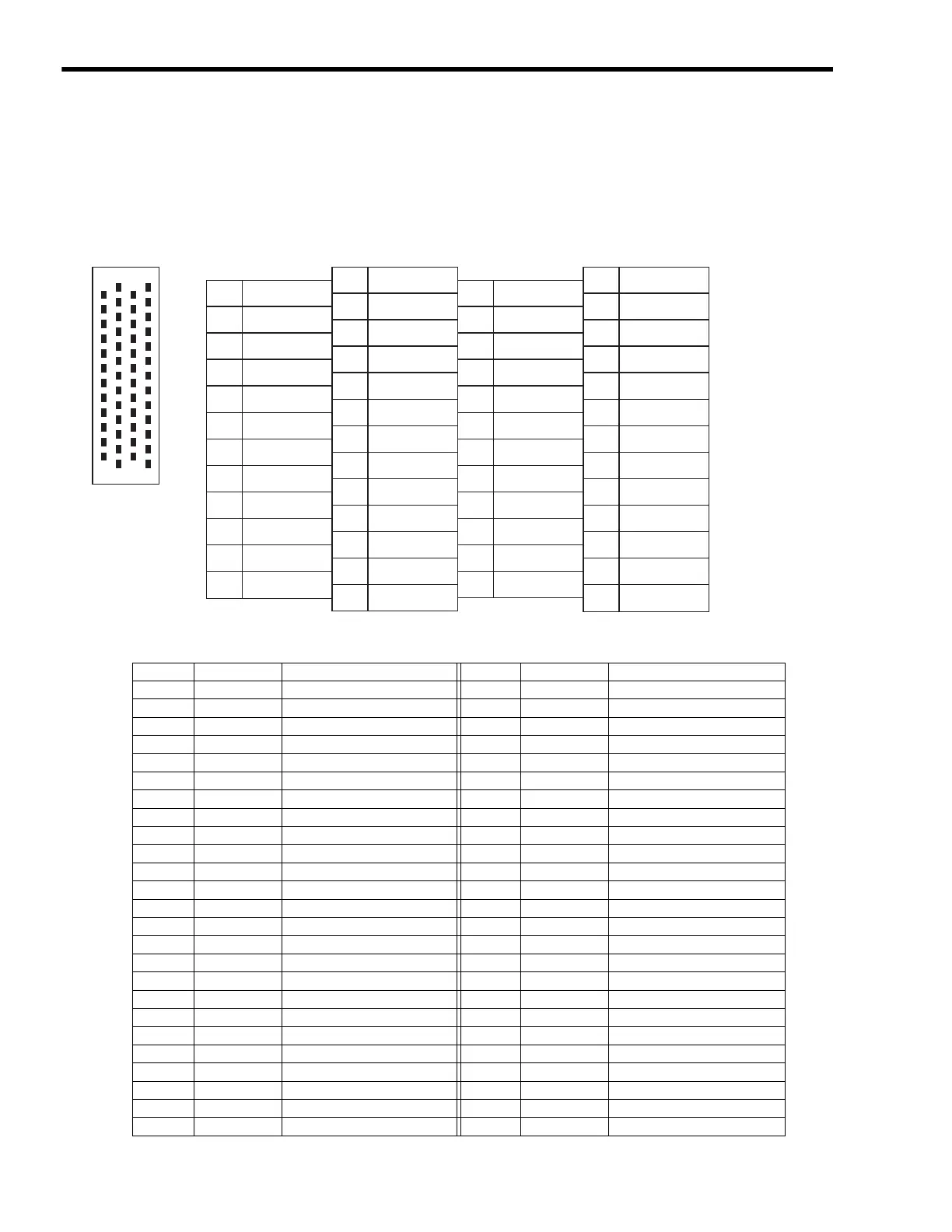

CN1 Connector Pin Arrangement
â–
CN1 Connector Details
1
3
5
7
9
11
13
15
17
19
21
23
25
+24V_1
DO_02
DO_06
+24V_2
DO_10
DO_14
+24V_3
DO_18
DO_22
+24V_4
DO_26
DO_30
26
28
30
32
34
36
38
40
42
44
46
48
50
OV_1
DO_03
DO_07
OV_2
DO_11
DO_15
OV_3
DO_19
DO_23
OV_4
DO_27
DO_31
27
29
31
33
35
37
39
41
43
45
47
49
DO_01
DO_15
OV_1
DO_09
DO_13
OV_2
DO_17
DO_21
OV_3
DO_25
DO_29
OV_4
50
49
25
24
26
27
1
2
Pin Arrangement Viewing from Wiring Side
2
4
6
8
10
12
14
16
18
20
22
24
DO_00
DO_04
OV_1
DO_08
DO_12
OV_2
DO_16
DO_20
OV_3
DO_24
DO_28
OV_4
Pin No. Signal Name Remarks Pin No. Signal Name Remarks
1 +24V_1 24-V power supply 0 26 0V_1 Common ground 1
2 DO_00 Digital output 0 27 DO_01 Digital output 1
3 DO_02 Digital output 2 28 DO_03 Digital output 3
4 DO_04 Digital output 4 29 DO_05 Digital output 5
5 DO_06 Digital output 6 30 DO_07 Digital output 7
6 0V_1 Common ground 1 31 0V_1 Common ground 1
7 +24V_2 24-V power supply 2 32 0V_2 Common ground 2
8 DO_08 Digital output 8 33 DO_09 Digital output 9
9 DO_10 Digital output 10 34 DO_11 Digital output 11
10 DO_12 Digital output 12 35 DO_13 Digital output 13
11 DO_14 Digital output 14 36 DO_15 Digital output 15
12 0V_2 Common ground 2 37 0V_2 Common ground 2
13 +24V_3 24-V power supply 3 38 0V_3 Common ground 3
14 DO_16 Digital output 16 39 DO_17 Digital output 17
15 DO_18 Digital output 18 40 DO_19 Digital output 19
16 DO_20 Digital output 20 41 DO_21 Digital output 21
17 DO_22 Digital output 22 42 DO_23 Digital output 23
18 0V_3 Common ground 3 43 0V_3 Common ground 3
19 +24V_4 24-V power supply 4 44 0V_4 Common ground 4
20 DO_24 Digital output 24 45 DO_25 Digital output 25
21 DO_26 Digital output 26 46 DO_27 Digital output 27
22 DO_28 Digital output 28 47 DO_29 Digital output 29
23 DO_30 Digital output 30 48 DO_31 Digital output 31
24 0V_4 Common ground 4 49 0V_4 Common ground 4
25 50
