5
Outline of Motion Control Systems
5.2.2
Execution Control of Drawings
5-8
Low-speed scan processing is executed in spare processing time of the high-speed scan. Set the time
of the high-speed scan to approximately double the total execution time for DWG.H.
( 3 ) Hierarchical Structure of Drawings
Each processing program is made up of parent drawings, child drawings, and grandchild drawings.
Parent drawings cannot call child drawings from a different type of drawing and child drawings can-
not call grandchild drawings from a different type of drawing. Also, parent drawings cannot directly
call grandchild drawings. Child drawings are always called from parent drawings and grandchild
drawings are always called from child drawings. This is the hierarchical structure of drawings.

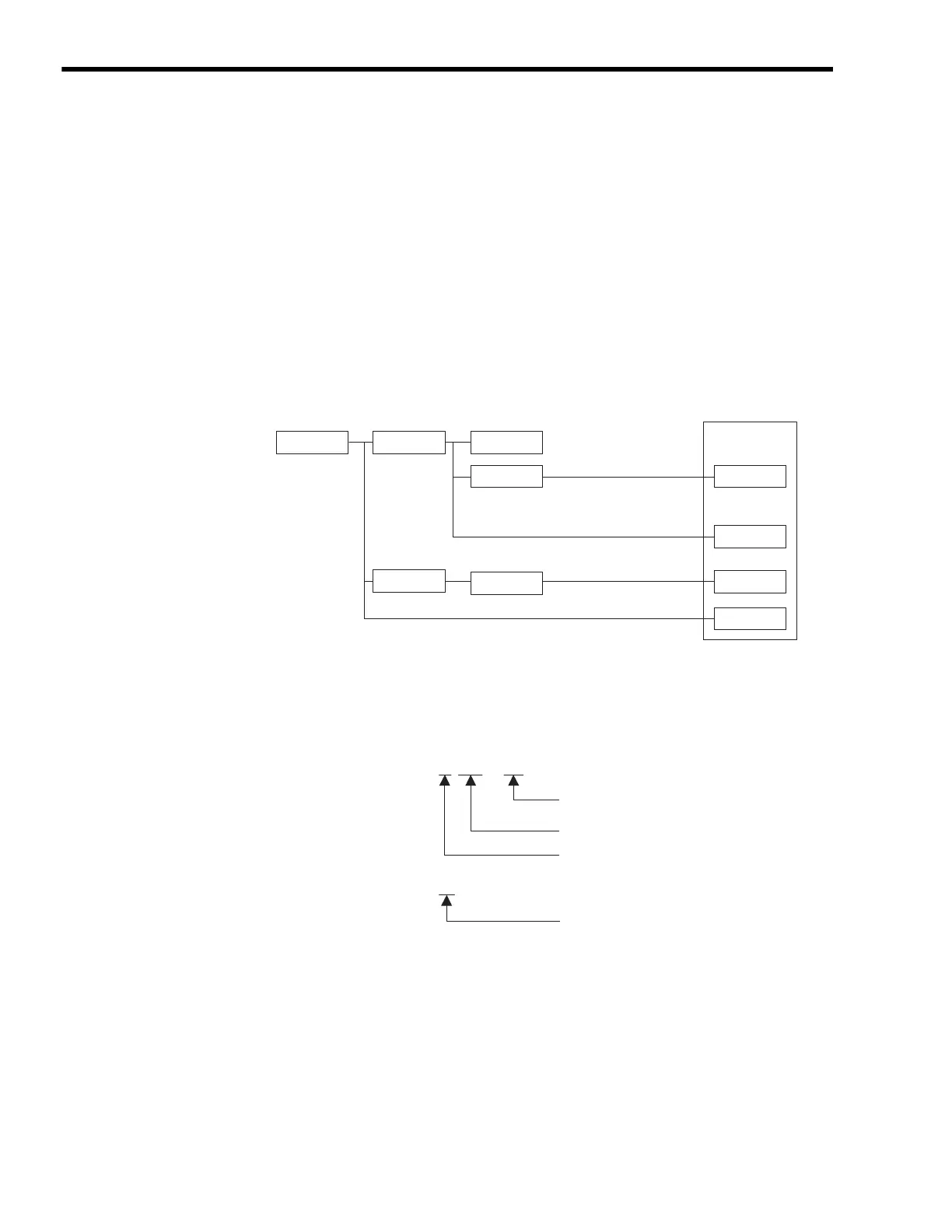

As shown in the following figure, each processing program is created from a hierarchy of parent,
child, and grandchild drawings.
The type of drawing and the parent-child-grandchild relationship can be determined from the
descriptors after “DWG.”
DWG.X DWG.X01
DWG.Xnn
DWG.X01.01
DWG.X01.02 FUNC-001
FUNC-006
FUNC-032
FUNC-064
DWG.X01.03
Parent
Drawings
Child
Drawings
Grandchild
Drawings
User Functions
Note: X means A, I, H, or L.
DWG.X YY . ZZ
DWG.X 00
:
DWG Description:
Grandchild drawing number (01 to 99)
Parent drawing type (01 to 99)
Child drawing number (01 to 99)
Operation error drawing (01 to 99)
To Next Page
