10
Utility Functions
10.2.1
Connections to
Σ
-
II
/
III
Series SGDH or SGDS SERVOPACK
10-8
10.2 Overtravel Function
The overtravel function forces the machine to stop when the moving part of the machine exceeds the
range of movement. With the MP2300, processing for stopping as a result of overtravel is achieved
by using SERVOPACK functions.
The SERVOPACK connections and parameter setting depend on the model of SERVOPACK. The
connections and parameter settings are described in the following sections.
10.2.1 Connections to
Σ
-
II
/
III
Series SGDH or SGDS SERVOPACK
The following parameters must be set to ensure the overtravel input signals are connected correctly
for the overtravel function.

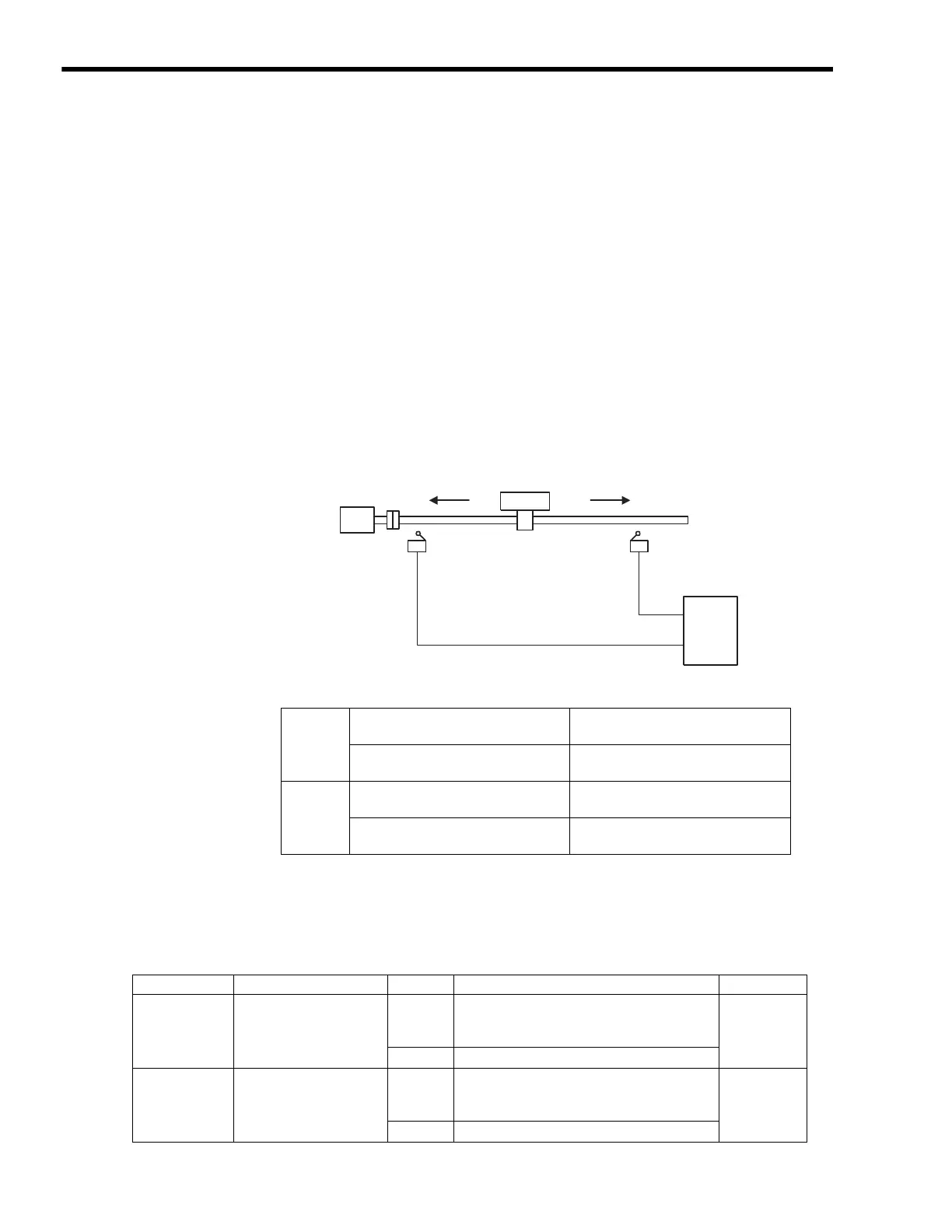

( 1 ) Overtravel Input Signal Connections
Correctly connect the input signals for the overtravel limit switches shown below to the correspond-
ing pins on the SERVOPACK CN1 or 1CN connector.
( 2 ) Parameter Settings
[ a ] Use/Not Use Overtravel Input Signals
The following parameters are used to enable and disable the overtravel input signals.

These parameters are disabled by executing a self-configuration command.
P-OT
When ON
CN1-42 (1CN-16) is low.
Forward drive enabled.
Normal operating condition
When OFF
CN1-42 (1CN-16) is high.
Forward drive disabled.
(Reverse movement possible.)
N-OT
When ON
CN1-43 (1CN-17) is low.
Reverse drive enabled.
Normal operating condition
When OFF
CN1-43 (1CN-17) is high.
Reverse drive disabled.
(Forward movement possible.)
Forward rotation
Reverse rotation
SERVOPACK
CN1-42
CN1-43
N-OT
P-OT
Servomotor
Negative
overtravel
Positive
overtravel
Parameter Name Set Value Item Default
Pn50A.3
P-OT Signal Mapping
2
(Recomm
ended)
Enables use of Positive Prohibit Input Signal
(P-OT). (Forward rotation prohibited when
open, allowed for 0 V.)
2
8
Disables the P-OT signal.
Pn50B.0
N-OT Signal Mapping
3
(Recomm
ended)
Enables use of Negative Prohibit Input Signal
(N-OT). (Reverse rotation prohibited when
open, allowed for 0 V.)
3
8
Disables the N-OT signal.
To Next Page
