B.1
System Service Registers
B-3
( 3 ) DWG.L Only

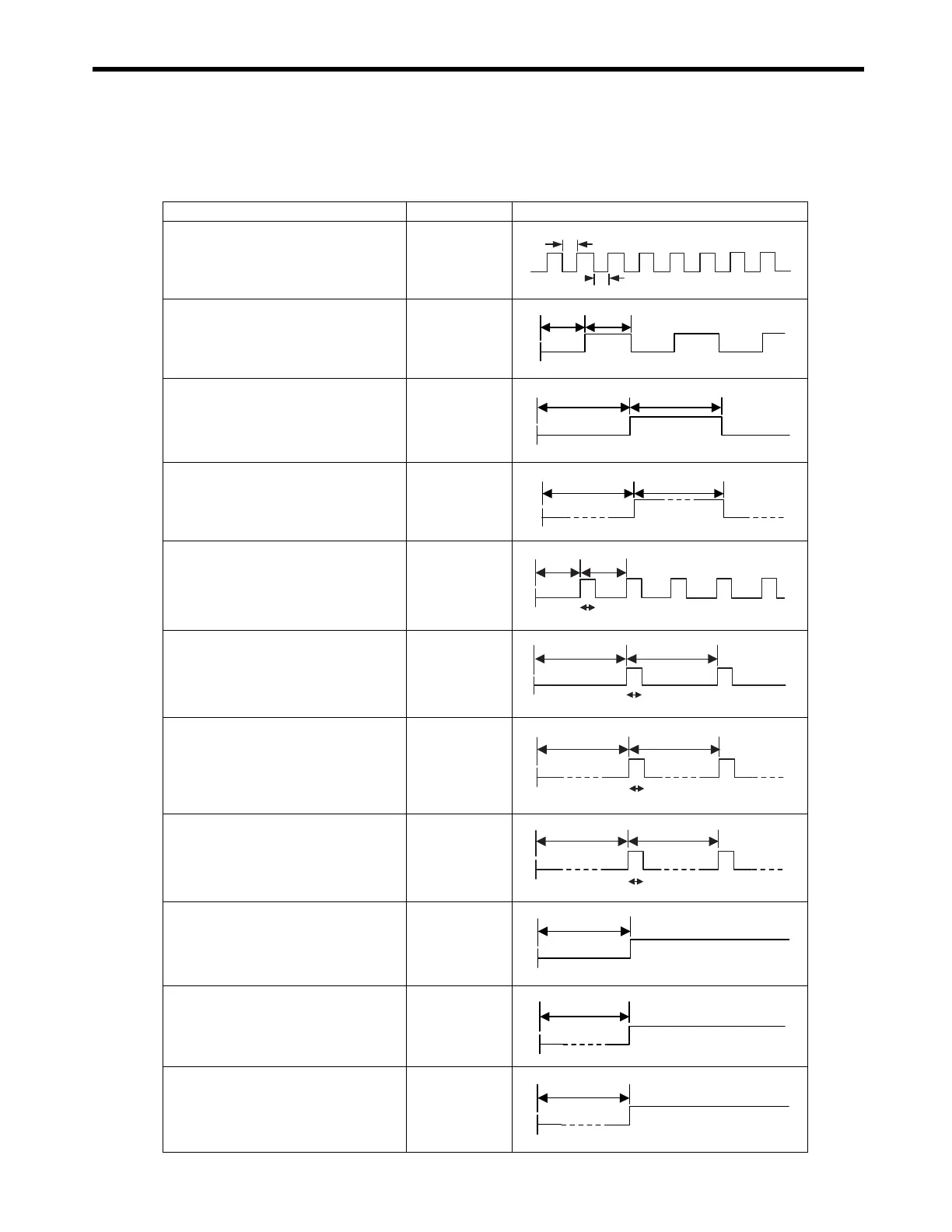

The following relays are reset at the start of the low-speed scan.
Name Register No. Remarks
One-scan Flicker Relay SB000030
0.5-s Flicker Relay SB000031
1.0-s Flicker Relay SB000032
2.0-s Flicker Relay SB000033
0.5-s Sampling Relay SB000034
1.0-s Sampling Relay SB000035
2.0-s Sampling Relay SB000036
60.0-s Sampling Relay SB000037
1.0 s After Start of Scan Relay SB000038
2.0 s After Start of Scan Relay SB000039
5.0 s After Start of Scan Relay SB00003A
1 scan
1 scan
0.5s
0.5s
1.0s 1.0s
2.0s 2.0s
0.5s 0.5s
1 scan
1.0s 1.0s
1 scan
1 scan
2.0s 2.0s
1 scan
60.0s 60.0s
1.0s
2.0s
5.0s
