2.2
Checking Sample Program Operation
2-37
( 2 ) Displaying the H02 Drawing Tuning Panel

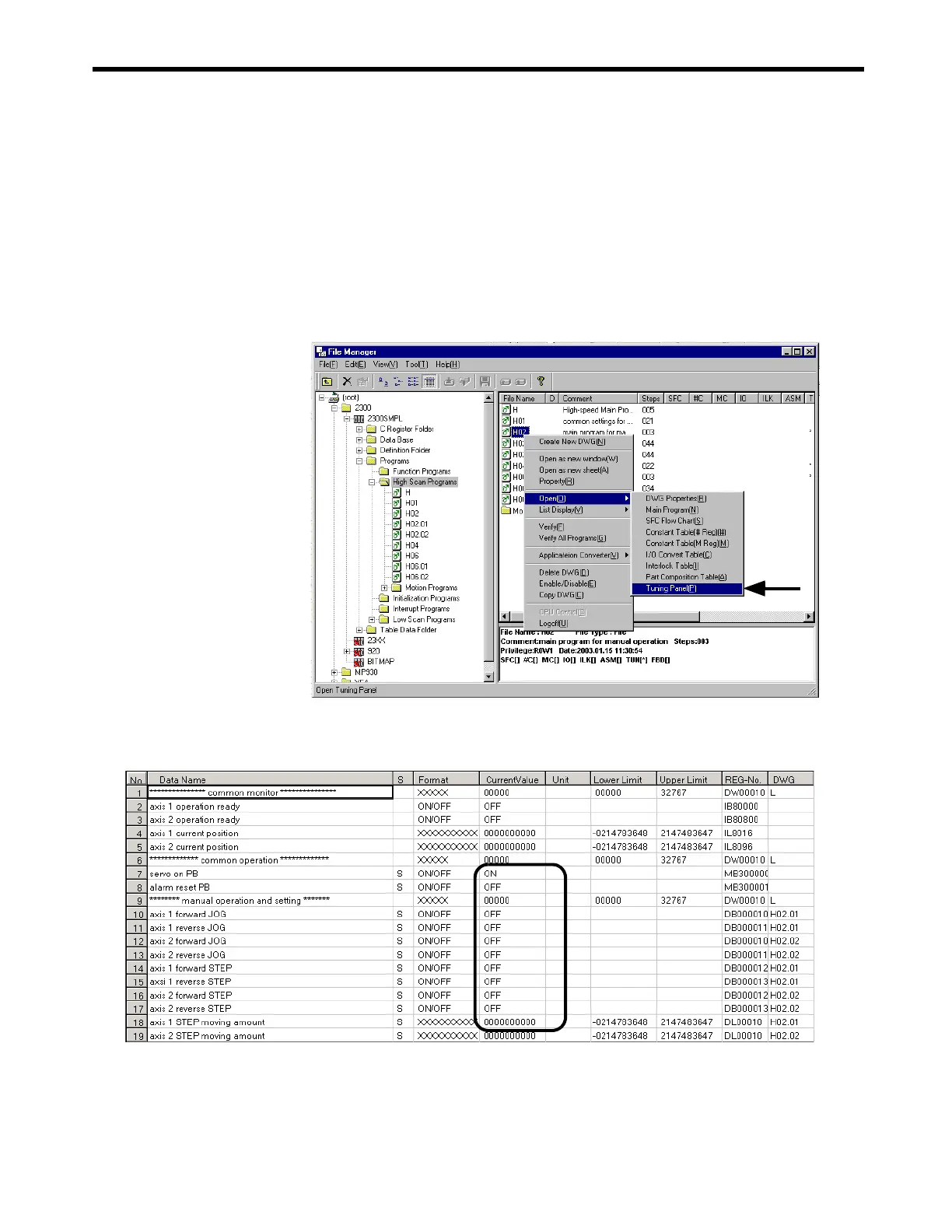

Use the following procedure to display the H02 Drawing Tuning Panel.
1.
Log on online, open the Programs folder, and then open the High Scan Programs
folder in the PLC folder where the sample programs are saved in the File Manager
Window.
2.
Right-click the H02 Drawing in the High Scan Programs folder and select Open -
Tuning Panel from the pop-up menu that is displayed.
Engineering Manager will start and the following Tuning Panel Window for the H02 Drawing
will be displayed.
Model system operation can be controlled by writing the current values for Common Operation
and Manual Operation and Setting from the Tuning Panel.
To Next Page
