Zebra VC8300 User Manual

Accessories and Mounting
127
Attaching MT4200 to VC8300
To attach the MT4200 Quick Release Mount to the VC8300:
1. Line up the MT4200 mounting bracket holes with the holes on the sides of the VC8300 (two on each side).
2. Place the spring lock washer onto the hex head screw.
3. Place the flat washer onto the hex head screw (on top of the washer spring lock).
4. Screw the bracket onto the VC8300 (total of four). Torque to 34.7 in-lbs.

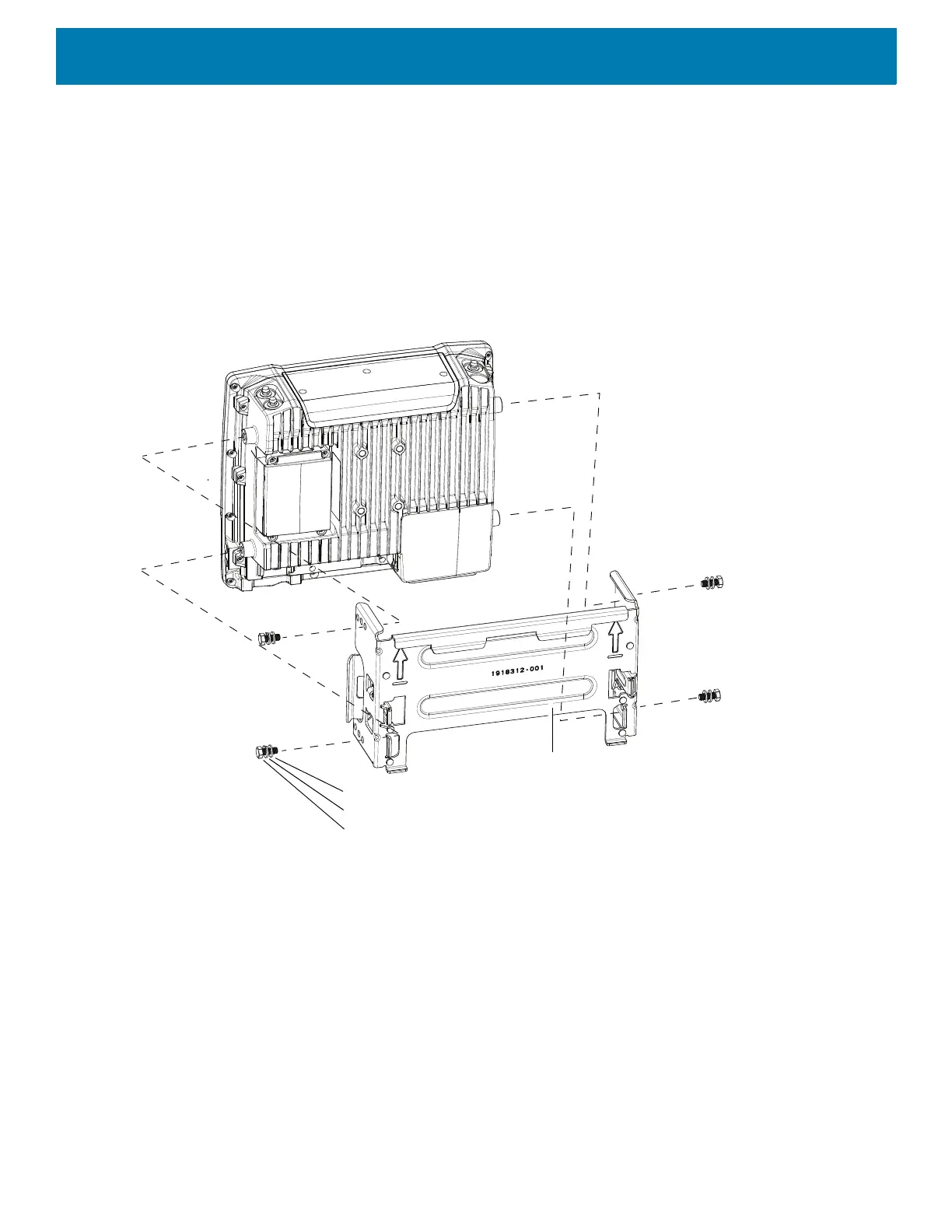

Figure 93 VC8300 and MT4200 Assembly
Hex Head Screw M6X12
Washer Spring Lock
Washer Flat
MT4200
Mounting Bracket
(Back View)

Zebra VC8300 Specifications

General

Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Operating system version	8.1
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Speakers	Mono
RS-232 input ports	2
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Operating temperature (T-T)	-30 - 50 °C
Battery capacity	- mAh
Product color	Black
Keyboard layout	QWERTY
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	90 mm
Width	276 mm
Height	238 mm
Weight	3700 g
