Zebra VC8300 User Manual

Apps
67
Diagnostic Tool
The Diagnostic Tool is a utility that determines the health of the VC8300. Use the Diagnostic Tool to
troubleshooting the device and determine issues.
1. Swipe up from the bottom of the Home screen and touch .

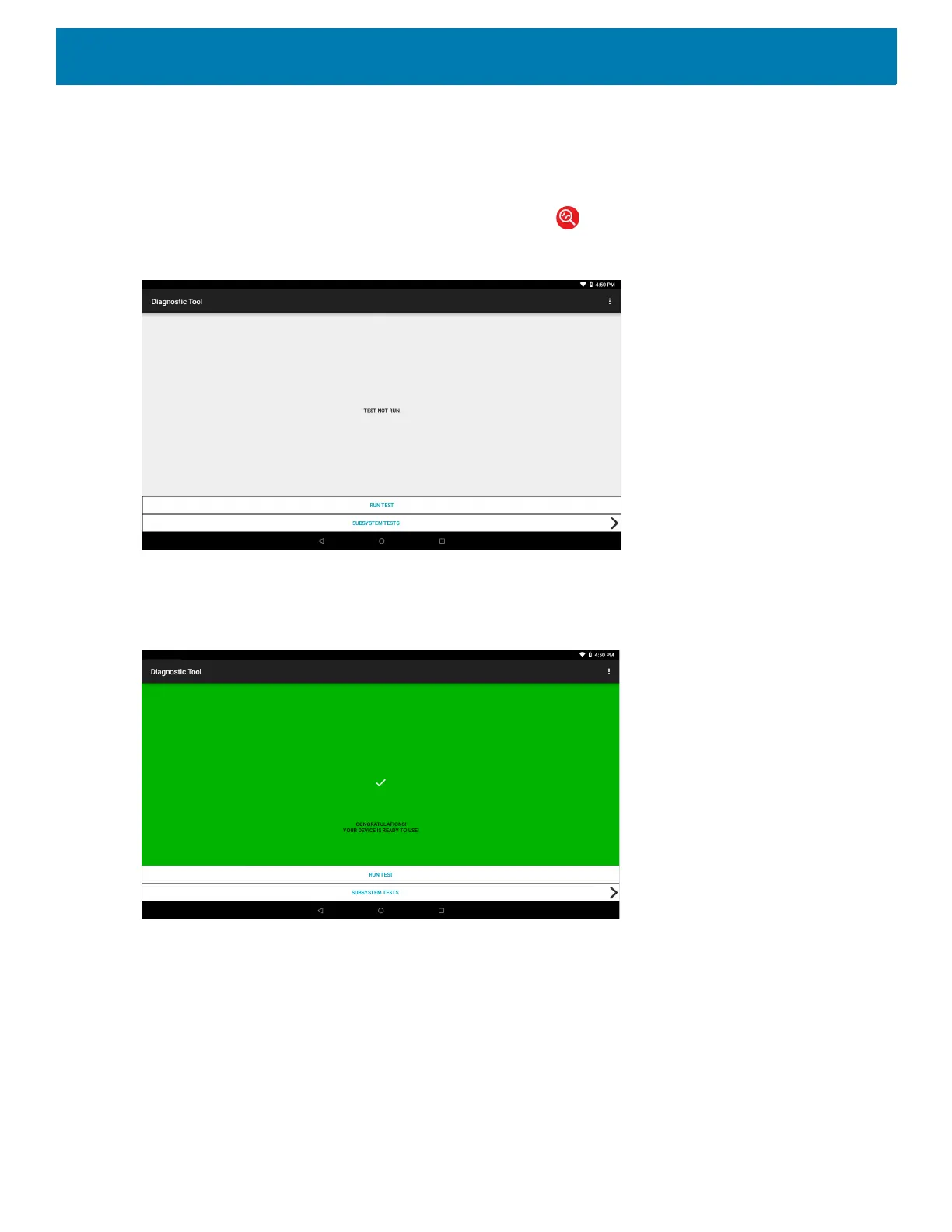

Figure 42 Diagnostic Tool
2. Touch Run Test. The app tests all enabled subsystems (by default only the Battery and System tests are
enabled). See Settings on page 69 to enable subsystem tests.
Figure 43 Test Passed Screen

Zebra VC8300 Specifications

General

Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Operating system version	8.1
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Speakers	Mono
RS-232 input ports	2
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Operating temperature (T-T)	-30 - 50 °C
Battery capacity	- mAh
Product color	Black
Keyboard layout	QWERTY
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	90 mm
Width	276 mm
Height	238 mm
Weight	3700 g
