Zebra VC8300 User Manual

DataWedge
133
Profile Configuration
To configure the Profile0 or a user-created profile, touch the profile name.

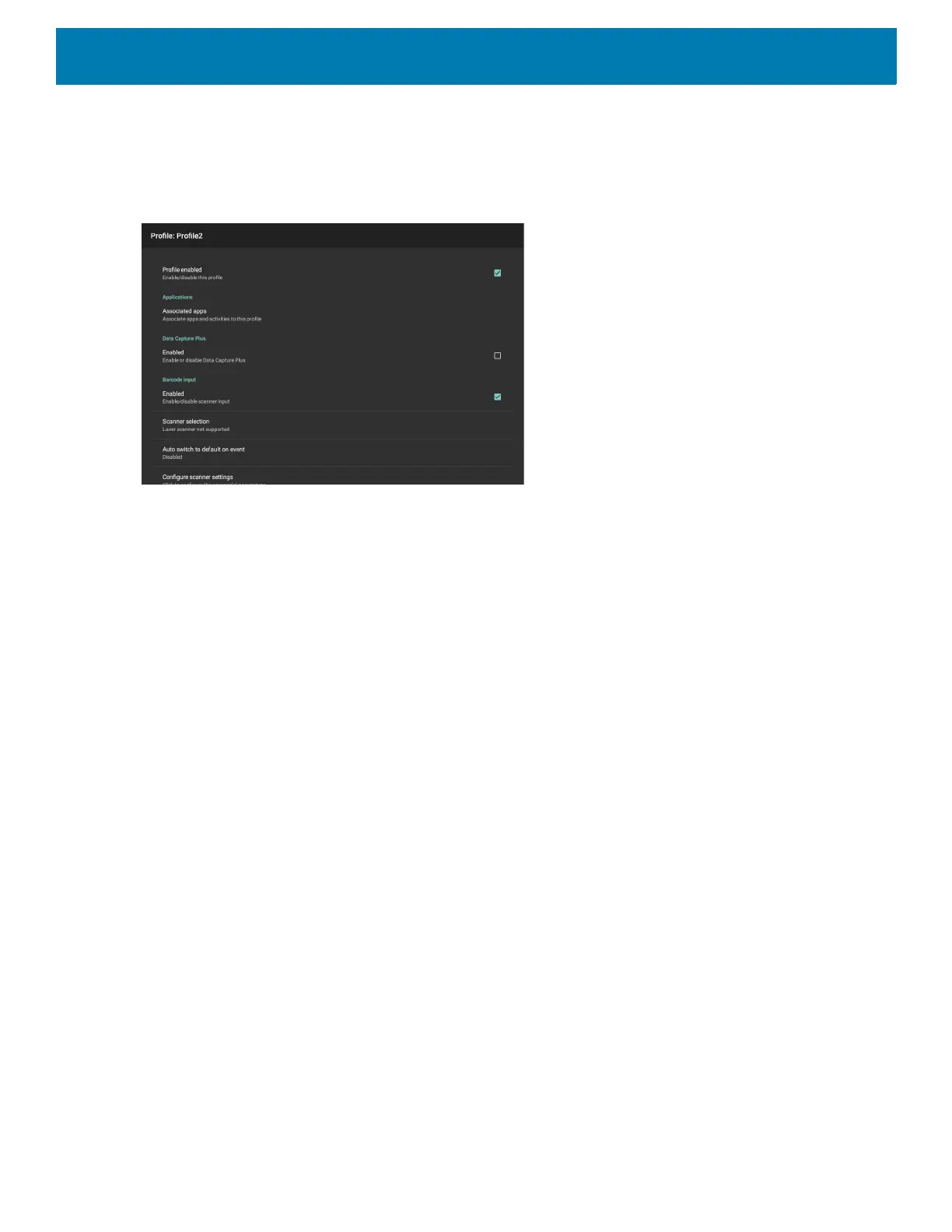

Figure 99 Profile Configuration Screen
The configuration screen lists the following sections:
• Profile enabled
• Applications
• Data Capture Plus (DCP)
• Barcode Input
• Serial port input from Serial Port 1
• Serial port input from Serial Port 2
• Voice input
• Keystroke output
• Intent Output
• IP Output.
Associating Applications
Use Applications option to associate applications with this profile. User created profiles should be associated
with one or more applications and its activities.
1. Touch Associated apps. A list of applications/activities associated with the profile displays. Initially the list
does not contain any applications/activities.

Zebra VC8300 Specifications

General

Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Operating system version	8.1
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Speakers	Mono
RS-232 input ports	2
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Operating temperature (T-T)	-30 - 50 °C
Battery capacity	- mAh
Product color	Black
Keyboard layout	QWERTY
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	90 mm
Width	276 mm
Height	238 mm
Weight	3700 g
