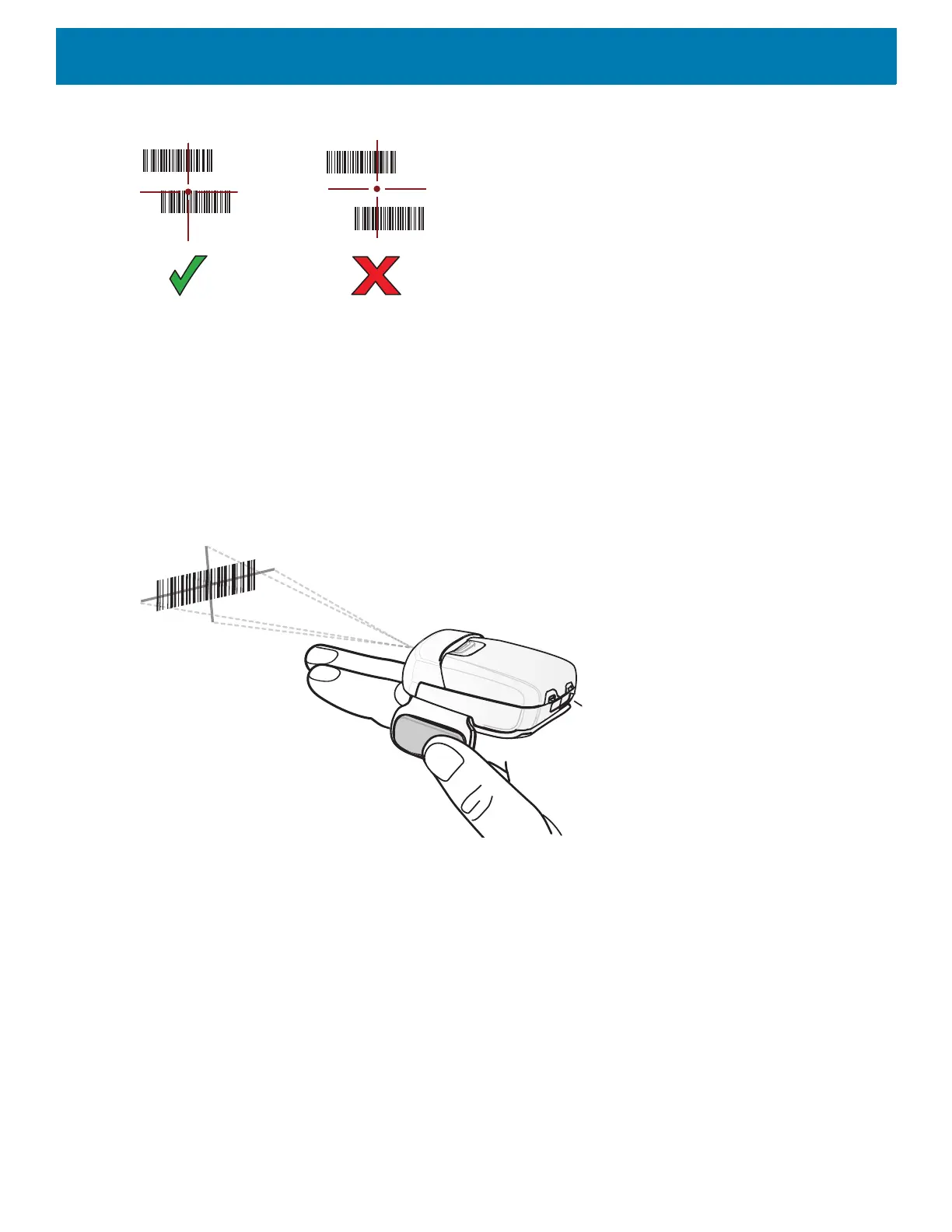

Figure 64 Pick List Mode with Multiple barcodes in Aiming Pattern
4. The captured data appears in the text field.
Barcode Capture with RS507/RS507x Hands-Free Imager
Pair the RS507/RS507x with the VC8300. See Pairing the RS507/RS507x/RS6000 Hands-Free Imager on
page 99
for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507/RS507x at a barcode.
Figure 65 barcode Scanning with RS507/RS507x
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by
the cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting
conditions.
The RS507/RS507x LEDs light green, a beep sounds to indicate the barcode was decoded successfully.
Note that when the RS507/RS507x is in Pick List Mode, the RS507/RS507x does not decode the barcode
until the center of the crosshair touches the barcode.
