Zebra VC8300 User Manual

DataWedge
167

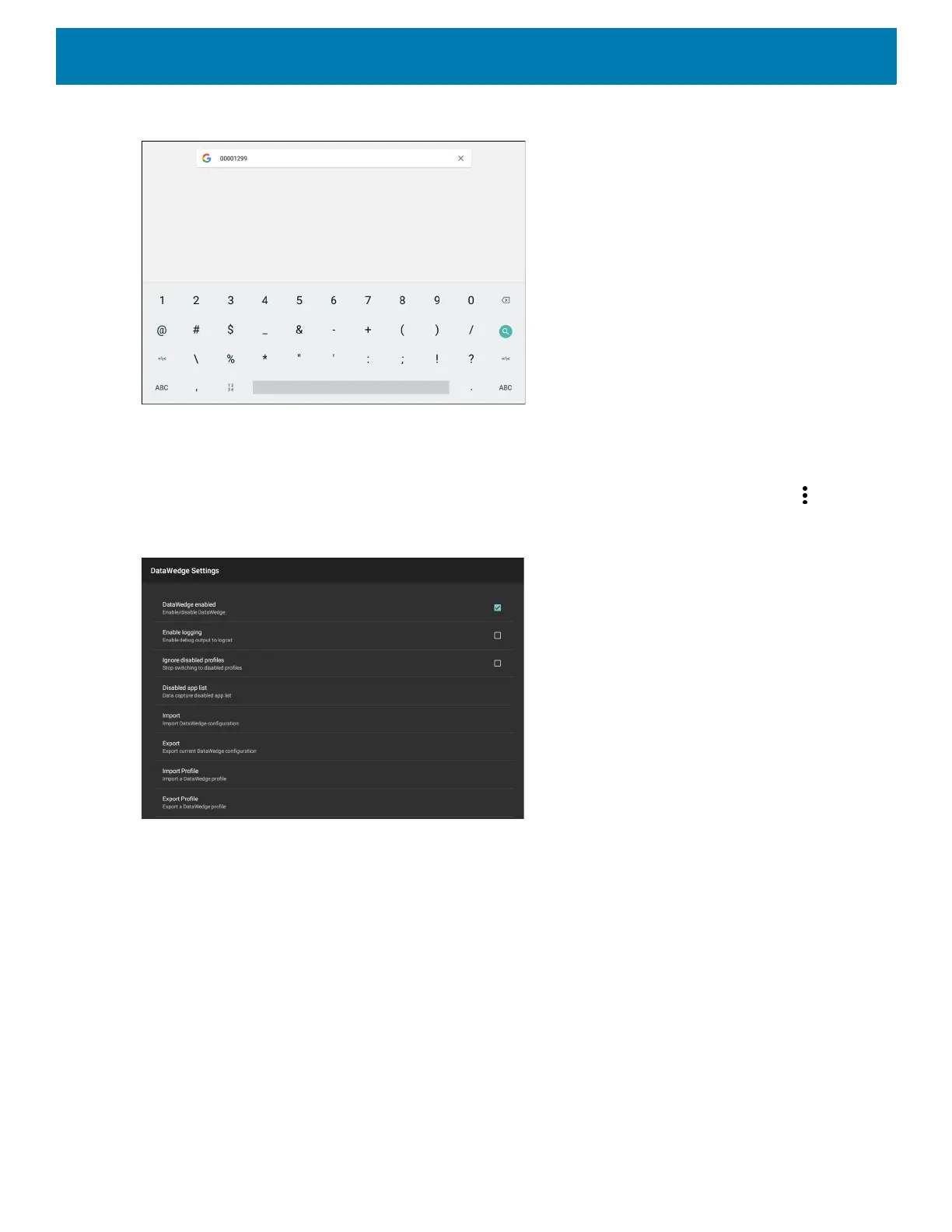

Figure 119 Formatted Data
DataWedge Settings
The DataWedge Settings screen provides access to general, non-profile related options. Touch > Settings.
Figure 120 DataWedge Settings Window
• DataWedge enabled - Enables or disables DataWedge. To disable DataWedge uncheck this option
(default - enabled).
• Enable logging - Enables or disables debug output file to logcat. To enable logging check this option
(default - disabled).
• Ignore disabled profiles - Prevents DataWedge from switching to a Profile that is not enabled. In such
instances, the Profile switch is ignored and the current Profile remains active Profile0 must be disabled to
use this feature (default - disabled).
• Disable app list - Disables scanning functions for selected applications or activities.
• Import - Allows import of a DataWedge configuration file. The imported configuration replaces the current
configuration.
• Export - Allows export of the current DataWedge configuration.
• Import Profile - Allows import of a DataWedge profile file.
• Export Profile - Allows export of a DataWedge profile.

Zebra VC8300 Specifications

General

Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Operating system version	8.1
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Speakers	Mono
RS-232 input ports	2
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Operating temperature (T-T)	-30 - 50 °C
Battery capacity	- mAh
Product color	Black
Keyboard layout	QWERTY
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	90 mm
Width	276 mm
Height	238 mm
Weight	3700 g
