Zebra VC8300 - Drill Hole Dimensions

Specifications
222
Drill Hole Dimensions

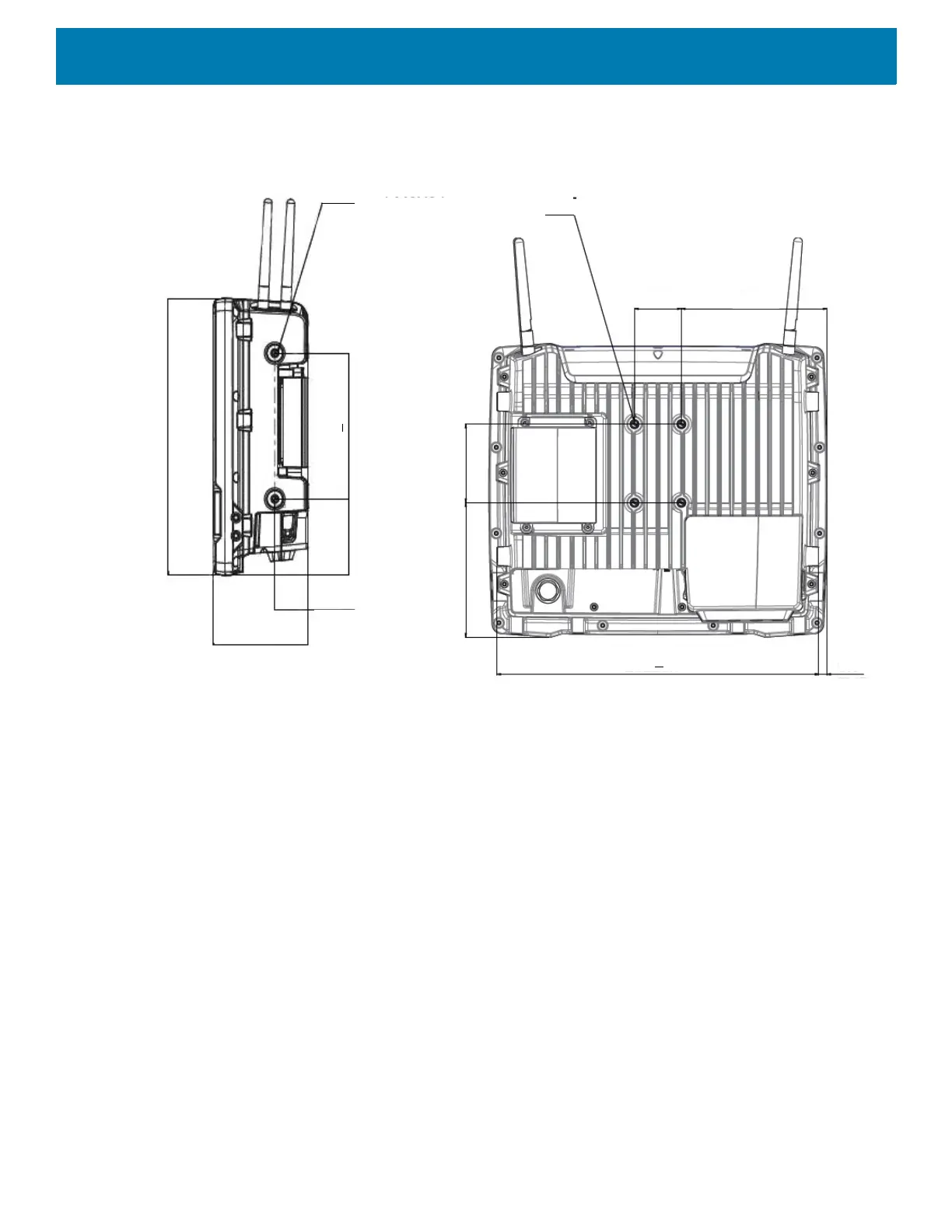

Figure 145 Drill Hole Dimensions
Back View
THIS AND
FAR SIDE
2PL
THIS AND
FAR SIDE
2PL
THIS AND
FAR SIDE
2PL
237.4
88
31
65.4
125+0.25
38.1 118.5
262+0.7
63.5108.7
6.6
TYP
Side View
(4) M6X6 HELICOIL INSERT
HOLE DEPTH: 8
