Zebra VC8300 User Manual

DataWedge
135

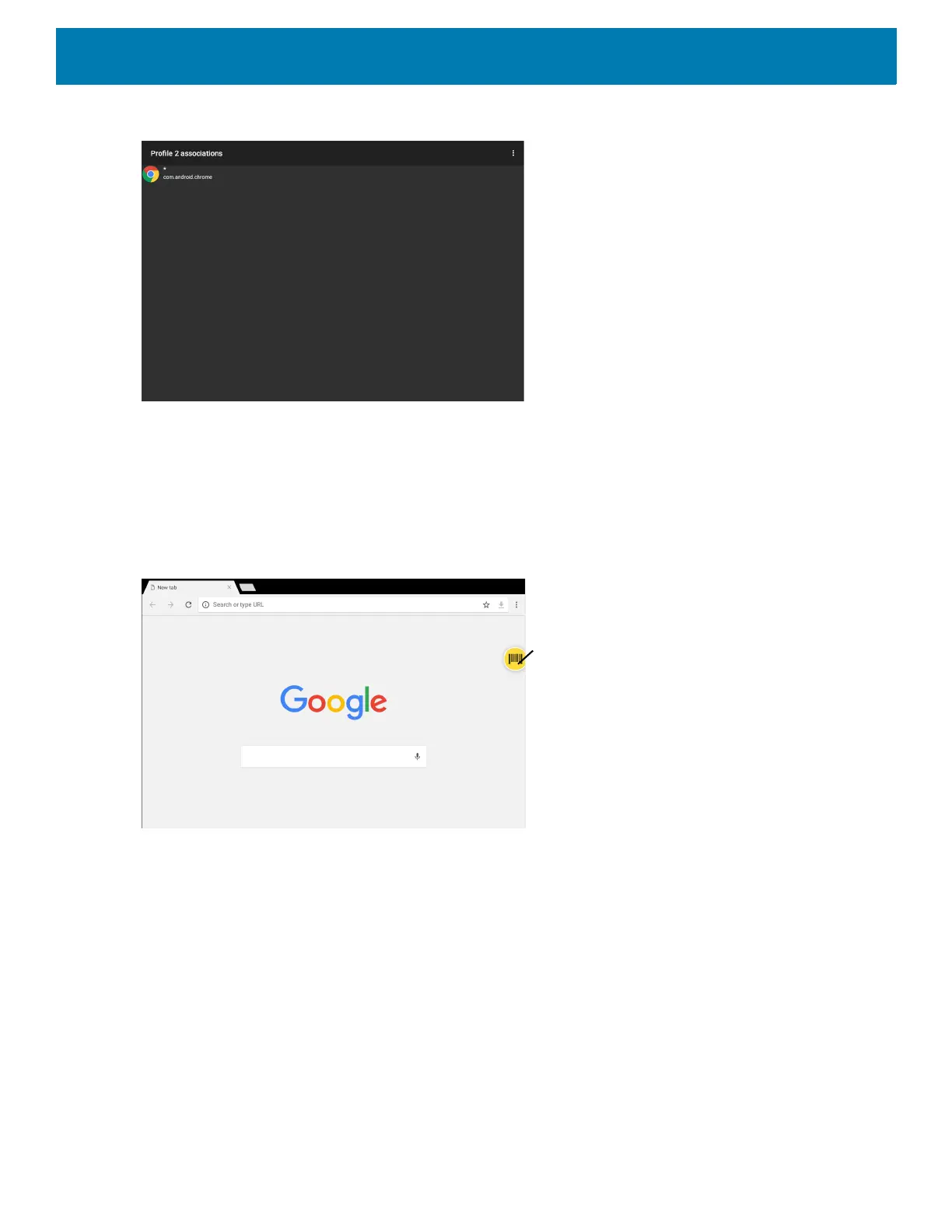

Figure 102 Selected Application/Activity
Data Capture Plus
Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching a
designated part of the screen. A variable screen overlay acts like a scan button.
Figure 103 Minimized Data Capture Panel
The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen
once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays seven
additional configuration parameters.
DCP
Button

Zebra VC8300 Specifications

General

Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Operating system version	8.1
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Speakers	Mono
RS-232 input ports	2
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Operating temperature (T-T)	-30 - 50 °C
Battery capacity	- mAh
Product color	Black
Keyboard layout	QWERTY
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	90 mm
Width	276 mm
Height	238 mm
Weight	3700 g
